Sony HCD-VX555 - Printed Wiring Board Panel Section

3636
HCD-VX555/VX555J

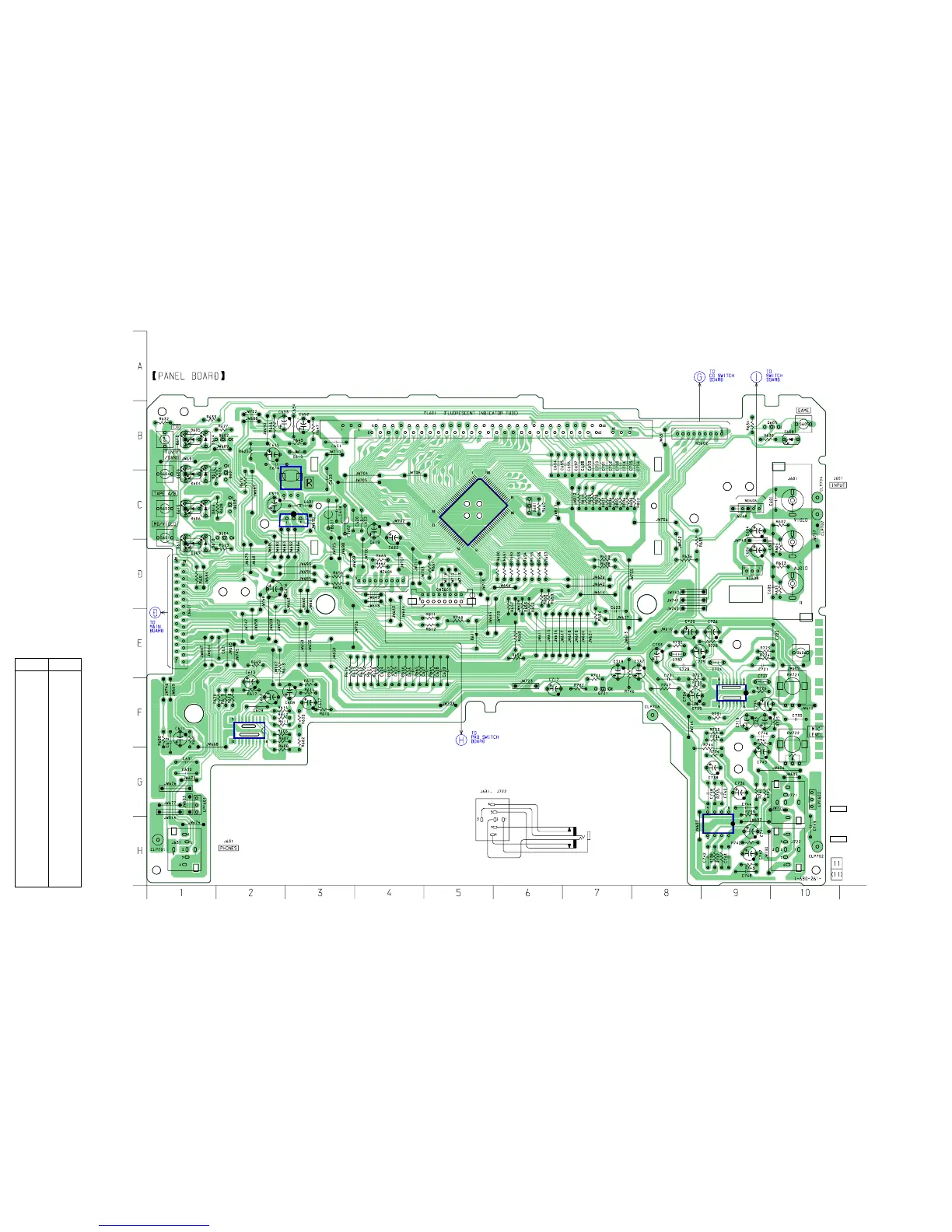

6-12. PRINTED WIRING BOARD – PANEL SECTION –
(Page 38)
(Page 27)
(Page 50)(Page 38)
IC603
IC616
IC601
IC721
IC602
IC722
MIC 1
J 721
MIC 2
J 722
Ref. No. Location
D608 B-10
D609 C-1
D610 B-3
D611 E-5
D612 C-1
D613 B-1
D614 B-1
D615 C-1
D616 C-1
D617 D-1
D618 D-1
D705 F-8
IC601 C-5
IC602 F-2
IC603 C-3
IC616 C-3
IC721 F-9
IC722 H-9
Q601 C-2
Q602 B-2
Q603 C-2
Q604 C-2
Q605 B-9
Q721 F-7
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
