HCD-VX555/VX555J
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

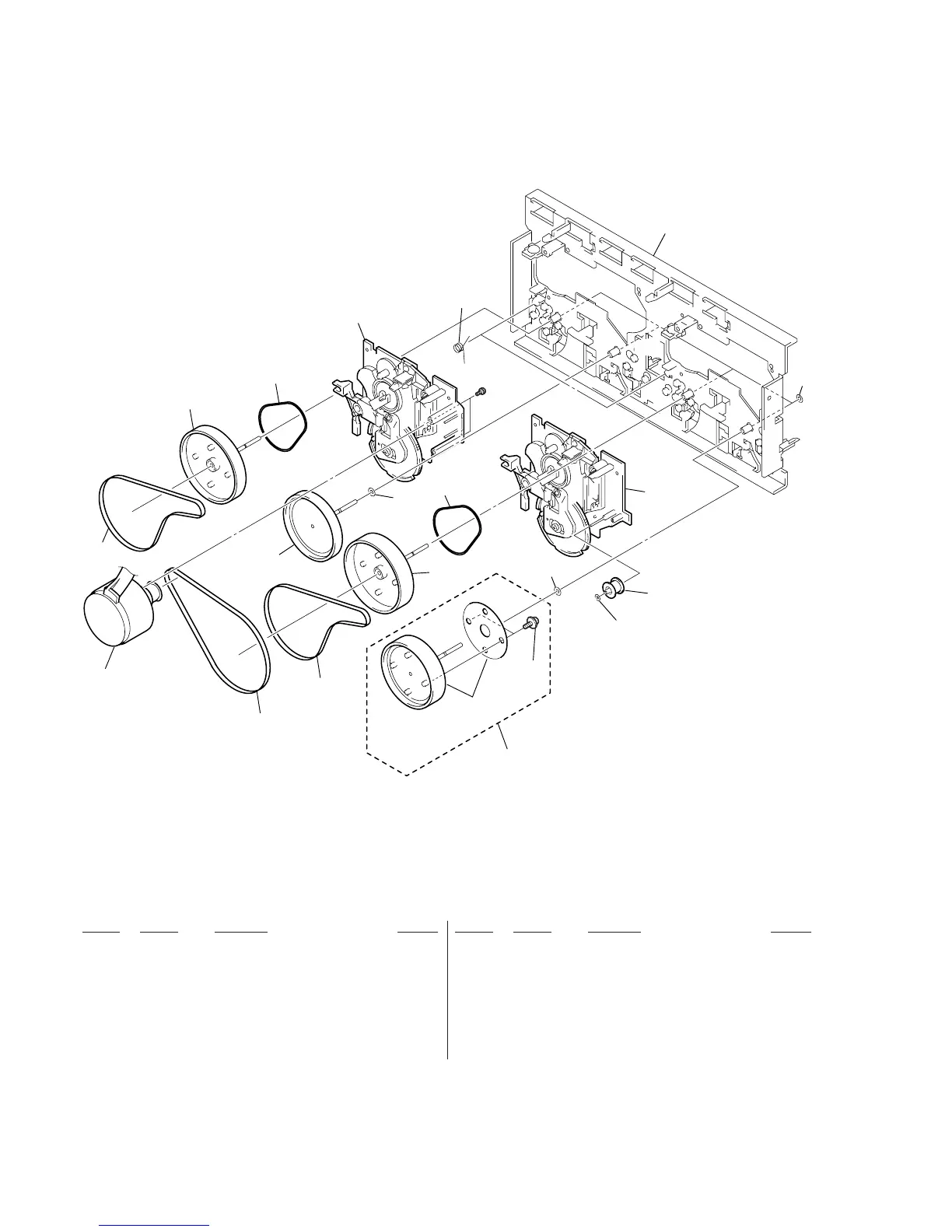

7-7. TAPE MECHANISM DECK SECTION-4
(TCM-230PWR41C) (2/2)
306
312
311
314
316
311
not supplied
301
301
302
305
303
304
307
315
307
313
M901
not
supplied
not supplied
not supplied
#1
301 3-041-946-01 BELT (CAPSTAN B)
302 4-227-239-01 BELT (CAPSTAN C)
303 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
304 X-3378-250-1 FLYWHEEL (B-REV) ASSY
305 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
306 X-3378-248-1 FLYWHEEL (A-REV) ASSY
307 3-041-947-01 BELT (FR)
311 7-623-921-01 RING, RETAINING, CAPSTAN
312 3-318-203-62 SCREW (B1.7X4), TAPPING
313 3-019-208-01 WASHER, STOPPER
314 3-040-580-11 PULLEY (TENSION)
315 4-228-450-11 SPRING (REVERS SLIDER), TORSION
316 3-017-407-11 WASHER (FR LEVER), STOPPER
M901 X-3378-246-1 MOTOR ASSY(CAPSTAN)
