65
HCD-VX555/VX555J
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

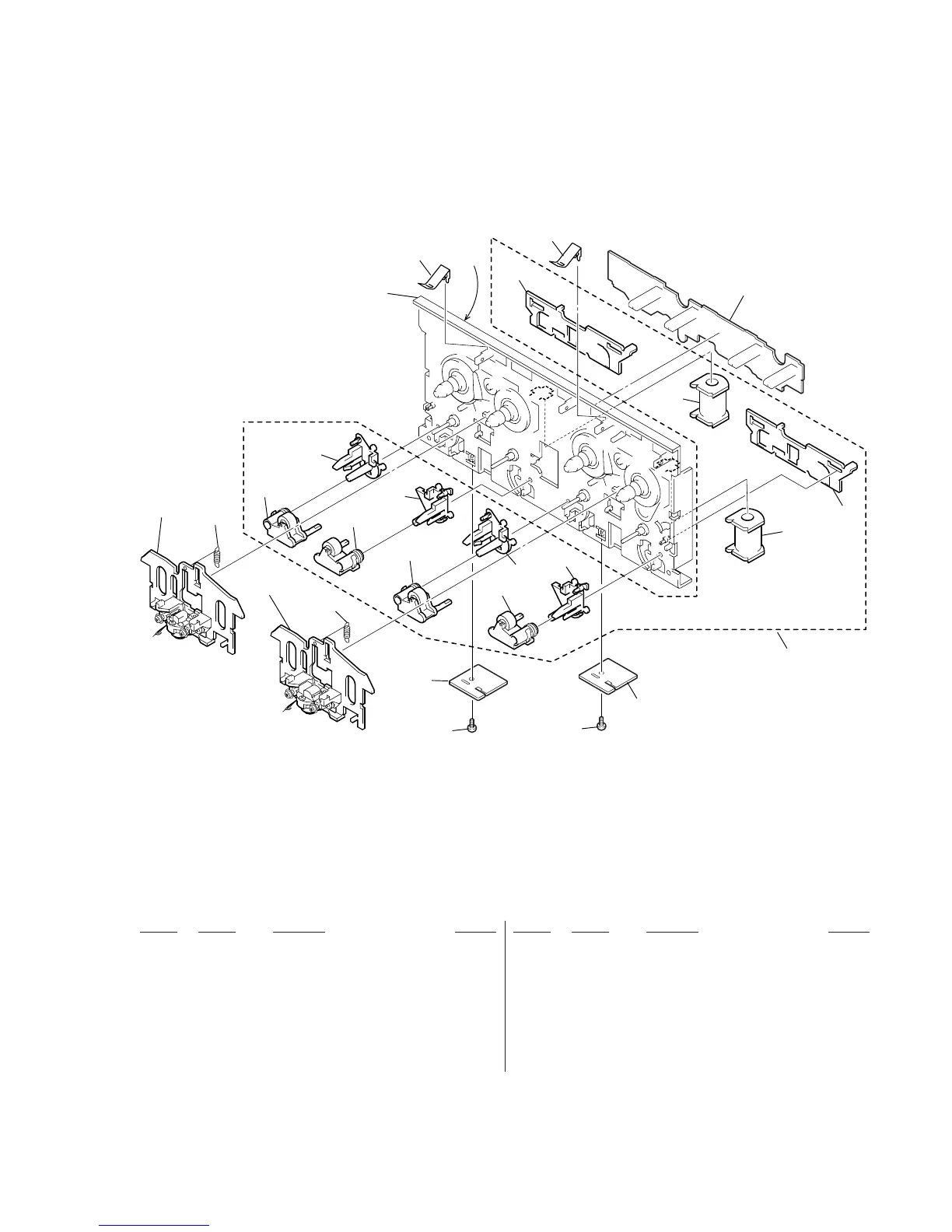

7-6. TAPE MECHANISM DECK SECTION-3
(TCM-230PWR41C) (1/2)
251
251
252
252
253
253
255
255
254
256
256
254
HRPE901
HP901
Note: Three different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
260
258
257
257
259
261
263
PM901
PM902
263
A
B
251 3-016-574-01 SPRING (HEAD), TENSION
252 3-017-366-01 BASE (PINCH LEVER REV)
253 3-017-365-01 BASE (PINCH LEVER FWD)
254 X-3374-156-1 PINCH LEVER (REV) ASSY
255 X-3374-155-1 PINCH LEVER (FWD) ASSY
256 3-016-567-01 SPRING (CASSETTE), LEAF
257 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT
258 1-676-220-11 HEAD (A) BOARD
259 1-676-221-11 HEAD (B) BOARD
260 A-2007-846-A LEAF SW BOARD, COMPLETE
261 A-2004-802-A CHASSIS ASSY
263 3-016-566-01 SLIDER, REVERSE
HP901 A-2004-765-A BASE (A) ASSY, HEAD
HRPE901 A-2004-766-A BASE (B) ASSY, HEAD
PM901 1-454-887-11 PLUNGER
PM902 1-454-887-11 PLUNGER
• The thing that a part A curves is TCM-230PWR41C and the paper that shows the mechanism name is attached to the B portion.
To Next Page
