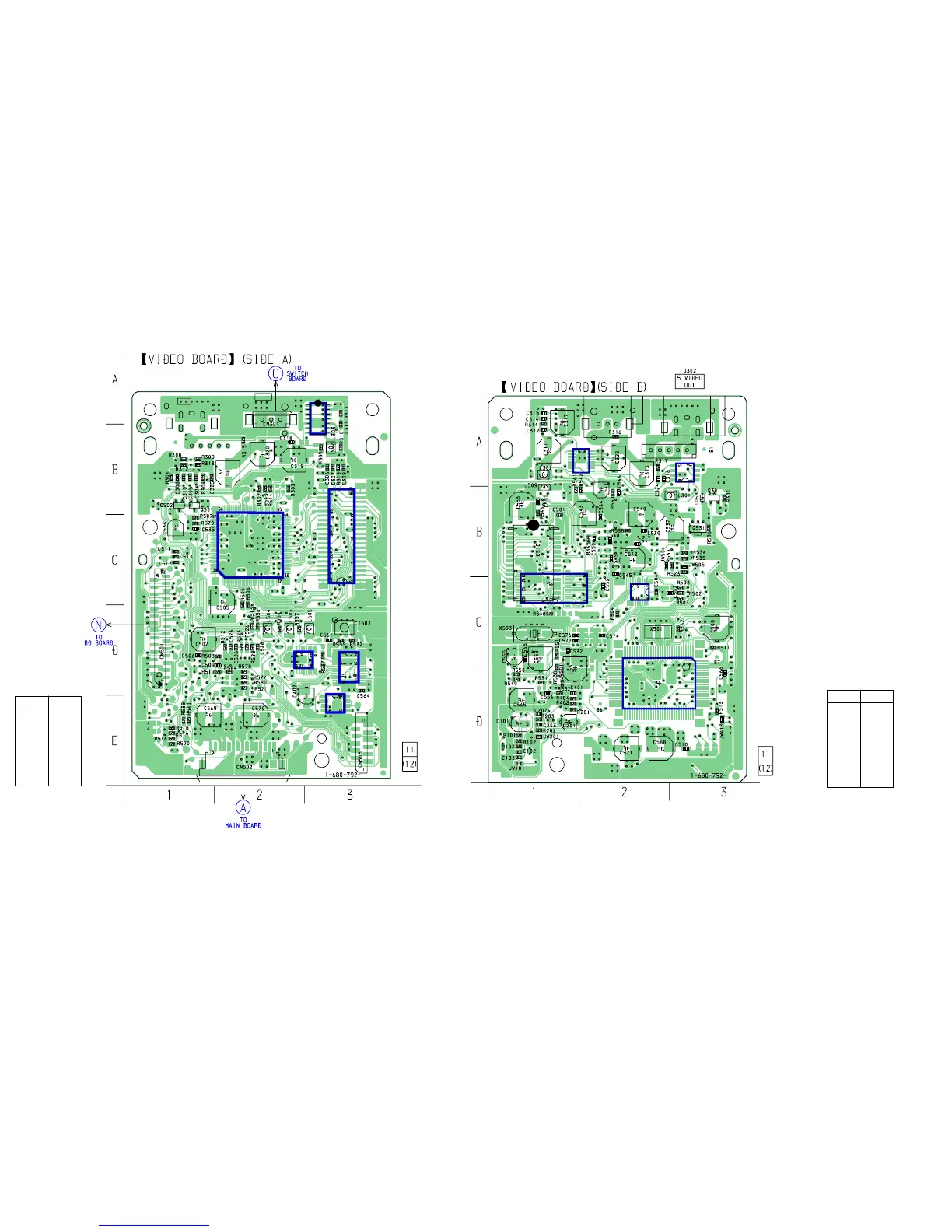

6-20. PRINTED WIRING BOARD – VIDEO SECTION –
IC 101
IC 504
IC 505
IC 509
IC 507
IC 303
(Page 32)
(Page 27)
(Page 50)
IC 304
IC 501
IC 506
IC 502
IC 302
Ref. No. Location
D501 B-3
IC302 A-3
IC304 A-1
IC501 C-2
IC502 D-2
IC506 C-1
Q301 B-3
Q531 B-3
• Semiconductor
Location
Ref. No. Location
IC101 E-3
IC303 A-3
IC504 D-3
IC505 C-2
IC507 C-7
IC509 D-3
Q501 B-1
Q502 B-1
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
