Sony HCD-VX555 - Printed Wiring Board Panel SW Section

3838
HCD-VX555/VX555J

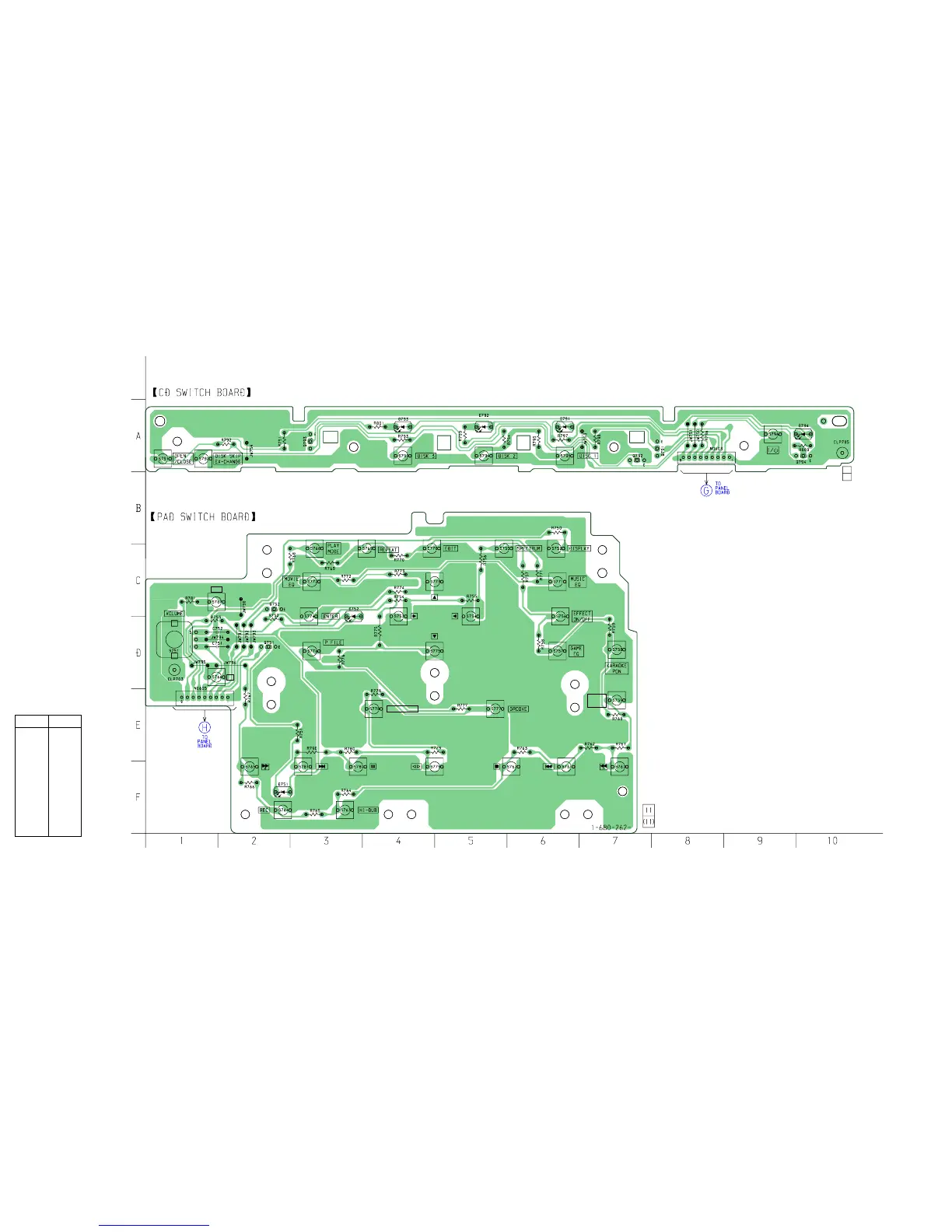

6-14. PRINTED WIRING BOARD – PANEL SW SECTION –
(Page 36)
(Page 36)
11
(11)
1-680-263-
REW
FF
CINEMA SPACE
EFFECT
Ref. No. Location
D751 F-2
D752 C-3
D791 A-6
D792 A-5
D793 A-4
D794 A-10
Q751 D-2
Q752 C-2
Q791 A-8
Q792 A-7
Q793 A-3
Q794 A-10
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
