13

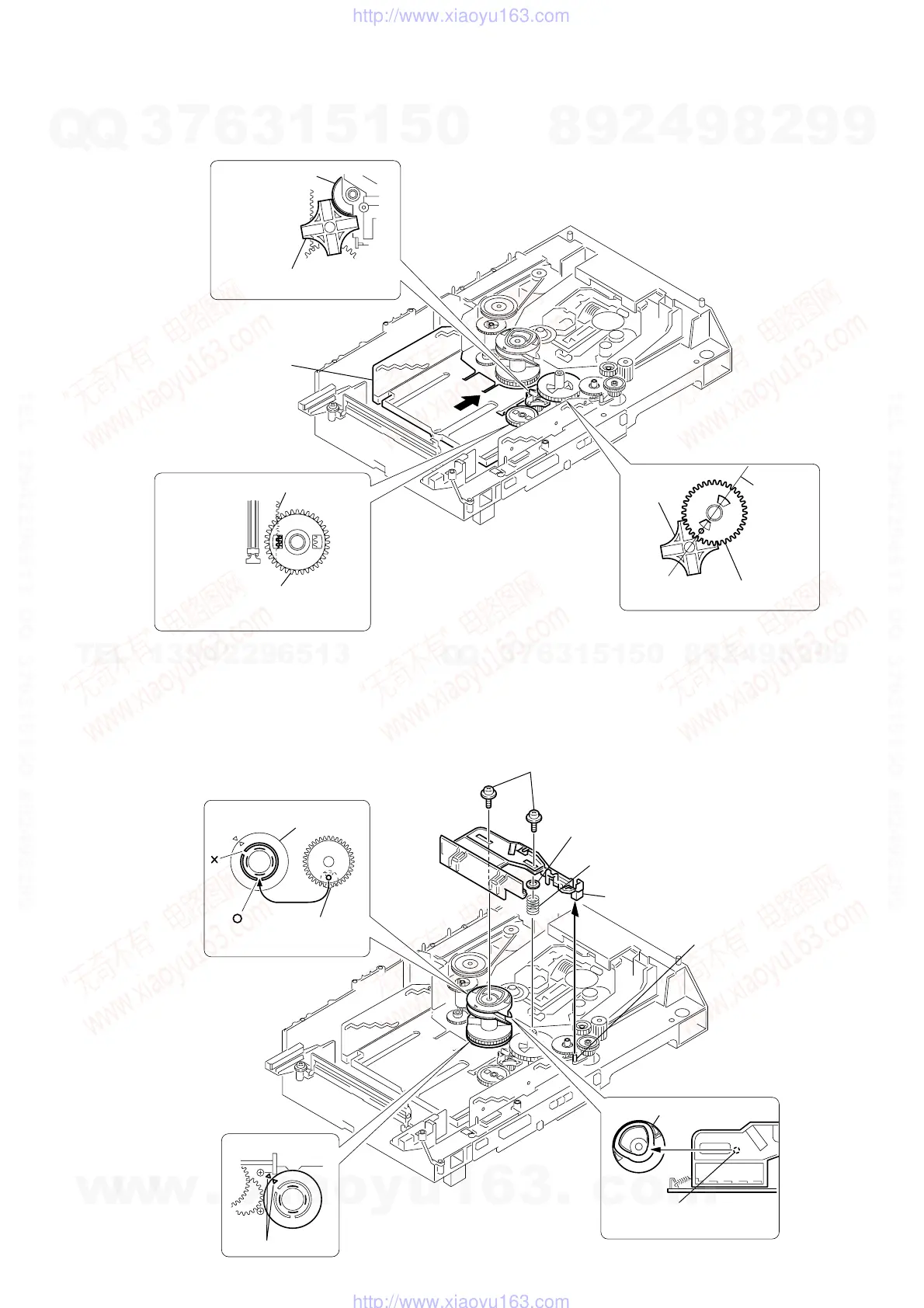

3-11. GEARS INSTALLATION
3-12. SLIDER (SELECTION) INSTALLATION
1 Slide the slider (U/D)
fully in the arrow
direction.
3 gear (gear B)
2 gear (U/D slider)
4 gear (gear A)
Adjust the gear (gear B) with the
portion A as shown.
Adjust the gear so that it meshes with
the bottom tooth of slider (U/D)gear,
as shown.
portion A
slider (U/D) gear
linearly
gear
(gear B)
Adjust so as to be aligned with
gear (B) linearly,as shown.
portion A
2 gear (chuking)
6 two screws
(PTPWH M2.6)
5 washer
3 convex portion of
slider (selection)
4 compression spring
7 Insert the slider (selection)
into the portion A.
1 rotary encoder
rotary encoder
Align with the slot of
rotary encoder.
align marking
gear (chuking)
Insert a convex portion into
a groove of gear (chuking).
