Sony HCD-VZ0 - Printed Wiring Boards - Panel Section; Panel Board Layout

HCD-VZ10
46
46

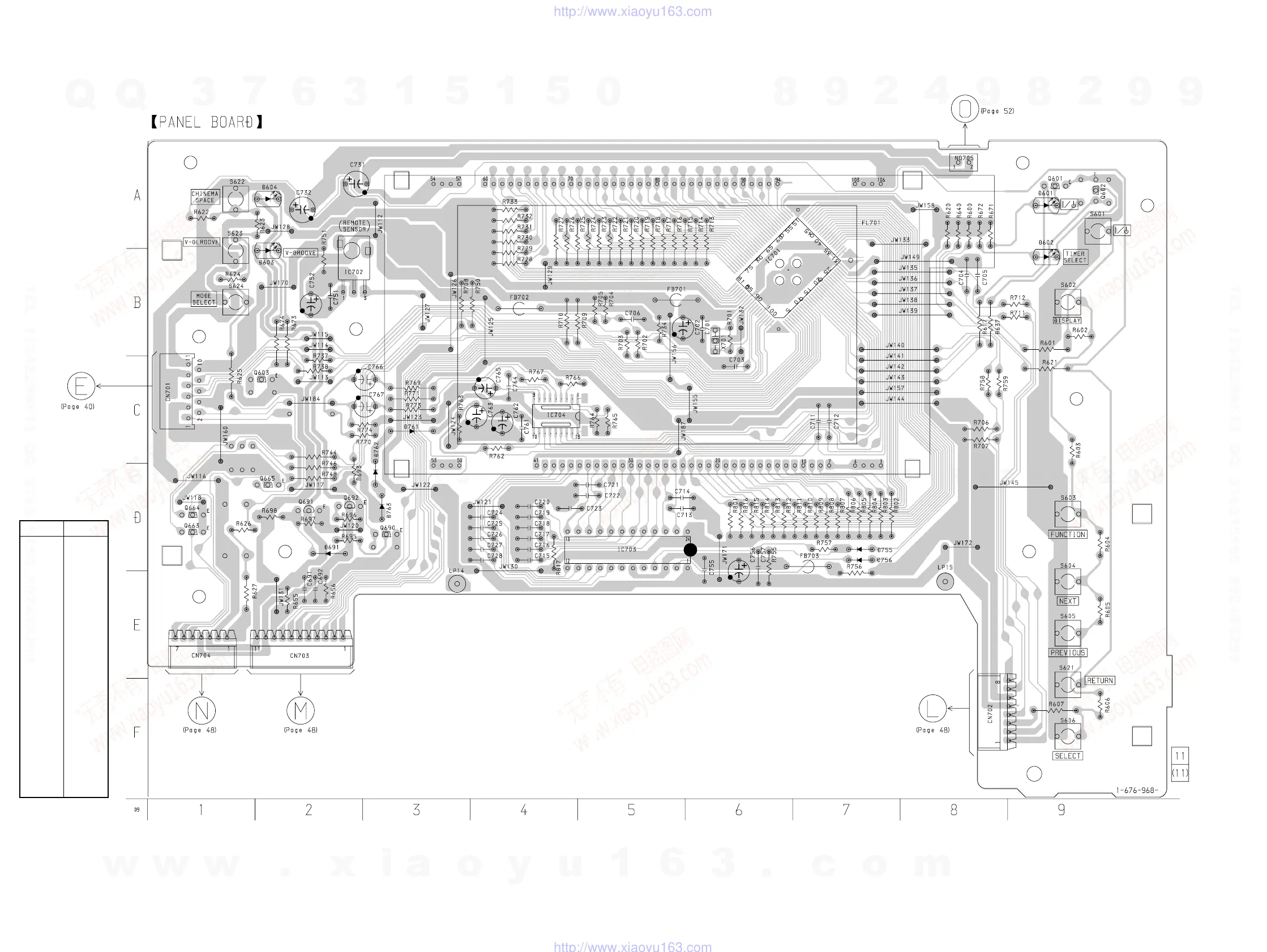

7-17. PRINTED WIRING BOARD – PANEL SECTION – • See page 25 for Circuit Boards Location.
• Semiconductor
Location
D601 A-9
D602 A-9
D603 B-2
D604 A-2
D691 D-2
D755 D-7
D756 D-7
D761 C-3
D762 D-3
D763 D-3
IC701 A-6
IC702 A-2
IC703 D-5
IC704 C-4
Q601 A-9
Q602 A-9
Q603 C-2
Q663 D-1
Q664 D-1
Q665 D-2
Q690 D-3
Q691 D-2
Q692 D-2
Ref. No. Location
