Sony HCD-VZ0 - Printed Wiring Boards - Video Section; Video Board (Side A) Layout; Video Board (Side B) Layout

HCD-VZ10
34
34

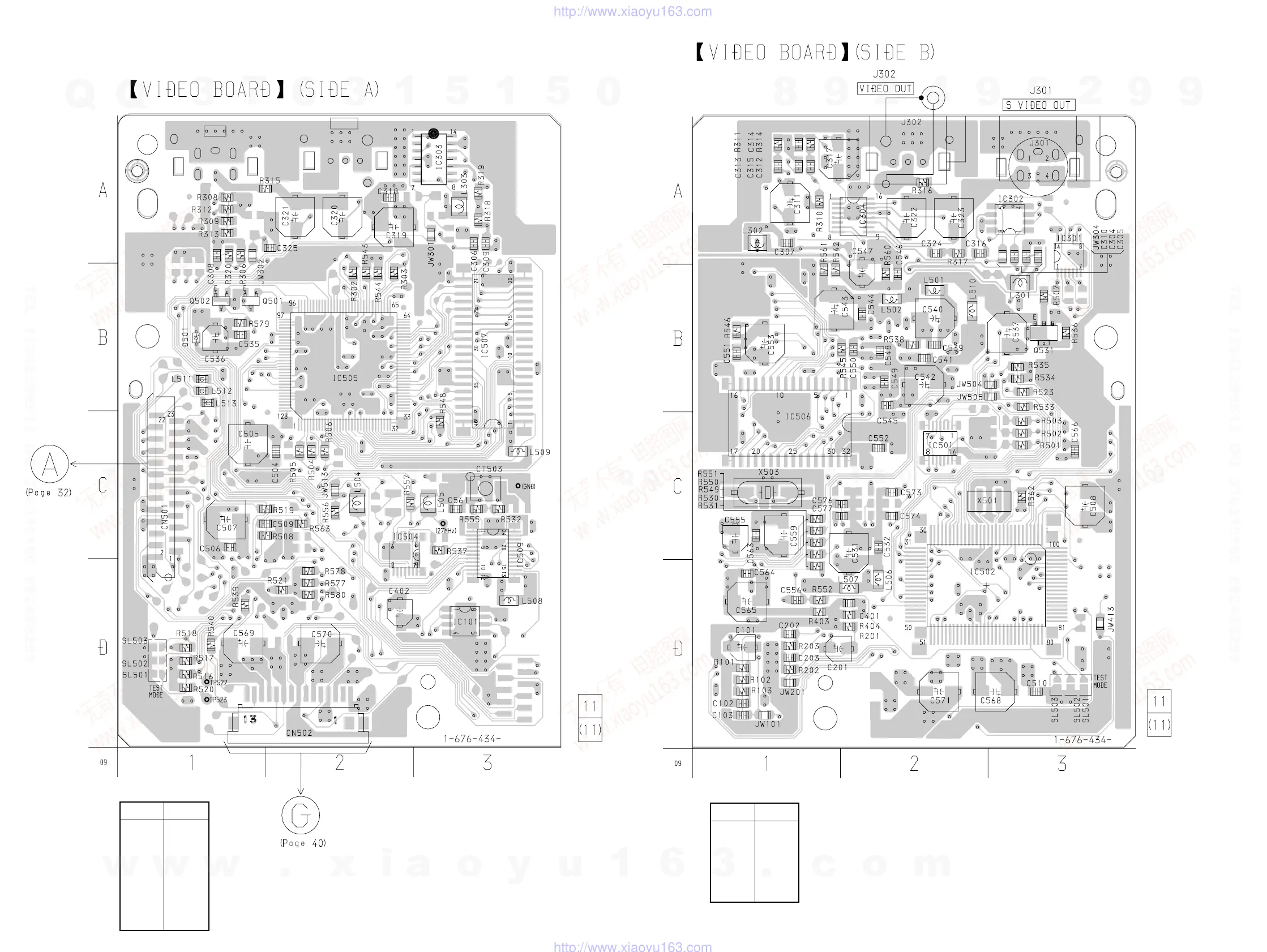

7-5. PRINTED WIRING BOARD – VIDEO SECTION – • See page 25 for Circuit Boards Location.
• Semiconductor Location • Semiconductor Location
Ref. No. Location
D501 B-1
IC101 D-3
IC303 A-3
IC504 C-2
IC505 B-2
IC507 B-3
IC509 C-3
Q501 B-1
Q502 B-1
Ref. No. Location
IC301 A-3
IC302 A-3
IC304 A-2
IC501 C-2
IC502 D-2
IC506 C-1
Q531 B-3
