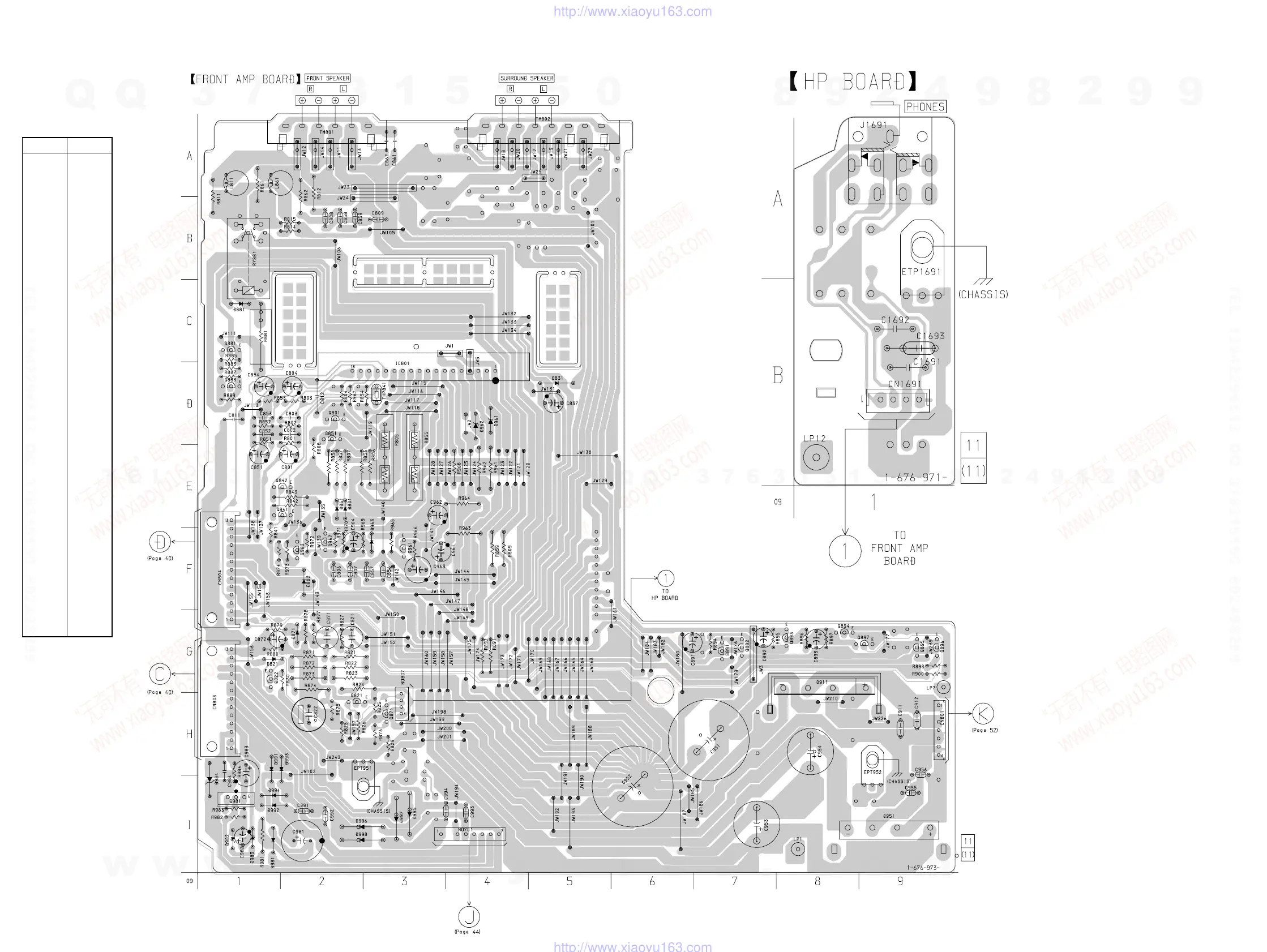

Sony HCD-VZ0 - Printed Wiring Boards - Amp Section; Front Amp Board Layout; HP Board Layout

HCD-VZ10
44
44
7-15. PRINTED WIRING BOARD – AMP SECTION – • See page 25 for Circuit Boards Location.
D801 E-2
D802 F-2
D821 G-1
D831 D-5
D851 E-2
D871 G-2
D881 C-1
D911 G-8
D951 I-9
D961 D-4
D962 D-4
D963 F-3
D981 I-1
D982 I-1
D983 I-1
D984 I-1
D991 I-1
D992 I-1
D993 I-1
D994 I-1
D995 I-3
D996 I-2
D997 I-3
D998 I-2
IC801 D-3
Q801 D-2
Q821 H-2
Q822 G-1
Q841 E-2
Q842 E-2
Q851 D-2
Q871 H-3
Q881 C-1
Q883 D-1
Q891 G-7
Q892 G-7
Q893 G-8
Q894 G-8
Q895 G-9
Q896 G-9
Q897 G-8
Q961 F-3
Q962 F-2
Q963 F-2
Q981 I-1
• Semiconductor
Location
Ref. No. Location
