75

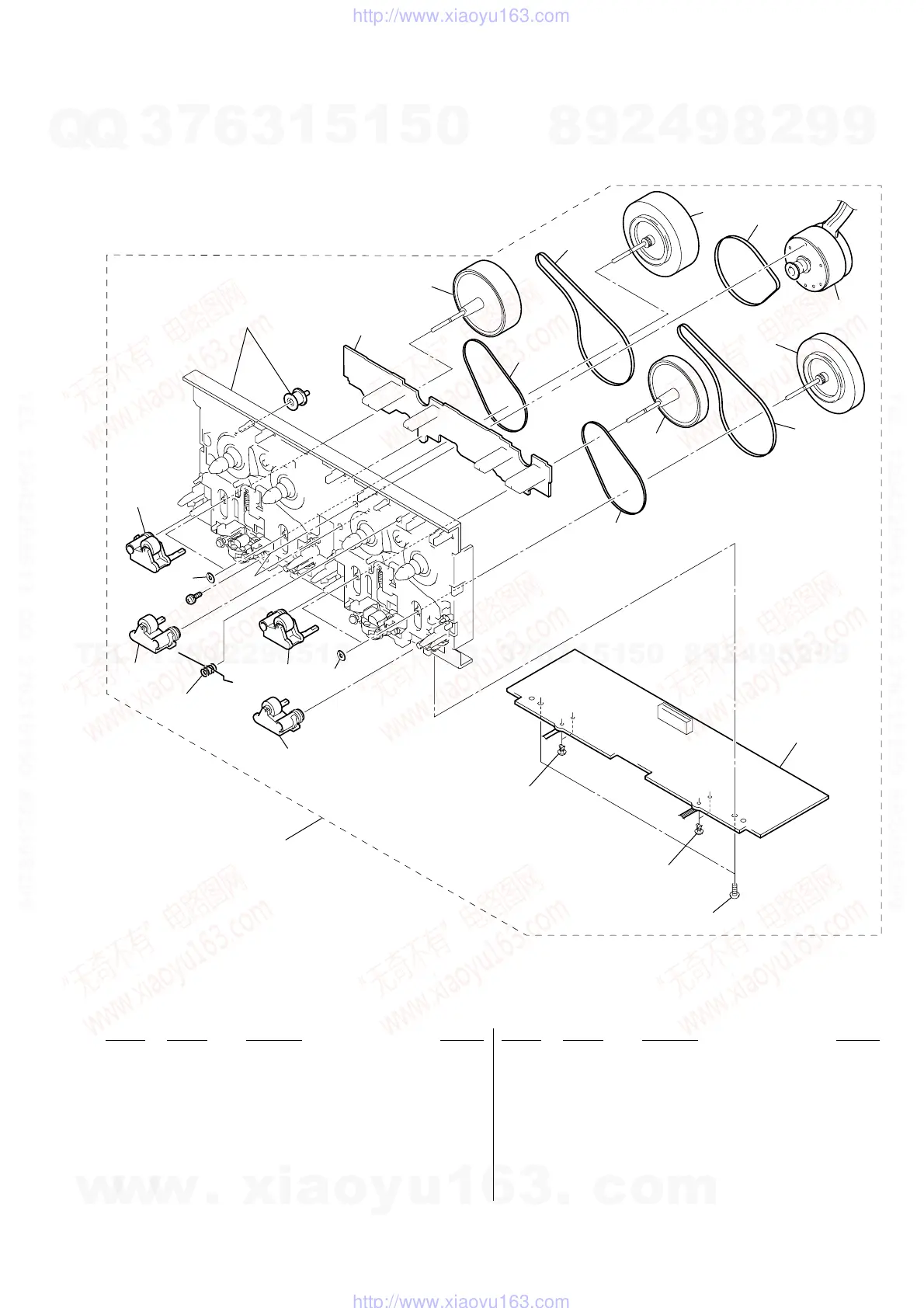

8-7. TAPE MECHANISM DECK SECTION
(TCM-230AWR12)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 A-2100-898-A TAPE MECHANISM ASSY TCM-230AWR12
302 3-911-116-42 RIVET, PUSH
303 A-2007-845-A AUDIO BOARD, COMPLETE
304 3-376-464-11 SCREW (+PTT 2.6X6),GROUND POINT
305 X-3374-156-4 PINCH LEVER (REV) ASSY
306 X-3374-155-4 PINCH LEVER (FWD) ASSY
307 A-2007-838-A LEAF SW BOARD, COMPLETE
308 3-041-947-01 BELT (FR)
309 X-3378-041-1 FLYWHEEL (A-REV) ASSY
310 3-041-946-01 BELT (CAPSTAN B)
311 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
312 4-227-239-01 BELT (CAPSTAN C)
313 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
314 X-3378-043-1 FLYWHEEL (B-REV) ASSY
315 3-019-208-01 WASHER, STOPPER
316 4-227-455-02 SPRING (HALF), TORSION
M1 X-3378-241-1 MOTOR ASSY (CAPSTAN)
305
308
307
308
311
310
310
313
309
312
314
M1
305
306
306
301
315
315
316
#1
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
not supplied
304
302
302
303
