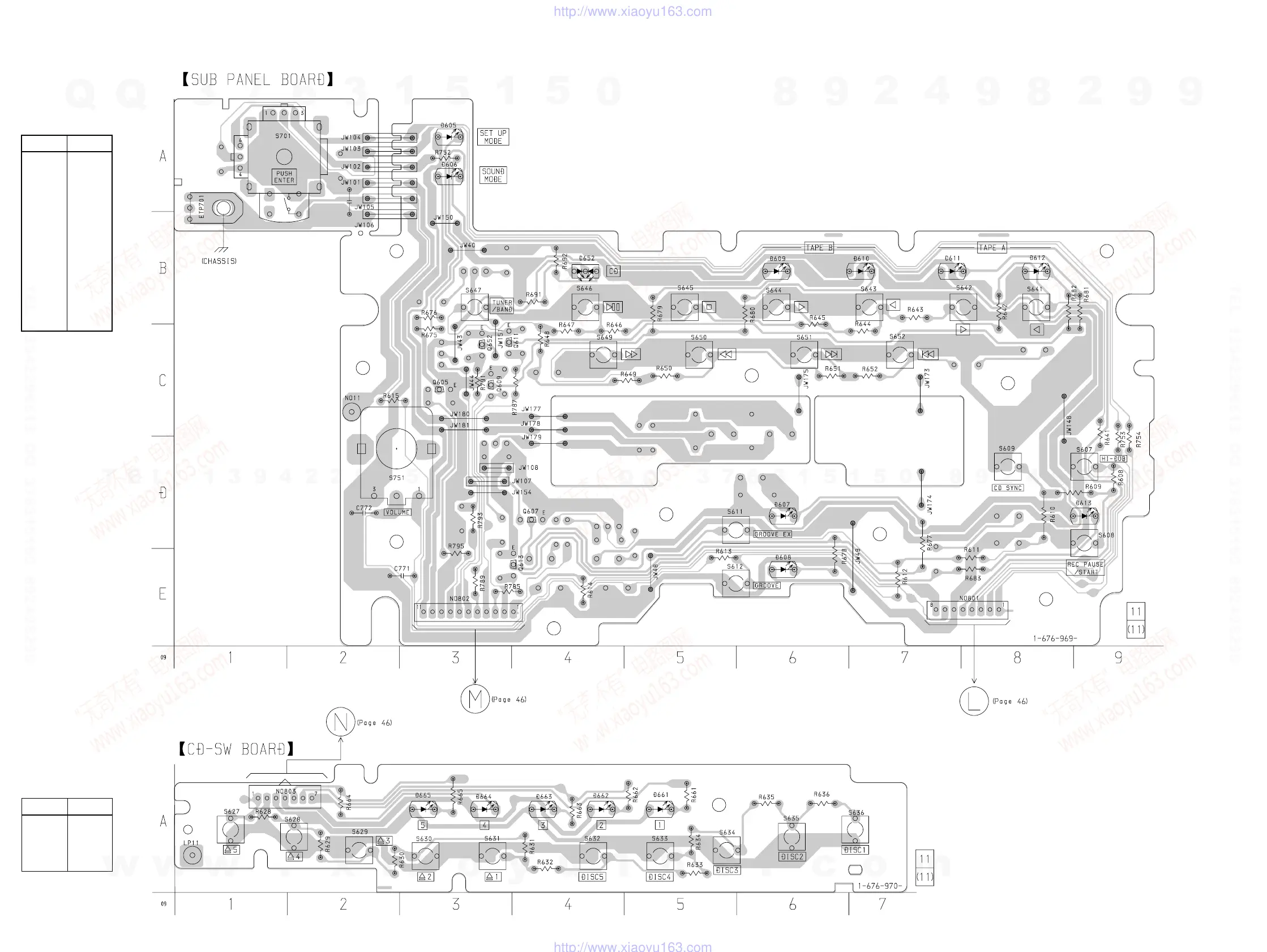

7-19. PRINTED WIRING BOARD – SWITCH SECTION – • See page 25 for Circuit Boards Location.
• Semiconductor
Location
(CD SW Board)
Ref. No. Location
D661 A-5
D662 A-4
D663 A-4
D664 A-3
D665 A-3
• Semiconductor
Location
(SUB PANEL Board)
Ref. No. Location
D605 A-3
D606 A-3
D607 D-6
D608 E-6
D609 B-6
D610 B-7
D611 B-7
D612 B-8
D613 D-9
D652 B-4
Q605 C-3
Q607 D-4
Q609 C-3
Q611 C-3
Q613 E-4
Q652 C-3
