8

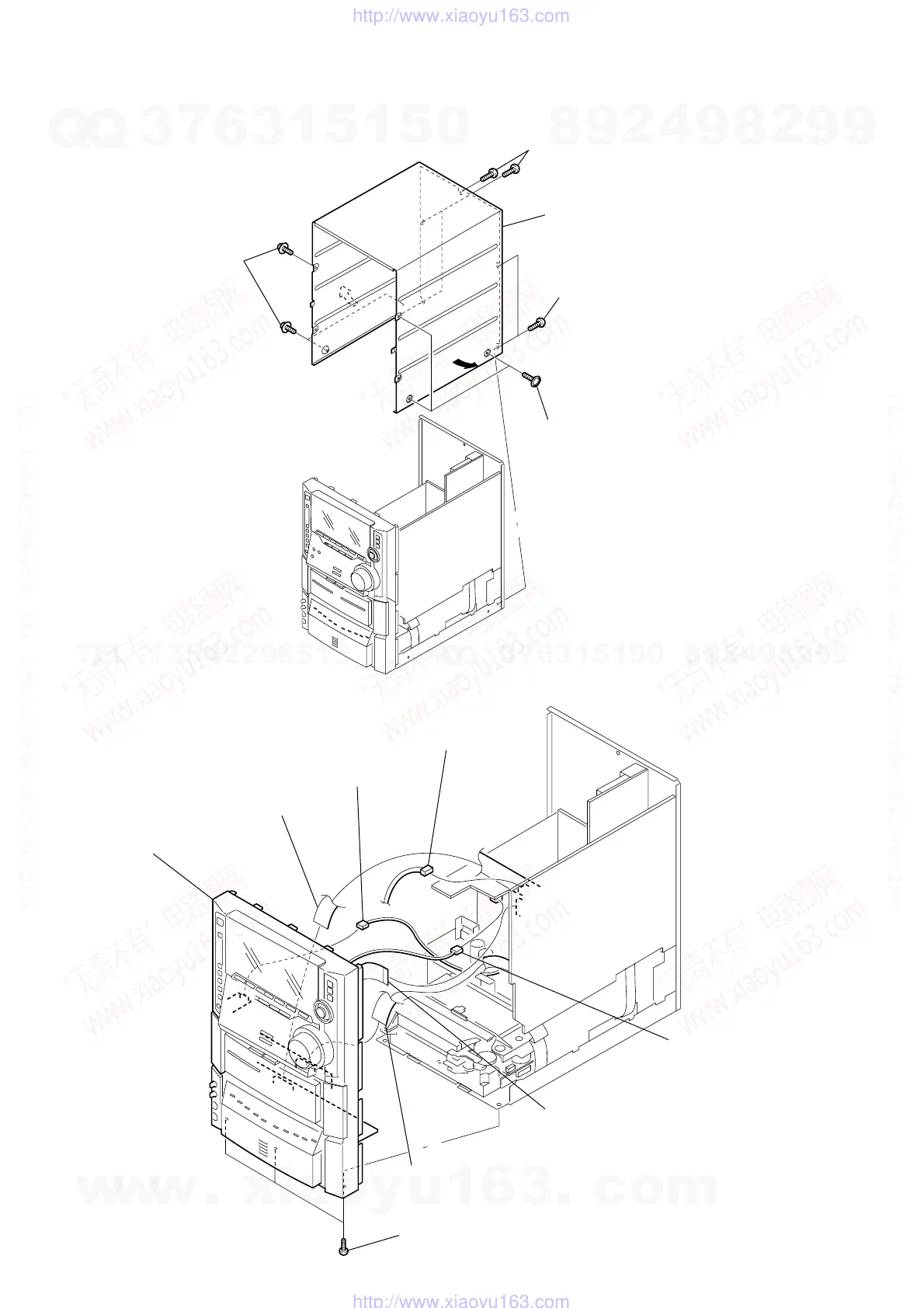

3-1. CASE
3-2. FRONT PANEL SECTION
Note : Follow the disassembly procedure in the numerical order given.
1 three screws
(BVTT 3 × 8)
2 two screws
(BVTT 3 × 8)
3 three screws
(case 3 TP2)
4 three screws
(case 3 TP2)
5 Remove the case
in the arrow direction.
1 flat type wire (15core)
(CN601)
8 front panel section
2 flat type wire (17core)
(CN001)
3 flat type wire (11core)
(CN503)
4 connector
(CN1691)
6 connector
(CN103)
5 connecto
(CN914)
7 three screws
(BVTT 3 × 6)
SECTION 3
DISASSEMBLY
