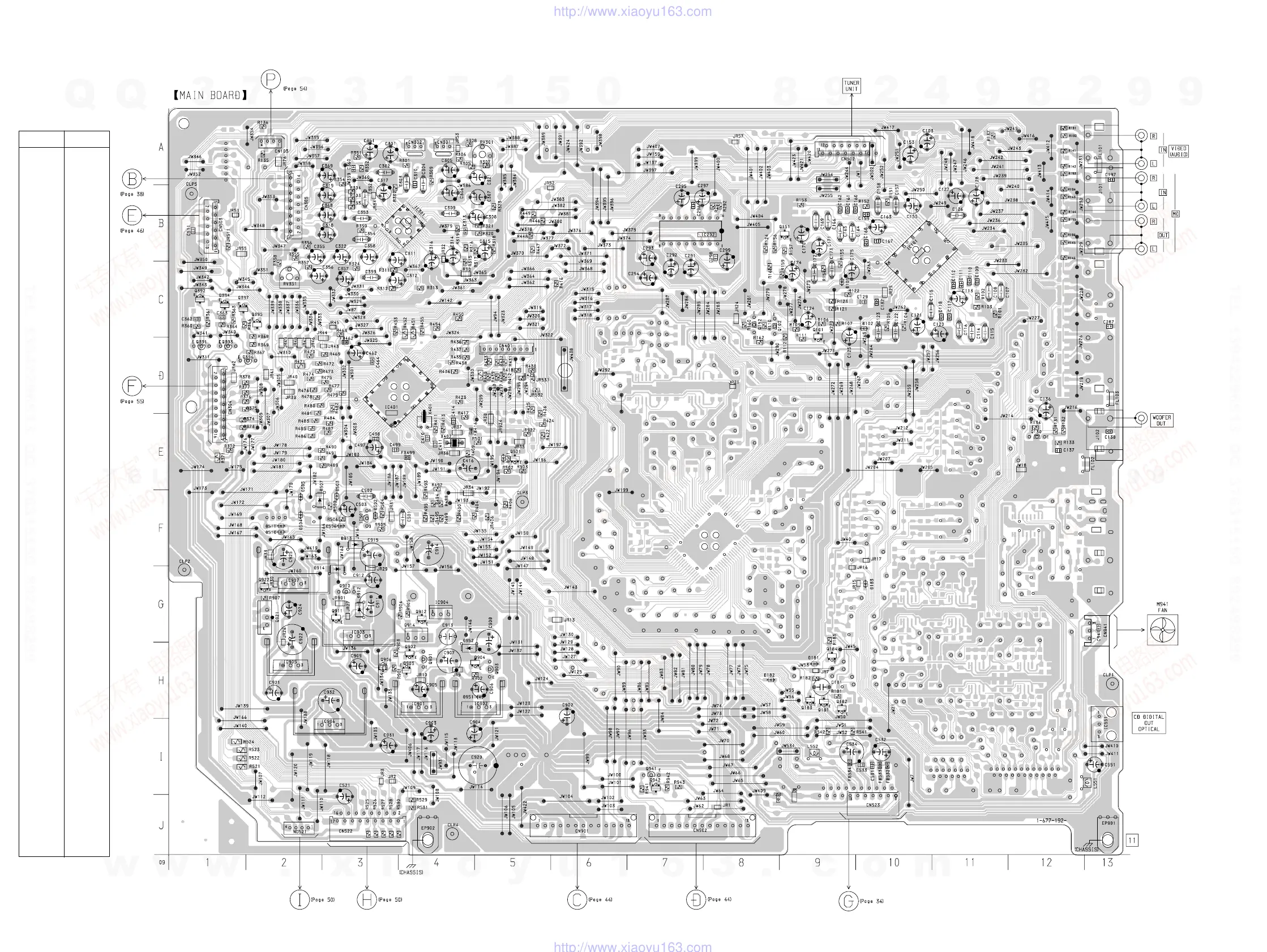

7-11. PRINTED WIRING BOARD – MAIN SECTION – • See page 25 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D101 C-9
D102 C-10
D181 H-9
D182 H-8
D183 G-10
D501 E-5
D502 F-3
D503 F-3
D504 F-2
D505 F-2
D506 F-3
D507 F-2
D508 F-2
D509 F-2
D510 F-2
D511 F-2
D512 F-2
D912 G-3
D913 F-3
D914 G-3
D951 H-5
D952 H-4
IC101 B-10
IC202 B-8
IC301 B-3
IC401 D-3
IC501 F-3
IC551 I-12
IC901 H-4
IC902 H-5
IC903 G-3
IC904 G-4
IC905 H-2
IC906 I-3
IC907 G-2
Q101 C-9
Q102 C-8
Q130 E-12
Q151 B-8
Q152 C-8
Q181 H-9
Q182 H-9
Q183 H-9
Q184 H-9
Q391 C-1
Q392 D-1
Q393 D-1
Q394 C-1
Q395 C-2
Q396 D-2
Q397 C-2
Q501 E-5
Q901 H-4
Q902 H-4
Q903 H-5
Q904 H-5
Q905 H-4
Q906 H-3
Q910 G-3
Q911 G-3
Q912 G-4
Q913 F-4
Q914 G-4
Q921 G-2
Q922 G-2
Q941 I-7
Q942 I-7
