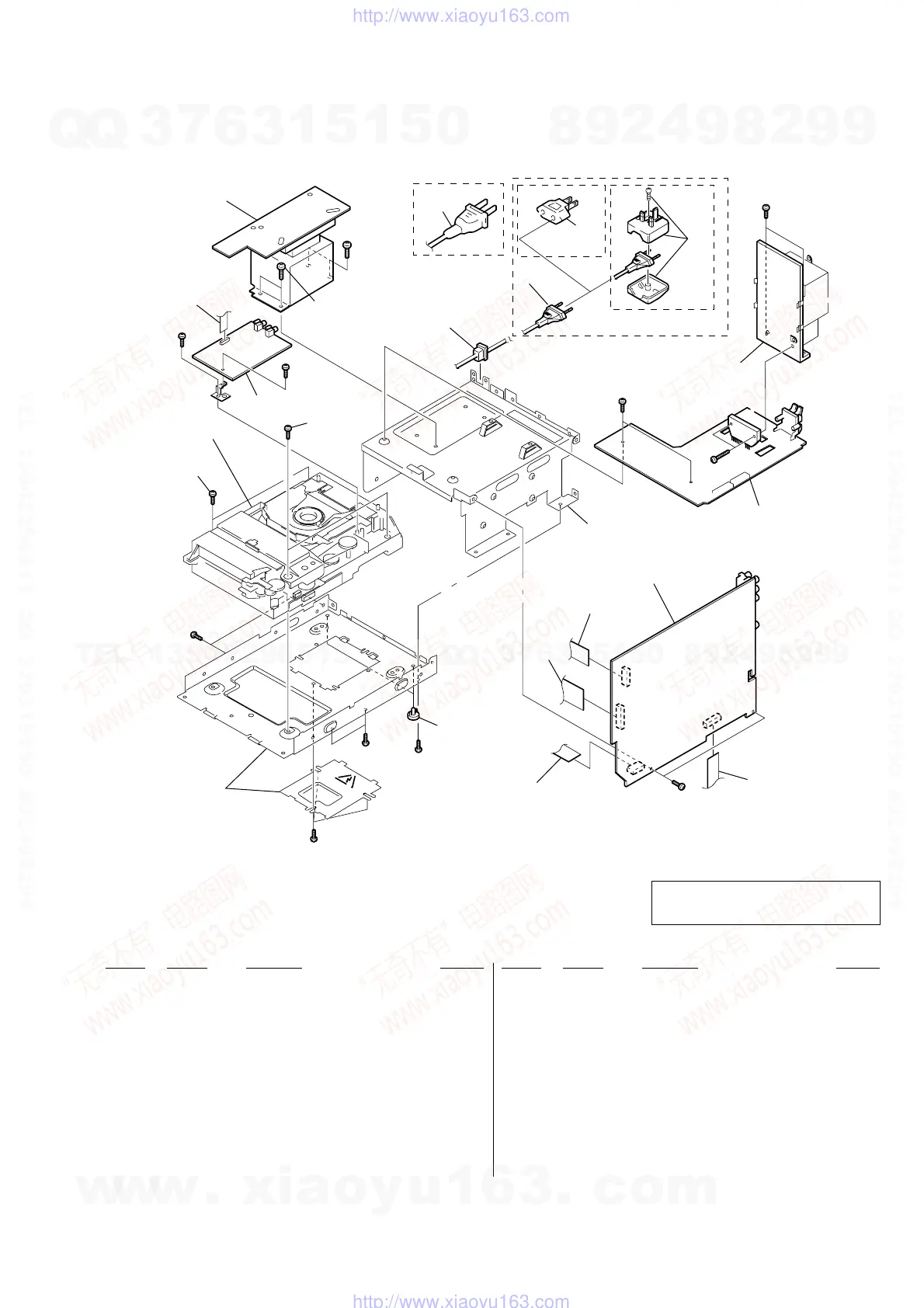

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 A-4473-003-A MAIN BOARD, COMPLETE (SP,MY,HK)
101 A-4473-280-A MAIN BOARD, COMPLETE (TH)
101 A-4473-285-A MAIN BOARD, COMPLETE (EA)
102 1-792-795-11 WIRE (FLAT TYPE) (13 CORE) 300mm
103 1-773-041-11 WIRE (FLAT TYPE) (17 CORE) 130mm
104 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 170mm
105 1-773-022-11 WIRE (FLAT TYPE) (15 CORE)
106 4-965-822-01 FOOT
107 3-970-608-11 SUMITITE (B3), +BV
108 1-676-975-11 TRANS BOARD
109 3-703-571-11 BUSHING (S) (4516), CORD (TH)
* 109 3-703-244-00 BUSHING (2104), CORD (SP,MY,HK,EA)
0110 1-777-071-51 CORD, POWER (SP,MY,HK,EA)
0110 1-791-901-11 CORD, POWER (TH)
111 A-4428-998-A FRONT AMP BOARD, COMPLETE
(SP,MY,HK,EA)
111 A-4473-272-A FRONT AMP BOARD, COMPLETE (TH)
0112 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,MY,EA)
0112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
113 A-4473-286-A VIDEO BOARD, COMPLETE
114 1-792-796-11 WIRE (FLAT TYPE) (23 CORE)
101
102
103
105
104
106
107
107
113
114
108
109
110
111
#1
#2
#2
#2
#2
#1
#2
#4
#4
not supplied
CDM53F-K2BD37A
not supplied
not supplied
#1
#1
#5
112
EA,SP,MY
112
HK
110
TH
SP,MY,HK,EA
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
