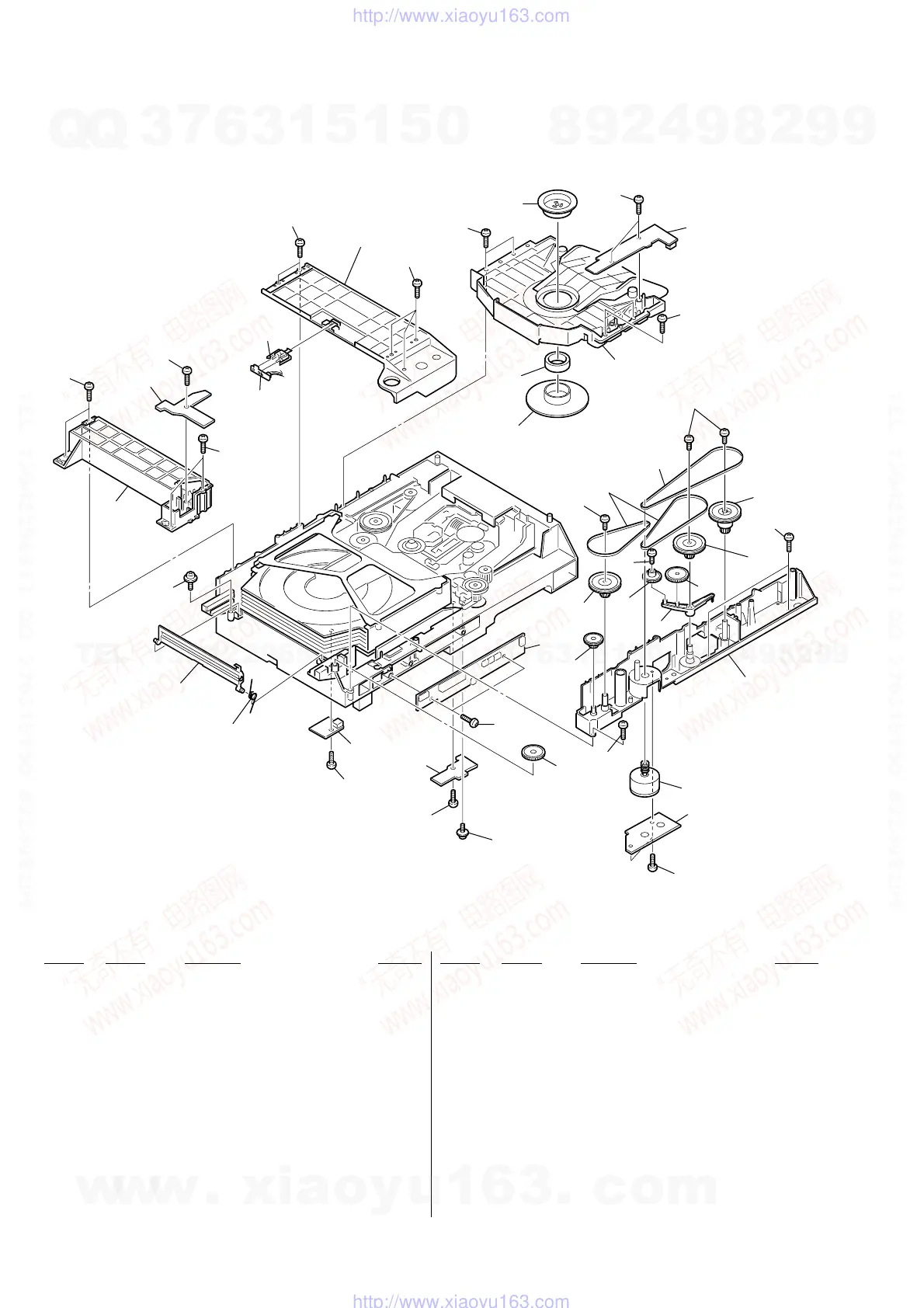

8-4. CD MECHANISM DECK SECTION-1
(CDM53F-K2BD37A)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 4-218-253-11 SCREW (M2.6), +BTTP
152 1-671-508-11 LOAD MOTOR BOARD
153 4-211-215-01 GEAR (EJECT)
154 1-671-502-11 INT/COUNT SW BOARD
155 1-671-504-11 SENSOR BOARD
156 4-212-676-01 SPRING (LID), TORSION
157 4-212-674-01 LID (DISC)
158 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
159 A-4672-873-A BASE (GUIDE) ASSY, FITTING
160 1-671-503-11 OUT SW BOARD
161 1-671-789-11 SENSOR 2 BOARD
162 4-964-461-02 HOLDER (SENSOR)
164 1-671-505-11 IN SW BOARD
165 A-4672-872-D BASE (MAGNET) ASSY, FITTING
166 3-341-549-01 SCREW (2.6X12) (DIA.7.5),+PTP WH
167 4-211-235-01 BELT (COMMUNICATION)
168 4-211-236-01 BELT (LOADING)
169 4-211-231-01 PULLEY (MODE)
170 4-211-214-01 PULLEY (LD)
171 4-211-232-01 GEAR (LD DECELERATION)
172 4-211-228-01 LEVER (GOOSENECK)
173 4-214-130-01 GEAR (TRAY)
174 1-671-506-11 CONNECTOR BOARD
175 4-225-368-01 PULLEY (C), CHUCKING
176 1-471-061-11 MAGNET ASSY
177 X-4952-936-1 PULLEY (A) ASSY, CHUCKING
M702 X-4950-342-1 MOTOR (LOADING) ASSY
