4-4
HDCU3300/MM (J,E)

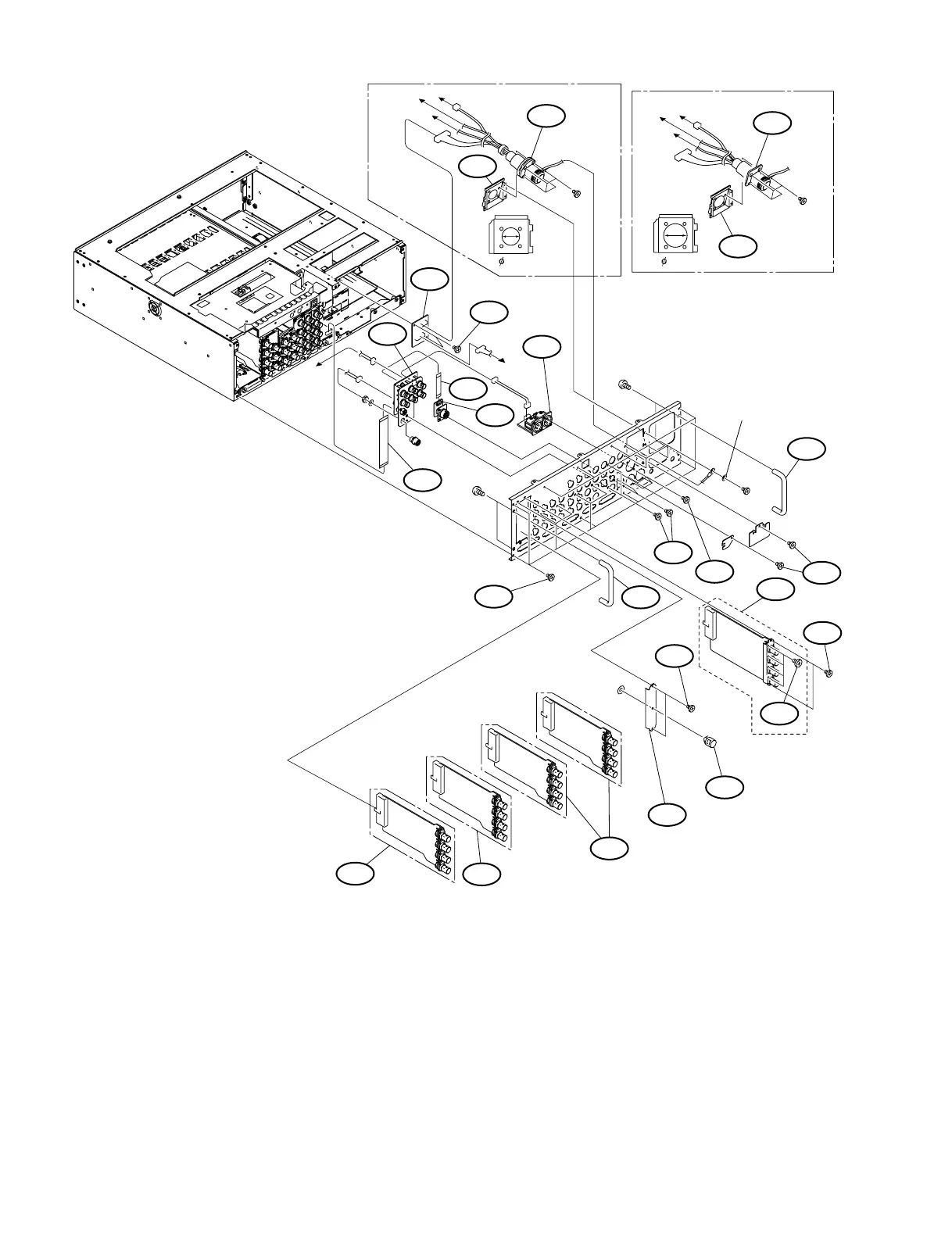

Rear Panel Section
23mm 27mm
P4-5
P4-5
213
216
216
216
216
213
214
214
201
210
207
206
208
211
217
202
215
219
D
E
F
B
WASHER
4.0,
NYLON
P5 x 8
P5 x 8
PS3 x 8
212
218
D
F
PS3 x 8
(LEMO)
(TAJIMI)
PS3 x 8
SMALL W 3
(LEMO)
209
E
R
P4-5
204
205
Option
(HKCU1003)
VDA-64B
Option
(HKCU1003)
VDA-64A
Option
(HKCU1001)
VDA-64A
Option
(HKCU1005)
HIF-26
203
216
216
No. Part No. SP Description
201 A-1129-232-A s MOUNTED CIRCUIT BOARD, CN-2673
202 A-1129-237-A s MOUNTED CIRCUIT BOARD, CN-2718
203 A-1132-791-A s MOUNTED CIRCUIT BOARD, VDA-64A (OPTION)
204 A-1132-792-A s MOUNTED CIRCUIT BOARD, VDA-64B (OPTION)
205 A-1132-794-A s MOUNTED CIRCUIT BOARD, HIF-26 (OPTION)
206 A-1132-794-A s MOUNTED CIRCUIT BOARD, HIF-26
207 A-1161-079-A s MOUNTED CIRCUIT BOARD, CN-2805G
208 A-1161-081-A s MOUNTED CIRCUIT BOARD, CN-2672G
209 1-831-664-11 s CABLE, FLEXIBLE FLAT (50 CORE)
210 1-831-666-11 s CABLE, FLEXIBLE FLAT (15 CORE)
211 ! 1-833-305-11 s CABLE ASSEMBLY, ENCAPSULAT (F) (LEMO)
212 ! 1-833-440-11 s OPTICAL MULTI CABLE ASSEMBLY (TAJIMI)
No. Part No. SP Description
213 2-378-801-01 s HANDLE
214 3-364-941-01 s SCREW (+B) (2.6X5), NYLOK
215 3-682-057-11 s SPACER (SMALL)
216 3-725-295-21 s SCREW, (+) (B3)
217 3-872-863-02 s FIBER CN HOLDER (LEMO)
218 3-986-571-01 s FIBER CN HOLDER (TAJIMI)
219 3-620-243-02 s BLANK PANEL
7-623-925-11 s WASHER 4.0, NYLON
7-682-174-01 s SCREW, +P 5X8
7-682-648-01 s SCREW, +PS 3X8
7-688-003-03 s W 3, SMALL (LEMO)
