Sony HDCU3300 - Page 49

4-5
HDCU3300/MM (J,E)

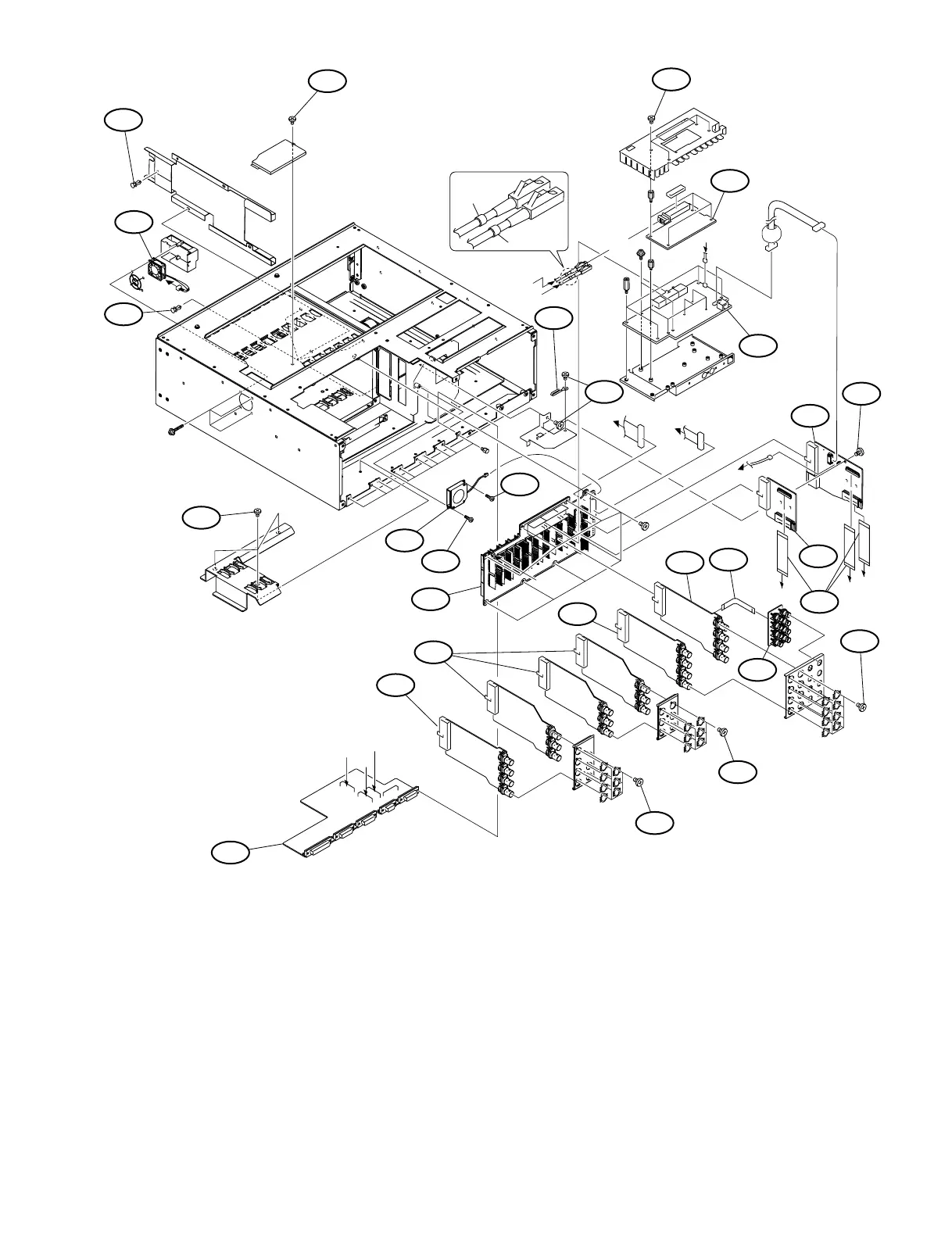

Rear Panel
1
2
1
2
304
305
306
308
311
314
315
318
318
317
309
318
319
307
302
310
319
319
320
313
301
303
G
G
H
J
H
J
A
K
K
C
PSW3 x 6
PSW3 x 20
PSW3 x 6
E
F
D
P4-4
P4-4
P4-4
316
312
316
R
P4-4
315
315
318
1
2
No. Part No. SP Description
301 A-1129-304-A s MOUNTED CIRCUIT BOARD, HIF-25
302 A-1129-305-A s MOUNTED CIRCUIT BOARD, SDI-85
303 A-1129-308-A s MOUNTED CIRCUIT BOARD, HIF-27
304 A-1161-074-A s MOUNTED CIRCUIT BOARD, SDI-86G
305 A-1161-076-A s MOUNTED CIRCUIT BOARD, VIF-34G
306 A-1161-078-A s MOUNTED CIRCUIT BOARD, ADO-10G
307 A-1161-080-A s MOUNTED CIRCUIT BOARD, CNB-21G
308 A-1161-082-A s MOUNTED CIRCUIT BOARD, CN-2674G
309 A-1206-238-A s MOUNTED CIRCUIT BOARD, OTR-1
310 A-1206-286-A s MOUNTED CIRCUIT BOARD, MB-1073
311 A-1206-291-A s MOUNTED CIRCUIT BOARD, SDP-15
312 ! 1-763-256-21 s FAN, DC
No. Part No. SP Description
313 1-831-087-11 s CABLE, FLEXIBLE FLAT (50 CORE)
314 1-831-666-11 s CABLE, FLEXIBLE FLAT (15 CORE)
315 3-364-941-01 s SCREW (+B) (2.6X5), NYLOK
316 3-531-576-21 s RIVET
317 3-701-822-01 s HOLDER, WIRE
318 3-725-295-21 s SCREW, (+) (B3)
319 4-674-315-01 s SCREW (M2.6X6)
320 1-763-676-21 s FAN, DC
7-682-947-01 s SCREW +PSW 3X6
7-682-953-01 s SCREW +PSW 3X20
