10

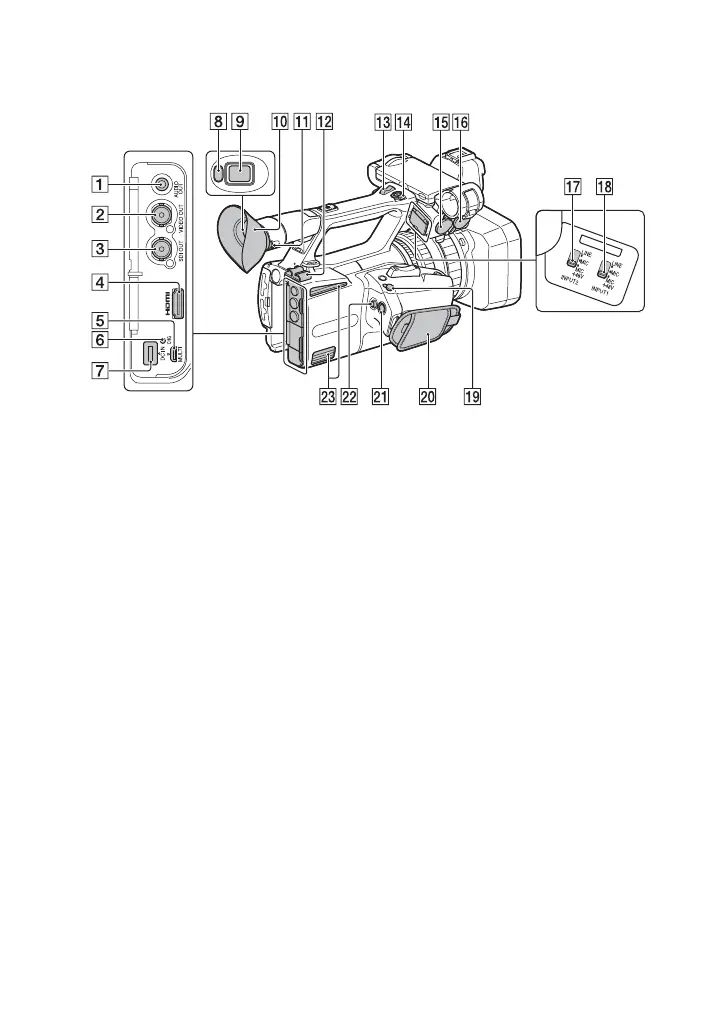

A AUDIO OUT jack (p. 60)
B VIDEO OUT jack (p. 60)
C SDI OUT jack (p. 60)
D HDMI OUT jack (p. 60)
E Multi/Micro USB jack (p. 60)
F CHG (charging) lamp (p. 20)
G DC IN jack (p. 19)
H Eye sensor (p. 27)
I Viewfinder (p. 27)
J Large eyecup (p. 27)
K Diopter adjustment dial (p. 27)
L Cable clamper
M Handle zoom lever (p. 34)
N Handle record button (p. 31)
O INPUT2 jack (p. 46)
P INPUT1 jack (p. 46)
Q INPUT2 (LINE/MIC/MIC+48V) switch
(p. 46)
R INPUT1 (LINE/MIC/MIC+48V) switch
(p. 46)
S REMOTE jack (p. 49)
The REMOTE jack connects to a video
deck or other devices used to control
playback.
T Grip belt
U START/STOP button (p. 31)
V Multi-selector (p. 44)
W Air vents
May become warm due to heat
dissipation.
Do not block the vents when shooting.
About the cable clamper
Attaching the power cord, HDMI cable, and
other cables, inserted in the corresponding
connectors, in the cable clamper helps
prevent the cords from being disconnected.
However, not all HDMI cables are
supported.
Identifying Parts and Controls (Continued)
