Sony MJ620 - 4 Input and Output Connectors; Encoder Signal Input Connector

18 (E)
MJ620
6
2
8
3
1
5
4
7
4. Input and Output Connectors

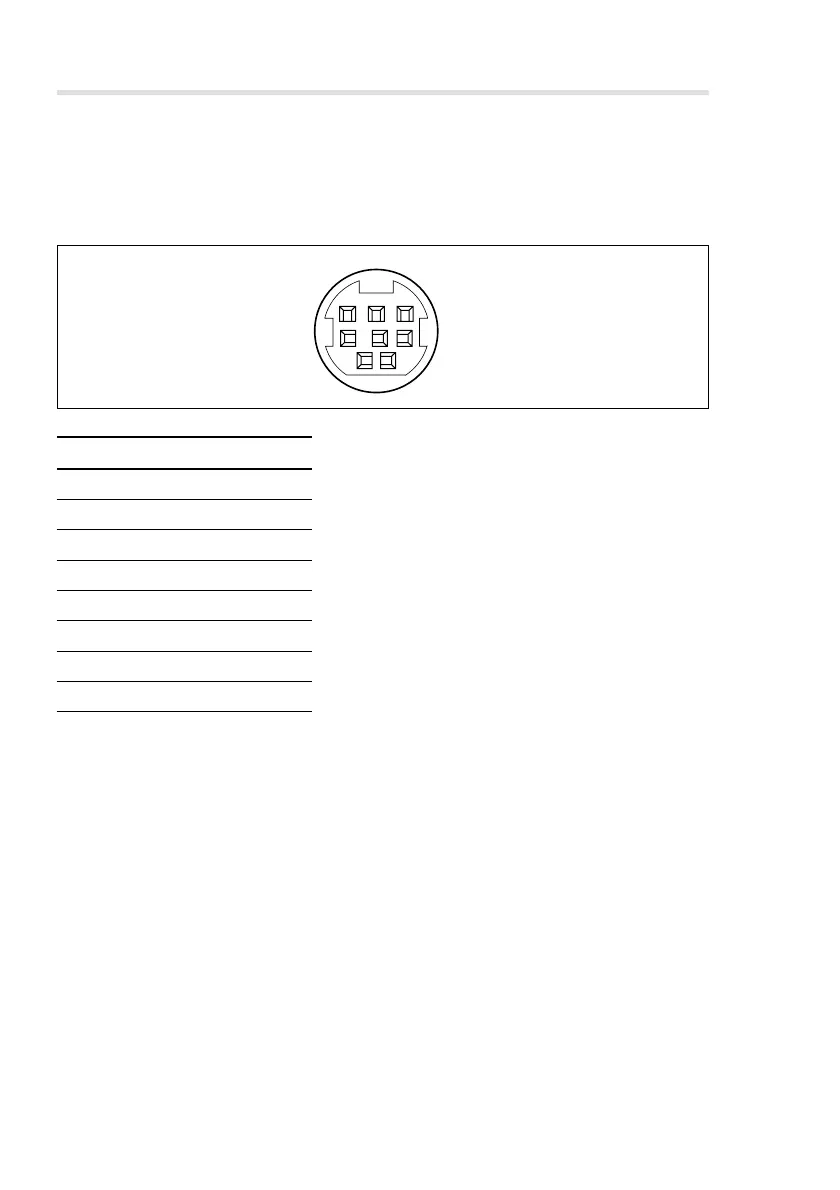

4-1. Encoder signal input connector
Connector used: Miniature DIN 8-pin receptacle
TCS6180-1010 (Hosiden) or equivalent product
Pin no. Signal
1 +Vcc
20 V
3 +SIN
4 _SIN
5 +COS
6 _COS
7 _Z
8 +Z
+Vcc is output directly by the interpolator power supply.
