Sony PMC-DR70L - VOL Board; Cabinet, Wood, Cabinet (R) Bottom

– 13 –

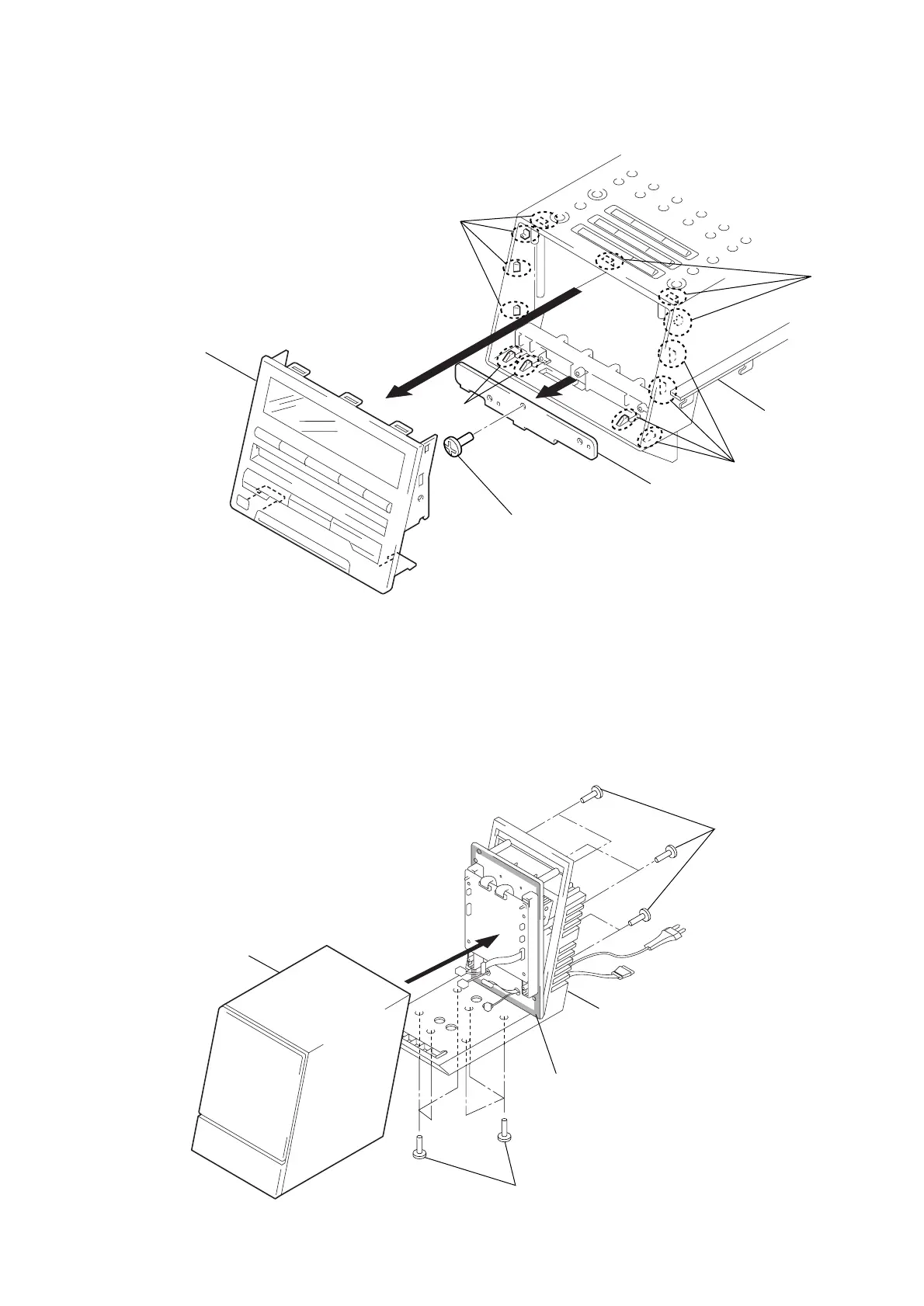

3-14. VOL BOARD
3-15. “CABINET, WOOD”, “CABINET (R) BOTTOM”
3 Screws (+BVTT 2.6x8)
2
4
1
Claws
Panel ASSY, front
Case (top)
VOL board
1 Claws
1 Claws
1 Claws
< SPEAKER UNIT (R-CH) >
2 Screws (+P 4x16)
3
Cabinet, Wood
1 Screws (+P 4x16)
Cabinet (R) bottom
Sponge, back board
Note : Change a “Sponge, back board”
(3-042-179-01) for a new article
when remove the cabinet (R) bottom.
