Sony PMC-DR70L - Mechanism Deck Section-2

– 81 –

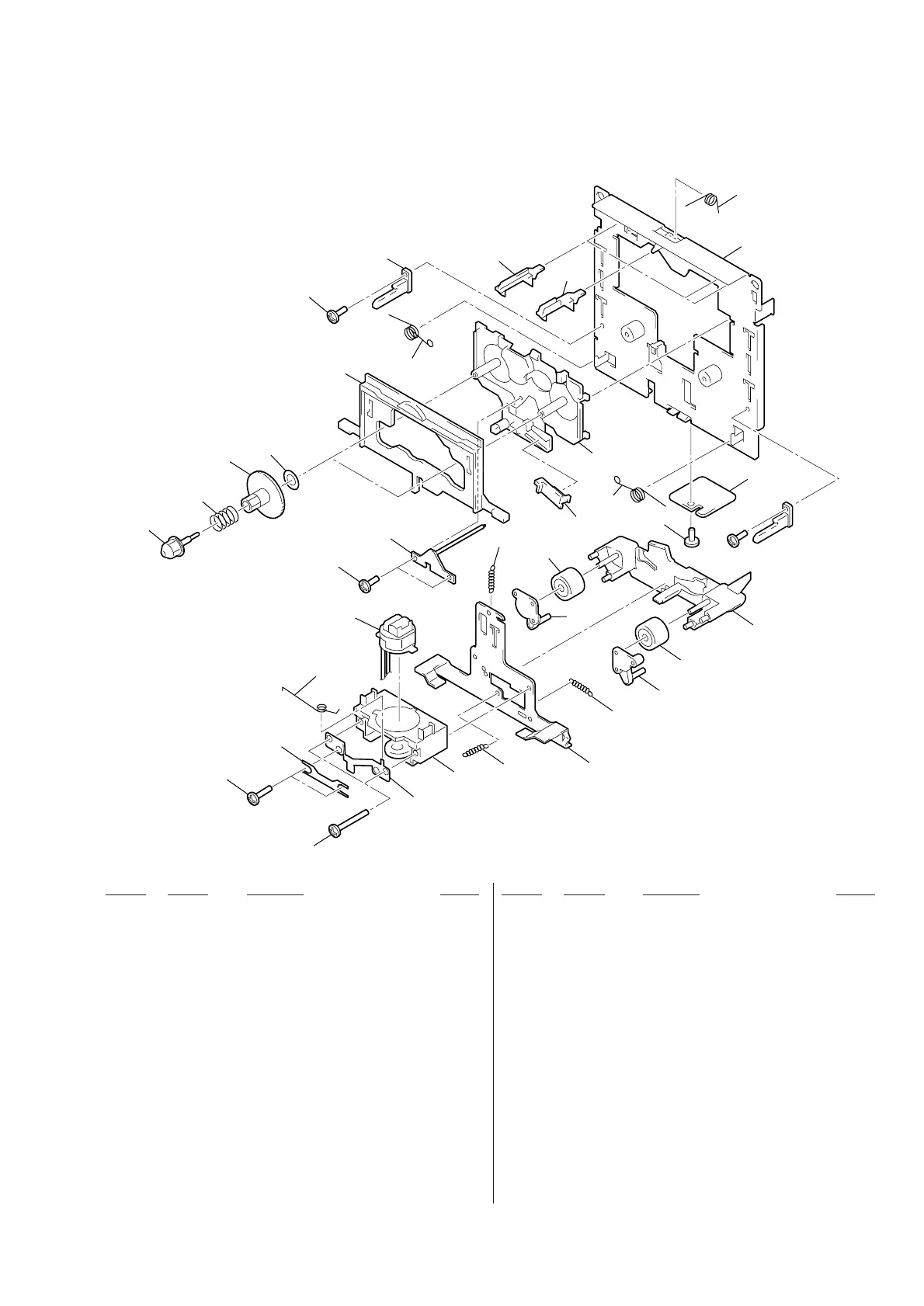

6-5. MECHANISM DECK SECTION-2
(MF-PMCDR50)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-029-573-01 LEVER (HD)
202 3-029-576-01 PINCH, ROLLER
203 3-029-574-01 PINCH (R), CAP
204 3-029-575-01 PINCH (L), CAP
205 3-029-608-01 SPRING
206 3-029-617-01 SCREW
207 3-029-607-01 SPRING
208 3-029-570-01 FRAME (HD)
209 3-029-604-01 SPRING
210 3-029-616-01 SCREW
211 3-938-941-01 SCREW (A)
212 3-034-598-01 SPRING, AZIMUTH
213 3-029-606-01 SPRING
214 3-029-609-01 SPRING
215 3-029-580-01 LEVER (ST)
216 3-029-614-01 SCREW
217 3-029-577-01 PLATE (D)
218 3-029-578-01 REEL, CAP
219 3-029-602-01 SPRING
220 3-029-579-01 REEL, GEAR
221 3-029-624-01 WASHER
222 3-029-582-01 BRAKE, LEVER
223 3-029-615-01 SCREW
224 3-029-581-01 GUIDE (C)
225 3-029-603-01 SPRING
226 3-029-585-01 ARM(SW)
227 3-029-584-01 ARM(CS)
228 3-029-610-01 SPRING
* 229 3-029-586-01 CHASSIS, MECHANISM
* 230 1-673-339-11 HEAD RELAY BOARD
231 3-029-583-01 FRAME (A)
HRPE1011-500-601-11 HEAD, REC/PB (RECORD/PLAYBACK/ERASE)
201
202
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
not supplied
not supplied
HRPE101
