– 82 –

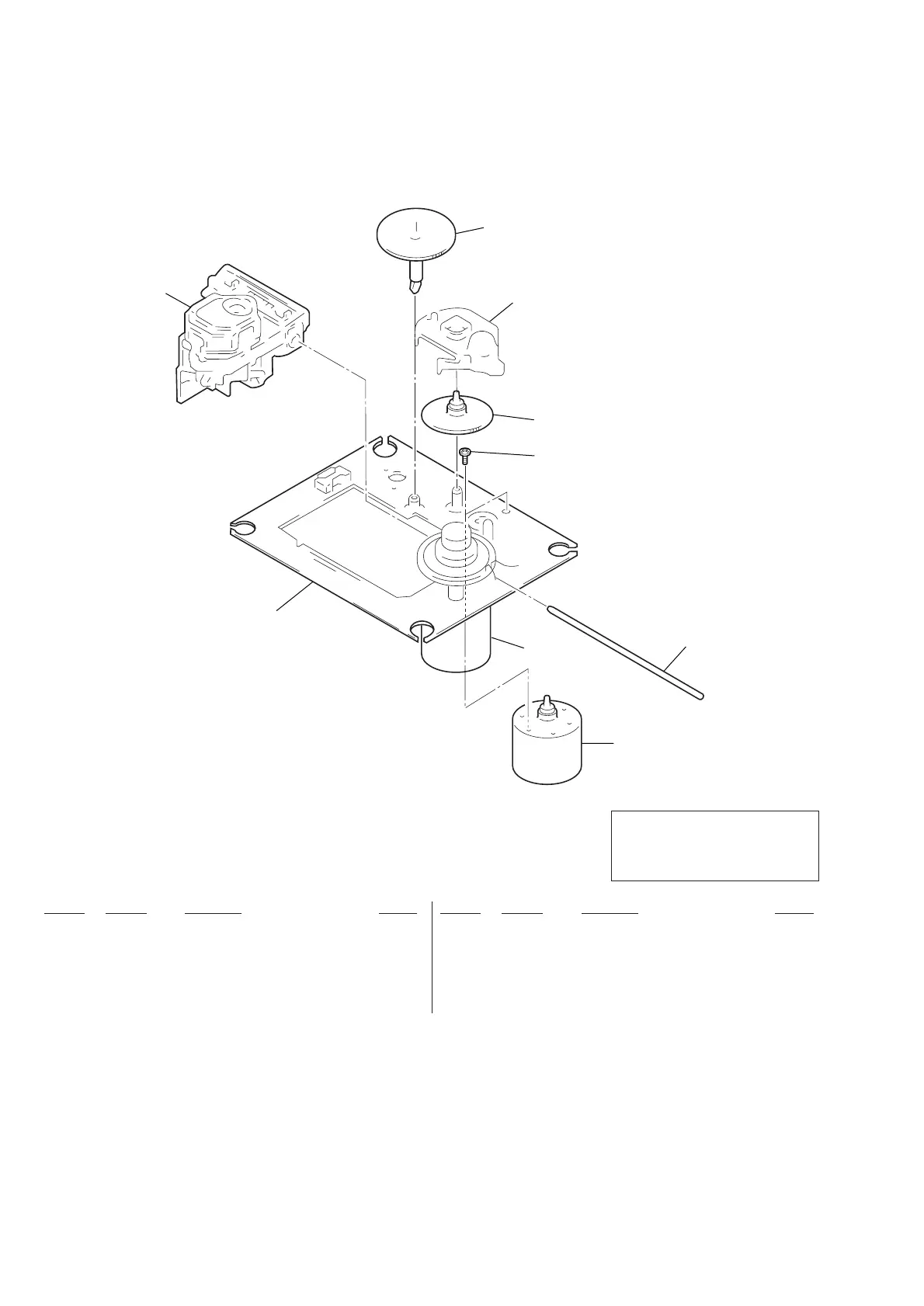

6-6. CD OPTICAL PICK-UP SECTION
(KSM-213CCP)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 2-626-908-01 SHAFT, SLED
252 2-627-003-02 GEAR (B) (RP)
253 2-626-907-02 GEAR (A)
! 254 8-848-483-05 OPTICAL PICK-UP KSS-213C
255 X-2626-202-1 MOTOR SHASSIS ASSY (MB) (INCLUDING
M702) (SPINDLE)
256 3-713-786-51 SCREW +P 2X3
M701 X-2625-769-1 MOTOR GEAR ASSY (MB) (INCLUDING GEAR)
(SLED)
not s upplied
M701
M702
251
255
(including M702)
252
256
253
254
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
