Sony PMC-DR70L - Speaker (SP601), Cabinet, Front; LED Board, Volume Board

– 19 –

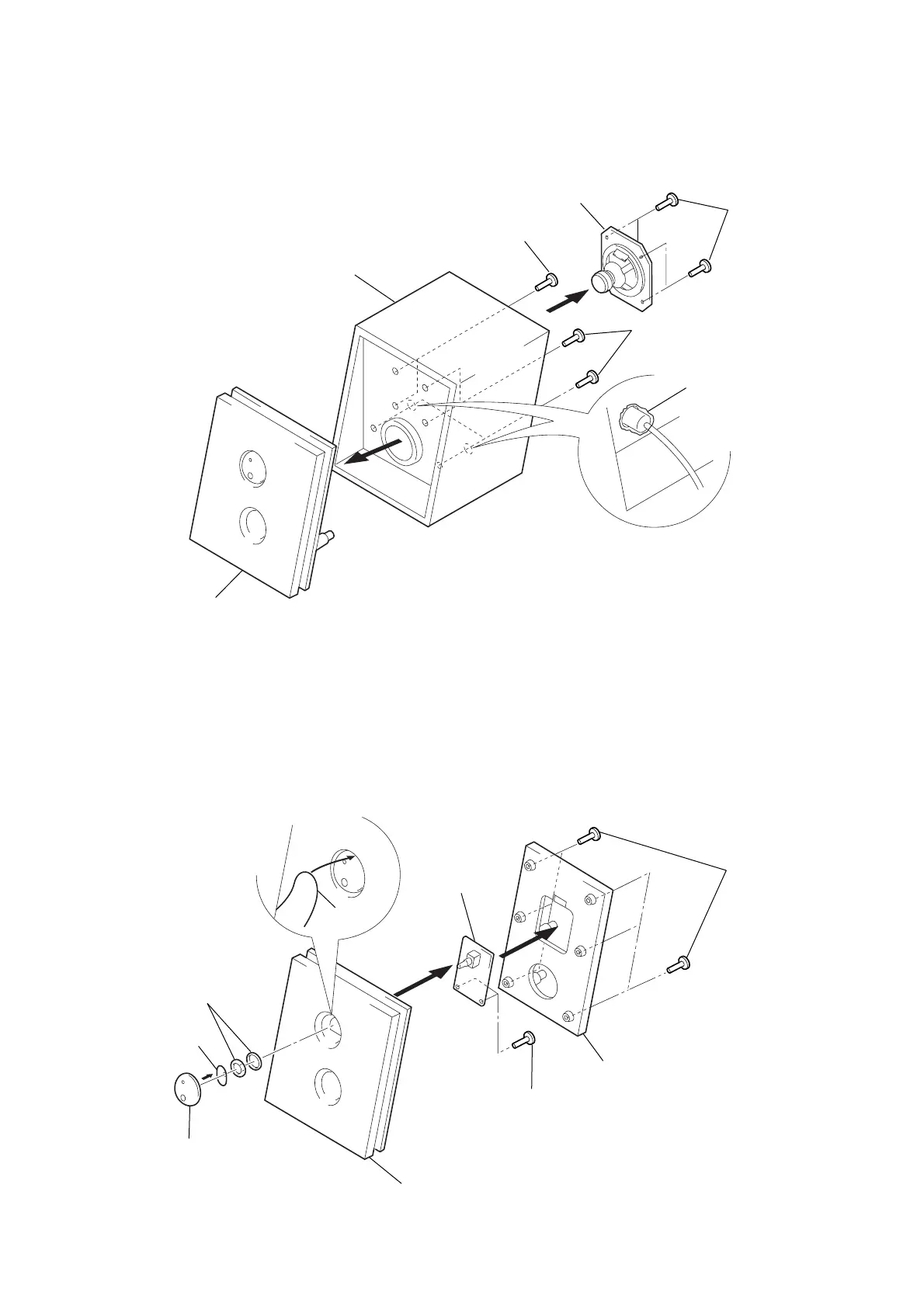

3-26. SPEAKER (SP601), “CABINET, FRONT”
3-27. LED BOARD, VOLUME BOARD
2
5
Speaker (SP601)
1 Screws (+P 4x16)
4 Screws (+P 4x16)
4 Screws (+P 4x16)
3 Pull up a airtight
clipper.
Cabinet (SWF) wood
Cabinet, front
5
7
6
Screws (+BVTT 3x8)
3 Nut and waher
2
4 Screws (+PWH 3x10)
1 Hang thread in a circumuference of
“Knob ASSY, VOL”, and pull it up
LED board
Cabinet, front
Chassis (SWF) sub
Knob ASSY, VOL
Thread
Volume board
