Sony PMC-DR70L - AC Outlet Board, SP Jack Board; Cabinet (SWF) Bottom

– 18 –

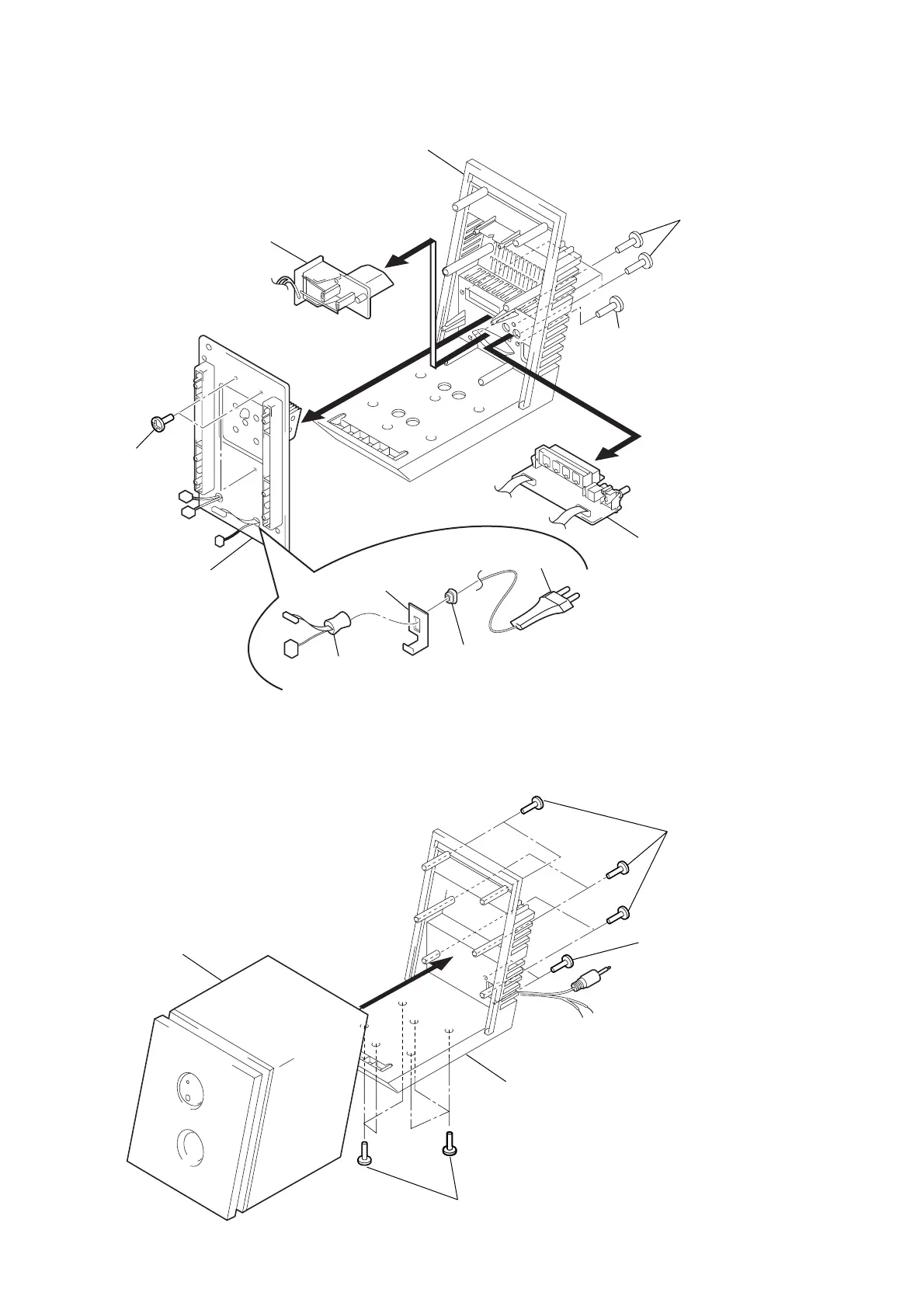

3-24. AC OUTLET BOARD, SP JACK BOARD
5
4
2
1
Screws
(+BVTT 3x8)
3 Screws (+BVTT 3x8
)
6 Screw (+BVTT 3x8)
Cabinet (L) bottom
AC outlet board
SP jack board
Board (L) back
Stopper, cord
Airtight clipper
Bracket
Cord, AC
3-25. CABINET (SWF) BOTTOM
< SUPER WOOFER UNIT > (DR70L)
4
1
Screws (+P 4x16)
3 Screws (+BVTT 3x8)
Cabinet (SWF) wood
Cabinet (SWF) bottom
2 Screws
(+P 4x16)
