– 80 –

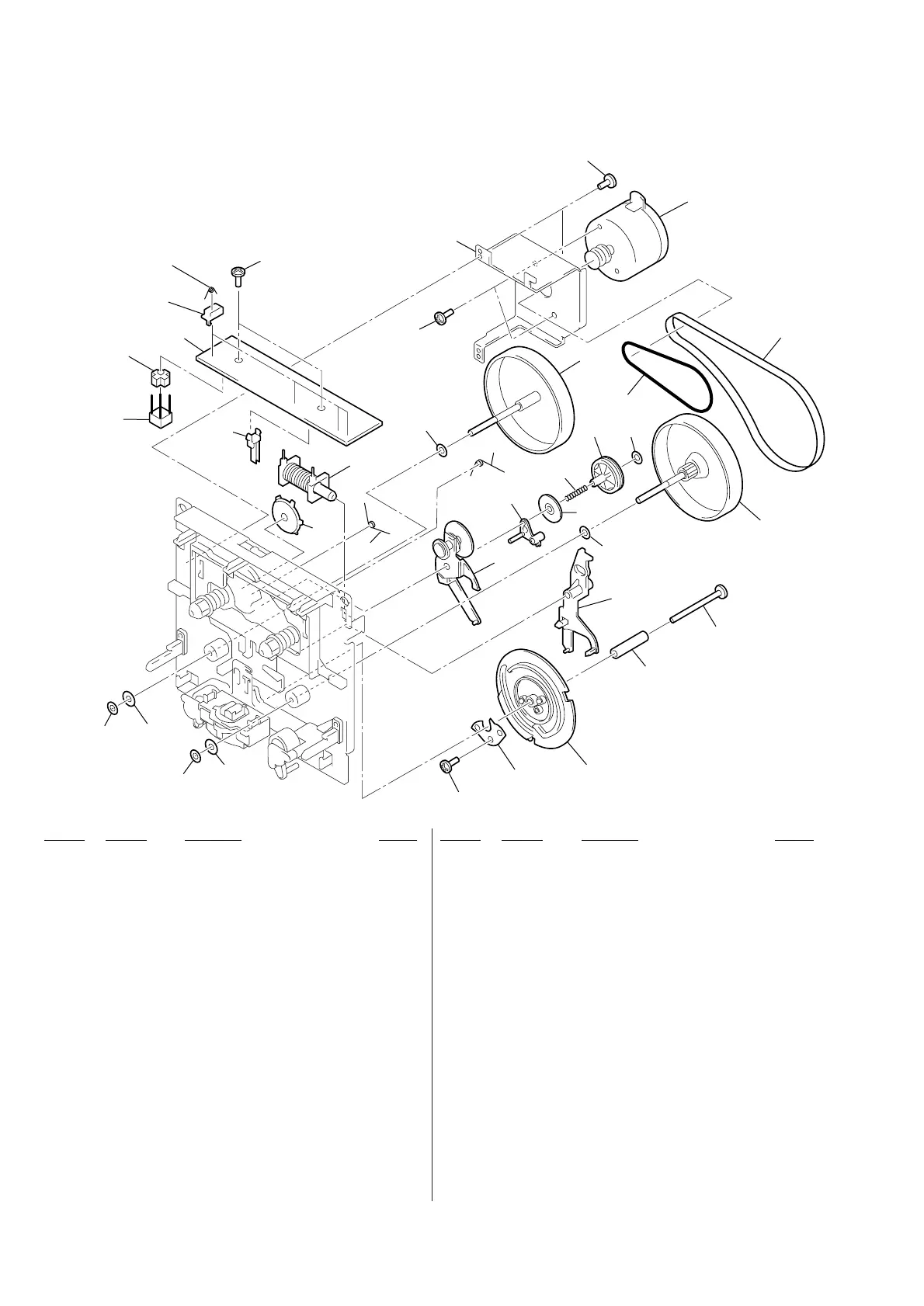

6-4. MECHANISM DECK SECTION -1
(MF-PMCDR50)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-029-619-01 SCREW
152 3-029-591-01 COLLAR
153 3-029-590-01 CAM, GEAR
154 3-034-597-01 CAM, ARM
155 3-704-418-14 SCREW (M1.7X4), TAPPING
156 3-029-623-01 WASHER
157 3-029-622-01 WASHER
158 3-029-621-01 WASHER
159 3-029-620-01 WASHER
160 3-029-587-01 COVER
* 161 1-673-338-11 TC RF BOARD
162 3-938-944-01 SCREW (D)
164 3-029-618-01 SCREW
165 3-029-614-01 SCREW
166 3-029-599-01 BELT (FR)
167 3-029-598-01 BELT (BR)
168 3-029-588-01 FLYWHEEL (L)
169 3-029-625-01 WASHER
170 3-029-592-01 FLYWHEEL (R)
171 3-029-626-01 WASHER
172 3-029-589-01 TRIGGER, ARM
173 3-029-611-01 SPRING
174 3-029-593-01 CLUTCH
175 3-029-612-01 SPRING
176 3-029-594-01 ARM(UD B)
177 3-029-595-01 GEAR (UD)
178 3-029-613-01 SPRING
179 3-029-596-01 PULLEY (D)
180 3-029-627-01 WASHER
181 3-034-694-01 BOX(SW) (S301, 303, 304, 305)
182 3-034-693-01 SPRING (SW) (S301, 303, 304, 305)
183 3-029-600-01 SPACER
M160 3-034-599-01 MOTOR ASSY (CAPSTAN/REEL) (INCLUDING
PULLEY)
PH160 8-729-021-62 PHOTO INTERRUPTOR SG-211
PM160 1-454-896-11 SOLENOID, PLUNGER
S302 1-771-661-11 SWITCH, LEAF (HEAD POSITION)
151
152
153
154
155
156
157
158
159
160
161
162
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
S302
(S301, 303, 304, 305)
(S301, 303, 304, 305)
PH160
M160
PM160
not supplied
