Sony PMC-DR70L - Speaker (L-CH) Section (DR70 L Only)

– 85 –

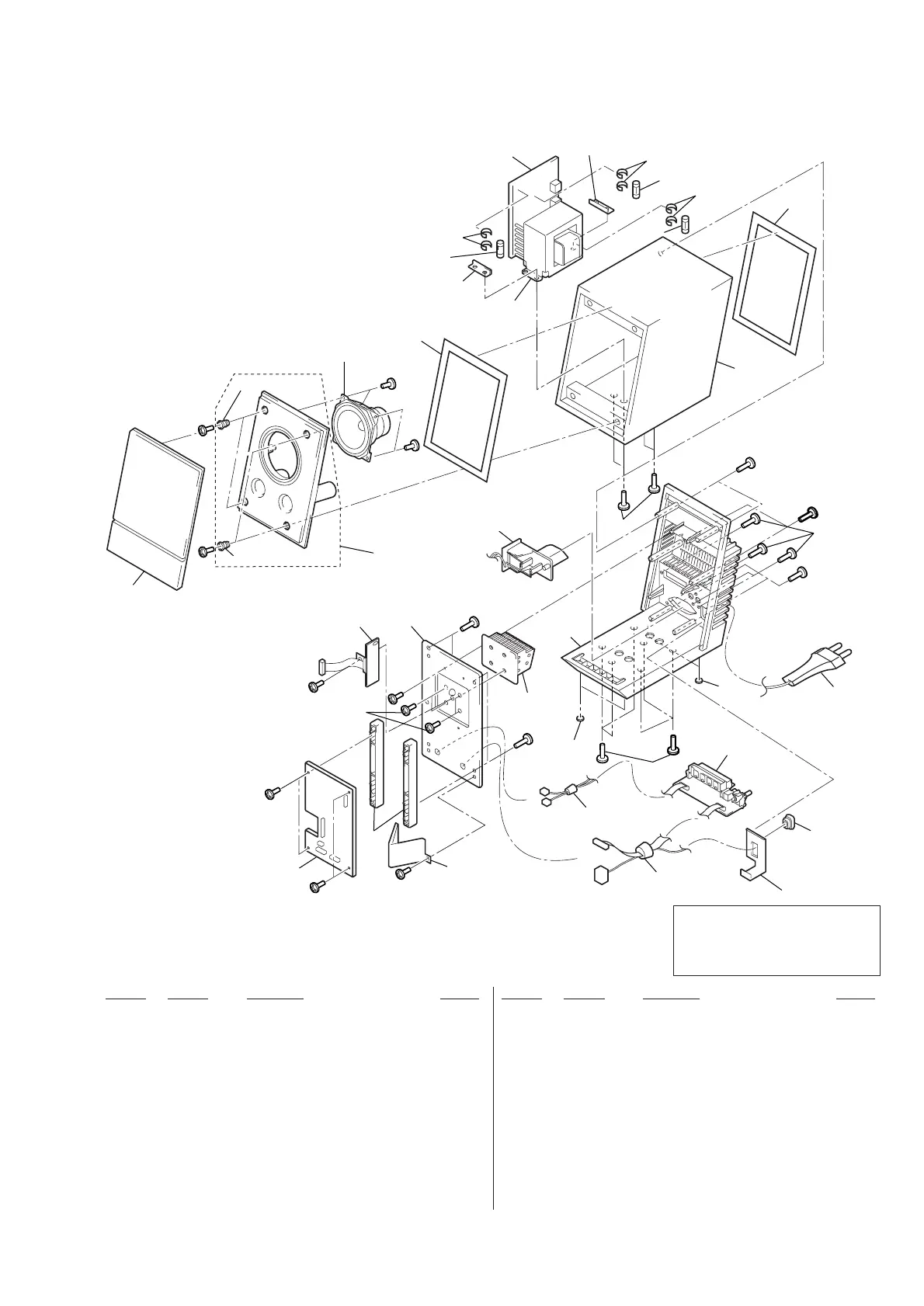

6-9. SPEAKER (L-CH) SECTION (DR70L ONLY)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 3-042-252-01 CABINET (L), BOTTOM (DR70L)
402 3-042-194-01 BOARD (L), BACK (DR70L)
* 403 1-676-425-11 SP AMP IC BOARD (DR70L)
* 404 A-3322-400-A SP MAIN BOARD, COMPLETE (DR70L)
* 405 3-042-177-01 HOLDER, PC BOARD (DR70L)
* 406 1-676-251-11 AC OUTLET BOARD (DR70L)
407 X-3378-357-1 SPEAKER GRILLE ASSY (DR70L)
408 X-3378-359-1 SUB PANEL (L) ASSY (DR70L)
* 409 3-042-180-01 SPONGE, WOOD CABINET (DR70L)
410 3-042-191-01 CABINET, WOOD (DR70L)
411 1-533-233-31 HOLDER, FUSE (DR70L)
* 412 1-676-249-11 POWER TRANSFORMER BOARD (DR70L)
* 413 3-042-179-01 SPONGE, BACK BOARD (DR70L)
* 414 3-042-178-01 FOOT, RUBBER (DR70L)
! 415 1-791-929-11 CORD, AC (DR70L)
416 1-793-863-11 HOLDER, WIRE (DR70L)
* 417 1-676-250-11 SP JACK BOARD (DR70L)
! F601 1-532-501-11 FUSE,TIMELUG (T0.8AL/250V) (DR70L)
! F602 1-532-465-11 FUSE,TIMELUG (T3.15AL/250V) (DR70L)
! F603 1-532-465-11 FUSE,TIMELUG (T3.15AL/250V) (DR70L)
SP201 1-529-581-11 SPEAKER (15W) (L-CH) (DR70L)
! T601 1-435-239-11 TRANSFORMER, POWER (DR70L)
#4
#12
#13
#13
#10
#9
#9
#9
#9
#14
#14
#9
#13
#12
#15
#9
#15
#4
401
402
403
404
405
406
407
408
409
410
411
412
413
414
414
415
416
417
not supplied
not supplied
not supplied
not supplied
F602
F603
SP201
not supplied
not supplied
not supplied
not supplied
not supplied
T601
411
F601
411
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
