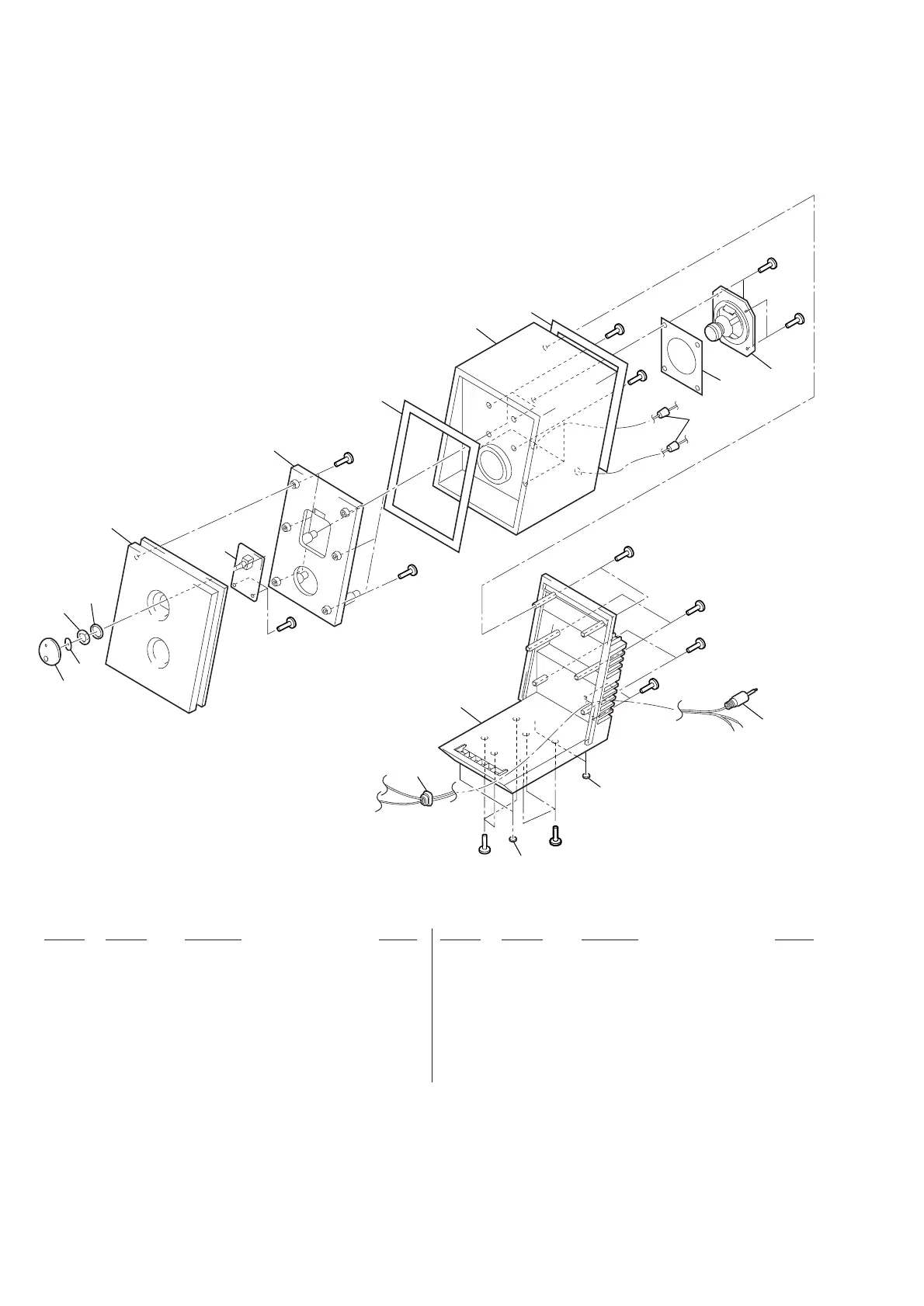

6-10. SUPER WOOFER SECTION (DR70L ONLY)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451 3-043-078-01 CABINET (SWF) BOTTOM (DR70L)
* 452 3-042-178-01 FOOT, RUBBER (DR70L)
453 3-043-085-01 STOPPER, CORD (DR70L)
* 454 1-676-257-11 LED BOARD (DR70L)
455 X-3378-361-1 KNOB ASSY, VOL (DR70L)
456 3-043-076-01 CABINET, FRONT (DR70L)
* 457 1-676-256-11 VOLUME BOARD (DR70L)
458 3-043-079-01 CHISSIS (SWF) SUB (DR70L)
459 3-043-077-01 CABINET (SWF) WOOD (DR70L)
460 3-043-084-01 SPONGE, WOOD CABINET (DR70L)
461 3-043-083-01 SPONGE, SPEAKER (DR70L)
462 3-182-957-01 WASHER (DR70L)
463 3-043-435-01 NUT (DR70L)
P601 1-793-868-11 PLUG (STEREO) (DR70L)
SP601 1-529-134-11 SPEAKER (10cm) (WOOFER) (DR70L)
#10
#10
#8
#8
#15
#9
#9
#10
#9
#10
#9
#9
#15
P601
451
452
452
453
454
455
456
462
463
457
458
459
460
461
not supplied
SP601
460
