Sony PMC-DR70L - 6 Exploded Views; Case Section

– 77 –
SECTION 6
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

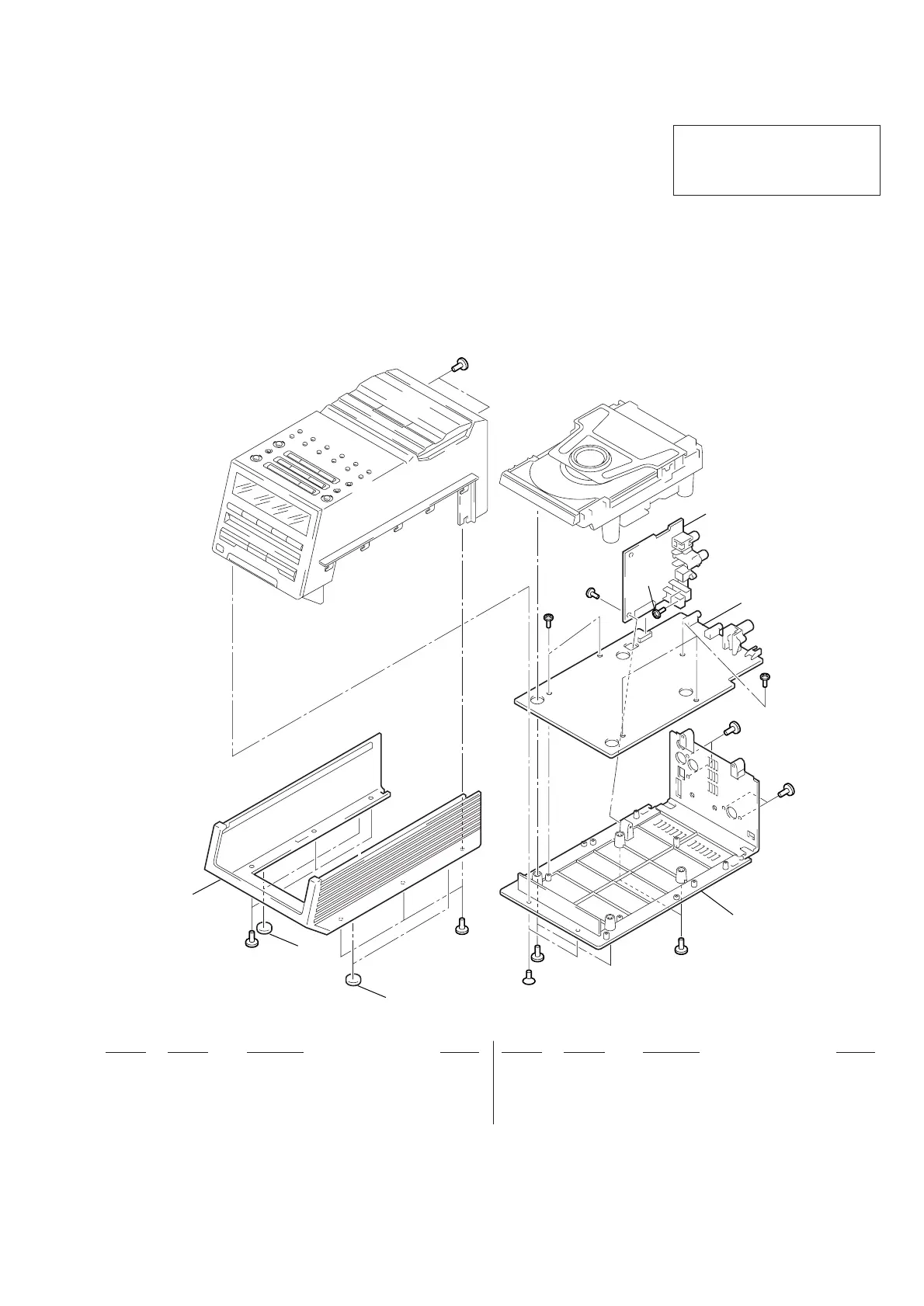

6-1. CASE SECTION
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
1 3-043-306-01 CASE(BOTTOM)
2 3-043-304-01 SUB COVER
* 3 A-3323-378-A JACK BOARD, COMPLETE (DR70L)
* 3 A-3323-406-A JACK BOARD, COMPLETE (DR50L)
* 4 A-3323-377-A MAIN BOARD, COMPLETE
* 5 3-042-178-01 FOOT, RUBBER
#2
#16
#2
#4
#2
#3
#
3
#3
#3
#3
#3
#1
1
2
3
4
5
5
