Part Identification
5
Overview
For functions and usage, see the pages in parentheses.

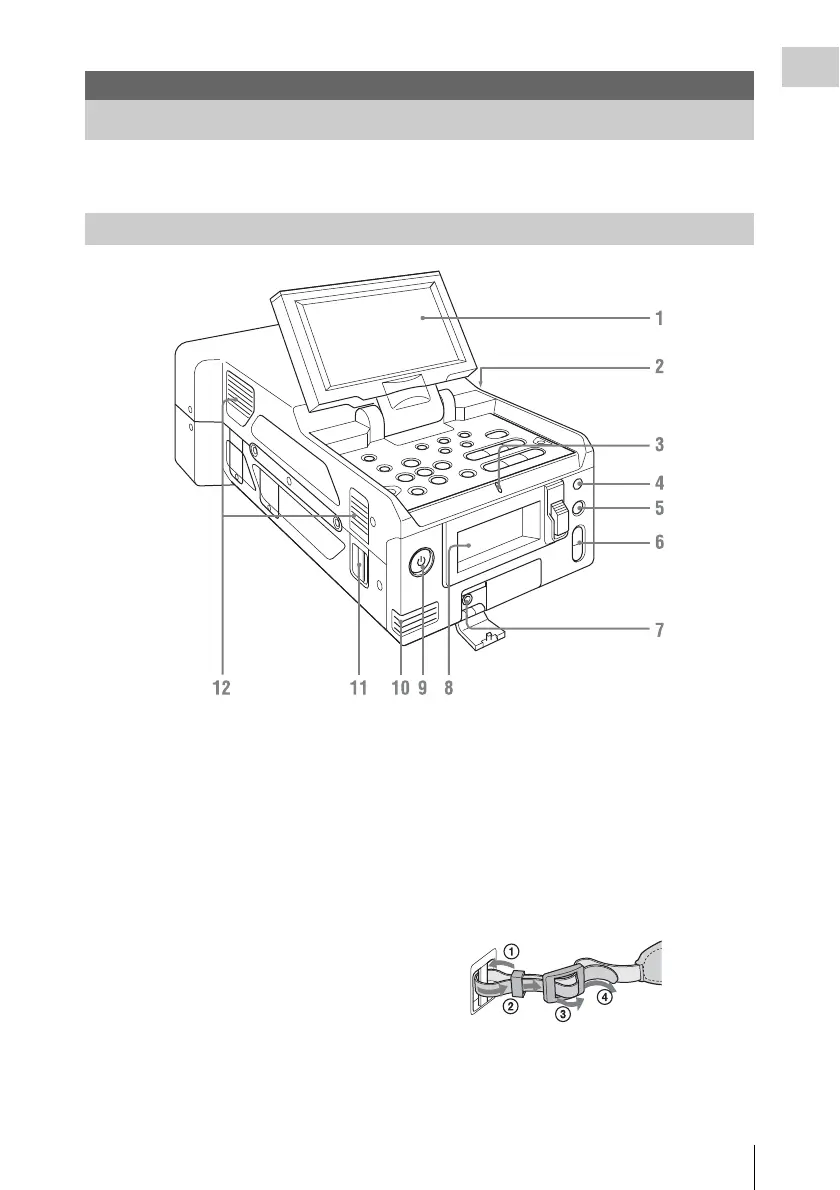

The above is an illustration with the audio input box removed. For details on the parts of the audio input box,
see “Audio Input Box (Supplied)” (page 7).
1. LCD monitor
The LCD monitor LCD can be rotated 180° in
the clockwise direction and 90° in the
counterclockwise direction when it is open. It
can also be stowed on the top surface of the
recorder with the screen facing up.
To rotate the LCD monitor, tilt it toward you
(approximately 80°) and then turn it sideways.
2. Exhaust vent
Do not block the exhaust vent.
3. TALLY lamp
4. Infrared light receiver sensor
5. SLOT SELECT button
6. VOLUME buttons
7. Headphone connector
8. Memory card slots (page 13)
9. Power button/lamp (page 12)
10. Built-in speaker
11. Shoulder strap mounting points
The supplied shoulder straps mount as shown in
the following diagram.
12. Intake vent
Do not block the intake vent.
Overview
Part Identification
Front View
To Next Page
