Sony SA-WS700RF - Specifications; Component Model Name

SERVICE MANUAL
Sony CONFIDENTIAL
For Authorized Servicer
SPECIFICATIONS
E Model
HT-S500RF/S700RF/SA-WS500RF/
WS700RF/SS-S500RF/S700RF/
SS500RF/SS700RF
Chinese Model
HT-S500RF/SA-WS500RF/
SS-S500RF/SS500RF
Russian Model
HT-S700RF/SA-WS700RF/
SS-S700RF/SS700RF
Ver. 1.1 2018.09
• All of the units included in the HT-S500RF (SA-WS500RF/SS-S500RF/
SS500RF/Remote control) or HT-S700RF (SA-WS700RF/SS-S700RF/
SS700RF/Remote control) are required to confi rming operation of SA-
WS500RF/WS700RF. Check in advance that you have all of the units.

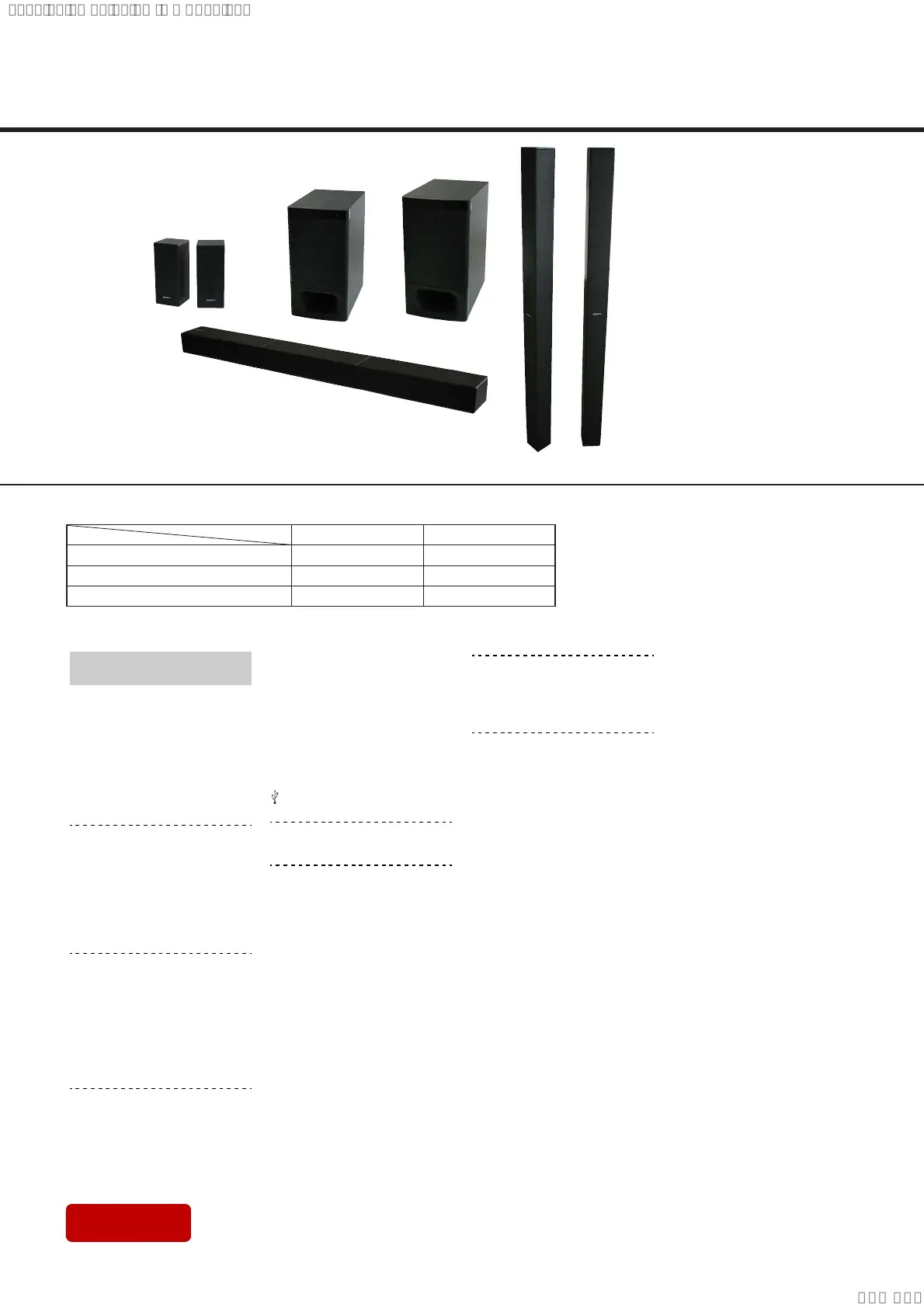

HT-S500RF/S700RF
SA-WS500RF/WS700RF/SS-S500RF/S700RF/SS500RF/SS700RF
Photo: SS-SS700RF
Photo: SA-WS700RFPhoto: SA-WS500RF
Photo: SS-SS500RF
Photo: SS-S500RF or SS-S700RF
COMPONENT MODEL NAME
HT-S500RF HT-S700RF
Subwoofer (Active Subwoofer) SA-WS500RF SA-WS700RF
Bar Speaker (Speaker System) SS-S500RF SS-S700RF
Surround Speaker (Speaker System) SS-SS500RF SS-SS700RF
HT-S500RF/S700RF
HOME THEATRE SYSTEM
SA-WS500RF/WS700RF
ACTIVE SUBWOOFER
SS-S500RF/S700RF/SS500RF/SS700RF
SPEAKER SYSTEM
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 85 W + 85 W (at
5.5 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround
R/Center: 152 W (per channel at
5.5 ohms, 1 kHz)
Subwoofer: 240 W (at 3.3 ohms,
100 Hz)
(BR)
Os valores a seguir foram medidos a 127 V
CA 60 Hz Potência de saída RMS:
Frontal E/Frontal D/Surround E/
Surround D: 49 W (a 5,5 ohms, 1 kHz,
10% THD*)
Central: 44 W (a 5,5 ohms, 1 kHz, 10%
THD*)
Subwoofer: 140 W (a 3,3 ohms, 100 Hz,
* Distorcao Harmonica Total
10% THD*)
HDMI section
Connector
Type A (19pin)
USB section
(USB) port:
Type A
Выходное напряжение:
(RU)
Постоянный ток 5 В
BLUETOOTH section
Communication system
BLUETOOTH Specification version 4.2
Output
BLUETOOTH Specification Power
Class 2
Maximum communication range
Line of sight approx. 10 m
1)
Frequency band
2.4 GHz band (2.4000 GHz -
2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
Supported Codec
3)
SBC
4)
, AAC
5)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency
32 kHz, 44.1 kHz, 48 kHz)
1)
The actual range will vary depending on
factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone use, reception
sensitivity, the operating system,
software applications, etc.
2)
BLUETOOTH standard profiles indicate
the purpose of BLUETOOTH
communication between devices.
3)
Codec: Audio signal compression and
conversion format
4)
Abbreviation for Subband Codec
5)
Abbreviation for Advanced Audio
Coding
Speaker section
Speaker system
Subwoofer system, Bass reflex
Speaker
HT-S500RF: 180 mm cone type
HT-S700RF: 200 mm cone type
General
Power requirements
220 V - 240 V AC, 50 Hz/60 Hz
(Except BR, LA)
110 V - 240 V AC, 50 Hz/60 Hz (BR, LA)
Power consumption
On: 140 W
Standby: 0.5 W or less (Power Saving
mode)
(When “CTRL” in “HDMI>” and “BTSTB”
in “BT >” are set to “OFF”)
Dimensions* (approx.) (w/h/d)
HT-S500RF: 207 mm × 402 mm ×
330 mm
HT-S700RF: 231 mm × 438 mm ×
378 mm
* Including projection portion
Mass (approx.)
HT-S500RF: 9.0 kg
HT-S700RF: 10.2 kg
Subwoofer
(SA-WS500RF/SA-WS700RF)
(CH)
(Except CH, BR)
Inputs
TV IN (OPTICAL)
USB
HDMI OUT (ARC)
ANALOG IN
Output
HDMI OUT (ARC)
(CH)
– Continued on next page –
