5-11. PRINTED WIRING BOARD - SPK JACK Board (SA-WS500RF/WS700RF) -
• : Uses unleaded solder.
• See page 23 for Circuit Boards Location.

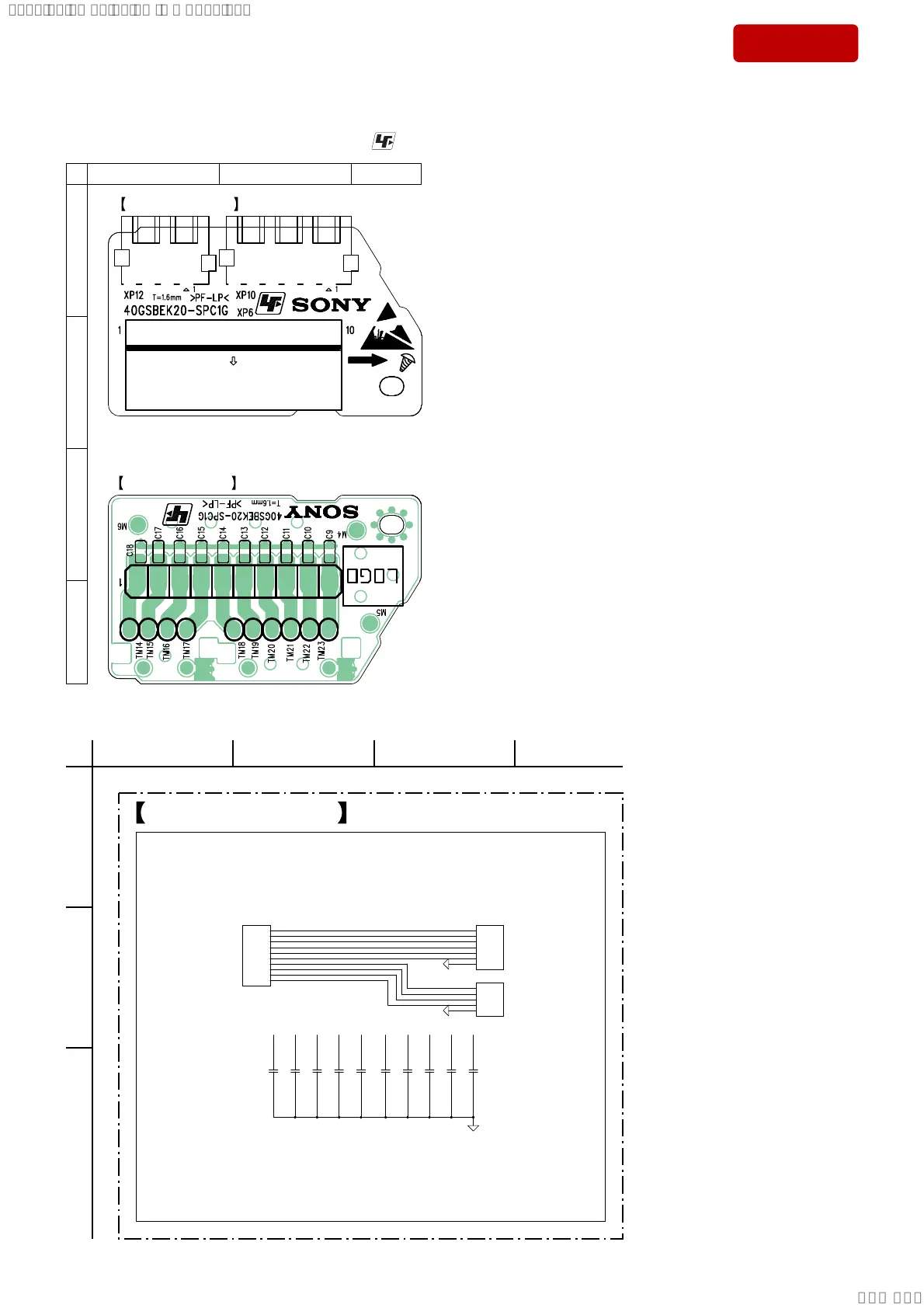

SPK JACK BOARD (COMPONENT SIDE)
SPK JACK BOARD (CONDUCTOR SIDE)
A
B
C
D
1 2 3
5-12. SCHEMATIC DIAGRAM - SPK JACK Board (SA-WS500RF/WS700RF) -
XP10
2.1ch SPK JACK
C18
0.47ȝF/50V/X5R
C13
0.47ȝF/50V/X5R
C17
0.47ȝF/50V/X5R
C16
0.47ȝF/50V/X5R
C11
0.47ȝF/50V/X5R
C12
0.47ȝF/50V/X5R
C9
0.47ȝF/50V/X5R
XP12
2.0ch SPK JACK
C15
0.47ȝF/50V/X5R
XP6
10PIN/3.96mm
C10
0.47ȝF/50V/X5R
C14
0.47ȝF/50V/X5R
R-_OUT
R+_OUT
L-_OUT
L+_OUT
C-_OUT
C+_OUT
SR-_OUT
SR+_OUT
SL-_OUT
SL+_OUT
R-_OUT R+_OUT L-_OUT L+_OUT C-_OUT C+_OUT SR-_OUT SR+_OUT SL-_OUT SL+_OUT
AMP_GND
AMP_GND
AMP_GND
1
2
3
4
5
6
7
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
A
B
C
1234
SPK JACK BOARD
