Sony SA-WS700RF - Subwoofer Front Section (SA-WS700 RF)

44
HT-S500RF/S700RF
Sony CONFIDENTIAL
For Authorized Servicer

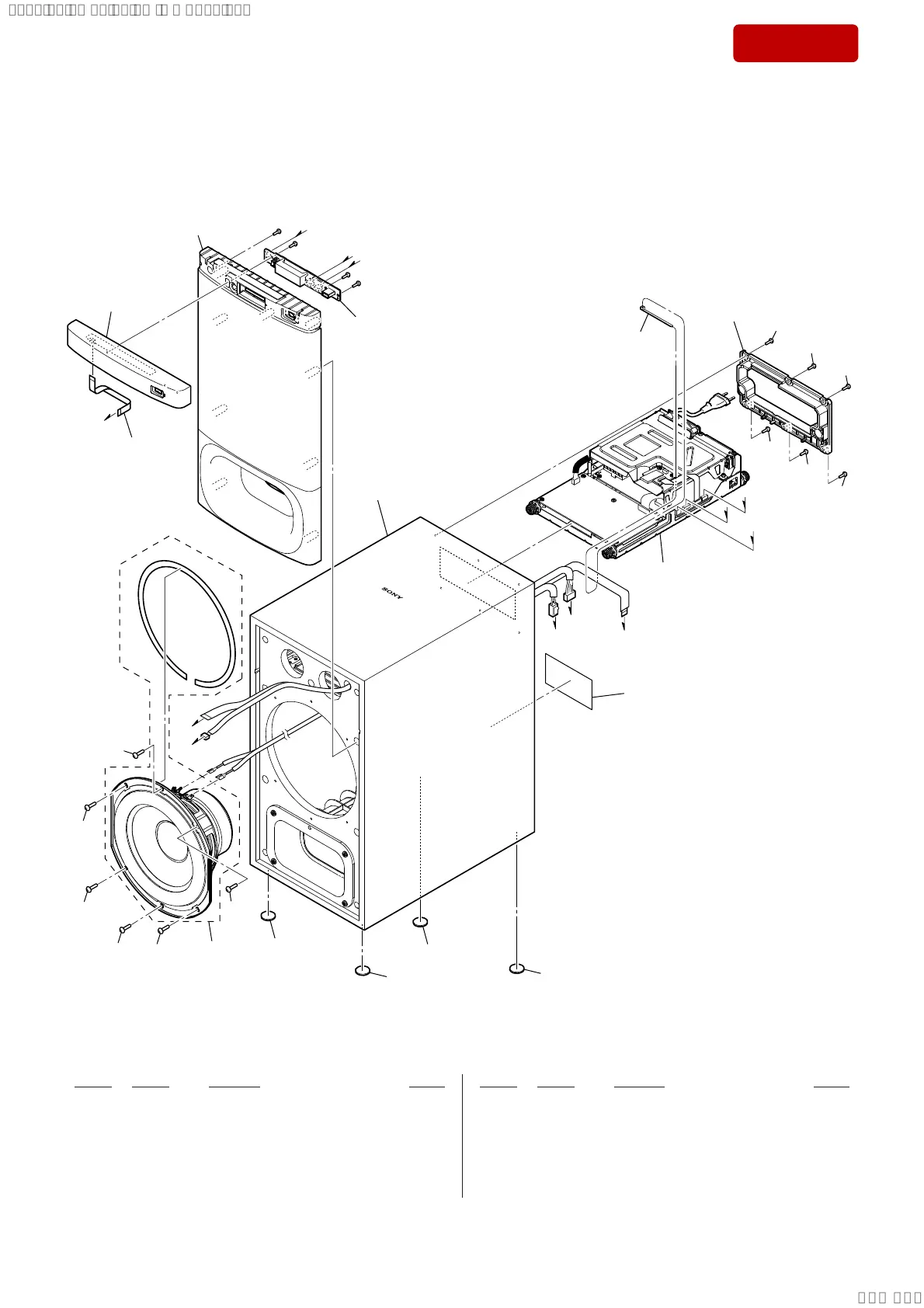

6-3. SUBWOOFER FRONT SECTION (SA-WS700RF)
Note: Refer to page 42 for the SA-WS500RF.
O
P
Q
subwoofer AMP section
O
P
Q
not supplied
(model number label)
not
supplied
L
TPN2
FFC3
SP2
103
105
106
106
106
106
106
106
L
M
N
#1
#1
#1
#1
104
101
101
101
101
M
N
not supplied
102
102
102
102
102
102
101 9-885-223-46 FOOT (SW)
102 9-885-223-90 SCREW, WOOD +R 4.1X20
103 9-885-223-59 SW PANEL (EK2)
104 9-885-223-36 FL BOARD, COMPLETE
105 4-059-585-01 TIE, CABLE
106 4-874-614-32 +BV TAPPING SCREW TYPE-1 3.5
FFC3 9-885-223-49 FFC (TOUCH) (5 core)
SP2 9-885-223-45 SW UNIT (EK2) (Including Cushion) (Subwoofer)
TPN2 9-885-223-38 LED WINDOW W TOUCH (EK2)
(Including TOUCH board, Tape)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
