Sony SA-WS700RF - Exploded Views; Subwoofer Front Section (SA-WS500 RF)

42
HT-S500RF/S700RF
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 6
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Exam-
ple:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

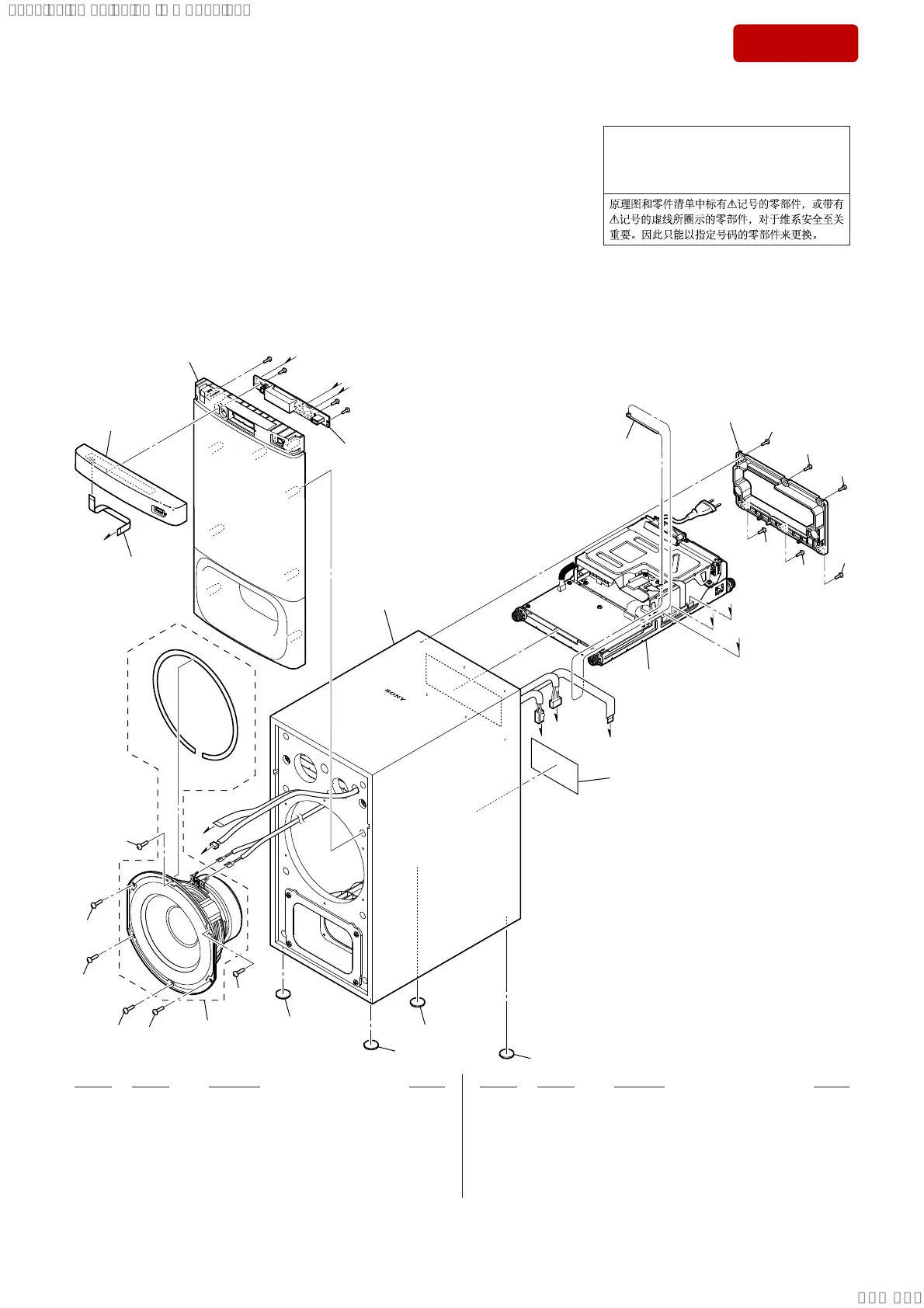

6-1. SUBWOOFER FRONT SECTION (SA-WS500RF)
Note: Refer to page 44 for the SA-WS700RF.
A
A
B
C
B
C
D
E
F
D
E
F
subwoofer AMP section
#1
not supplied
1
not supplied
(model number label)
not supplied
TPN1
FFC1
#1
#1
#1
1
1
1
2
2
2
2
2
2
3
4
5
6
6
6
6
6
6
SP1
1 9-885-223-46 FOOT (SW)
2 9-885-223-90 SCREW, WOOD +R 4.1X20
3 9-885-223-47 SW PANEL (EK1)
4 9-885-223-36 FL BOARD, COMPLETE
5 4-059-585-01 TIE, CABLE
6 4-874-614-32 +BV TAPPING SCREW TYPE-1 3.5
FFC1 9-885-223-49 FFC (TOUCH) (5 core)
SP1 9-885-223-44 SW UNIT (EK1) (Including Cushion) (Subwoofer)
TPN1 9-885-223-37 LED WINDOW W TOUCH (EK1)
(Including TOUCH board, Tape)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Ver. 1.1
