HT-S500RF/S700RF
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 8
ACCESSORIES
4-735-136-11 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH) (IND)
4-735-136-21 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, FRENCH, PERSIAN, ARABIC) (E3)
4-735-136-31 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, TRADITIONAL CHINESE) (SP)
4-735-136-41 MANUAL, INSTRUCTION (Operating Instructions)
(SIMPLIFIED CHINESE) (CH)
4-735-136-51 MANUAL, INSTRUCTION (Operating Instructions)
(SPANISH) (AR, LA)
4-735-136-71 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, ARABIC) (EA)
501 1-493-485-11 REMOTE COMMANDER RMT-AH412U
(Remote control)
502 9-885-223-56 HDMI CABLE (HDMI cable)
0 503 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA)
4-735-136-11 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH) (IND)
4-735-136-21 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, FRENCH, PERSIAN, ARABIC) (E3)
4-735-136-31 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, TRADITIONAL CHINESE) (SP)
4-735-136-51 MANUAL, INSTRUCTION (Operating Instructions)
(SPANISH) (LA)
4-735-136-61 MANUAL, INSTRUCTION (Operating Instructions)
(THAI) (TH)
4-735-136-71 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH, ARABIC) (EA)
4-735-136-81 MANUAL, INSTRUCTION (Operating Instructions)
(PORTUGUESE) (BR)
4-735-136-91 MANUAL, INSTRUCTION (Operating Instructions)
(RUSSIAN) (RU)
501 1-493-485-11 REMOTE COMMANDER RMT-AH412U
(Remote control)
502 9-885-223-56 HDMI CABLE (HDMI cable)
0 503 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA)
504 9-885-223-58 BASE ASSY (Speaker base) (1 piece)
505 9-885-223-54 FOOT (EK2 REAR) (Foot for speaker base) (1 piece)
506 9-885-223-57 BASE SCREW ASSY (Screws for speaker base)
(8 pieces, 1 set)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HT-S500RF HT-S700RF
501
Remote control (1)
502
HDMI cable (1)
503
AC plug adaptor (1)
(LA)
505
505
505
505
505
505
505
505
505
505
505
505
501
Remote control (1)
502
HDMI cable (1)
506
Screws (1 set)
Speaker base (2)
504 504
503
AC plug adaptor (1)
(LA)

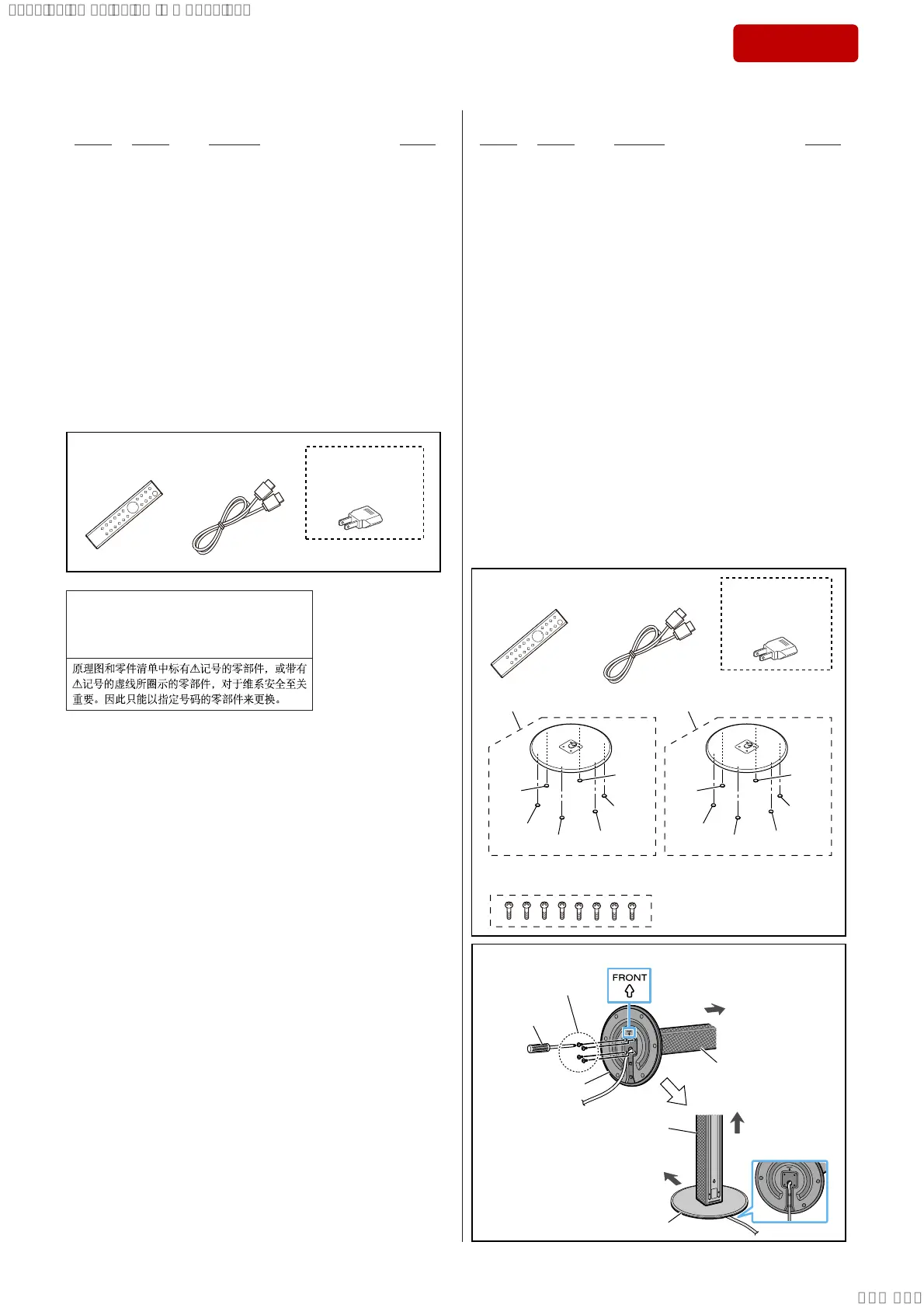

– Bottom view –
speaker base
+RZWRLQVWDOOWKHVSHDNHUEDVH
screw driver
surround speaker
top side
top side
four screws
front side
speaker base
surround speaker
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
