Sony SA-WS700RF - Bar and Surround Speaker Section (SS-S500 RF;SS500 RF)

46
HT-S500RF/S700RF
Sony CONFIDENTIAL
For Authorized Servicer

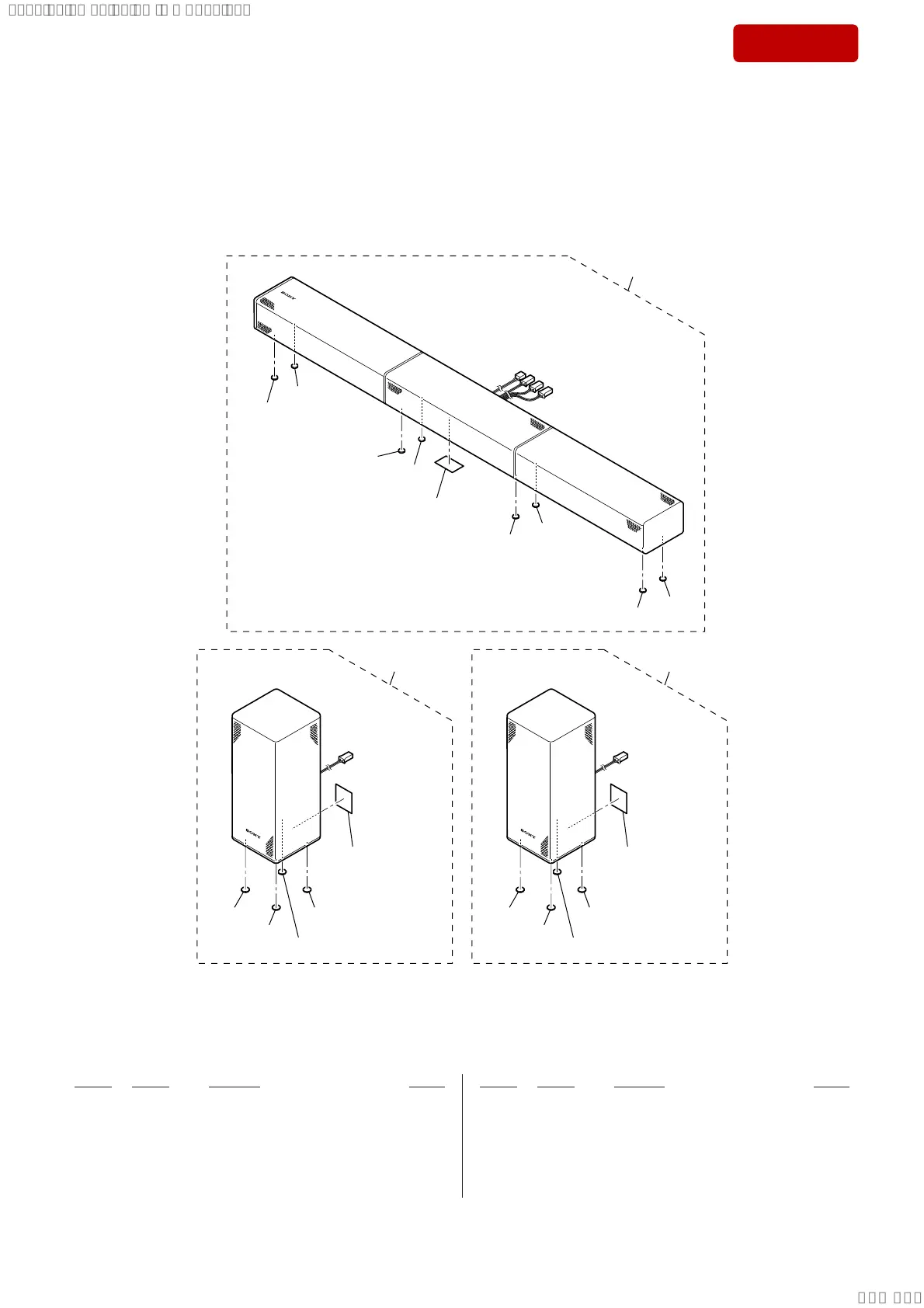

6-5. BAR SPEAKER, SURROUND SPEAKER SECTION (SS-S500RF/SS500RF)
Note: Refer to page 47 for the SS-S700RF/SS700RF.
model number label
201
SP201
201
201
201
201
201
201
201
SP202
202
202
202
202
model number label
SP203
202
202
202
202
model number label
– L-ch – – R-ch –
201 9-885-223-52 FOOT (BAR) (1 piece) (SS-S500RF)
202 9-885-223-53 FOOT (EK1 REAR) (1 piece) (SS-SS500RF)
SP201 A-2223-100-A MAIN (SS-S500RF) (Bar speaker)
(SS-S500RF: E3, EA, SP, AR, IND, LA)
SP201 A-2223-101-A MAIN (SS-S500RF) (Bar speaker) (SS-S500RF: CH)
SP202 A-2223-102-A MAIN (SS-SS500RF SL) (Surround speaker for L-ch)
(SS-SS500RF: E3, EA, SP, AR, IND, LA)
SP202 A-2223-103-A MAIN (SS-SS500RF SL) (Surround speaker for L-ch)
(SS-SS500RF: CH)
SP203 A-2223-104-A MAIN (SS-SS500RF SR) (Surround speaker for R-ch)
(SS-SS500RF: E3, EA, SP, AR, IND, LA)
SP203 A-2223-105-A MAIN (SS-SS500RF SR) (Surround speaker for R-ch)
(SS-SS500RF: CH)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
