Sony SA-WS700RF - Catcher Rubber & Rear Panel Removal

HT-S500RF/S700RF
9
Sony CONFIDENTIAL
For Authorized Servicer
Note: Follow the disassembly procedure in the numerical order given.

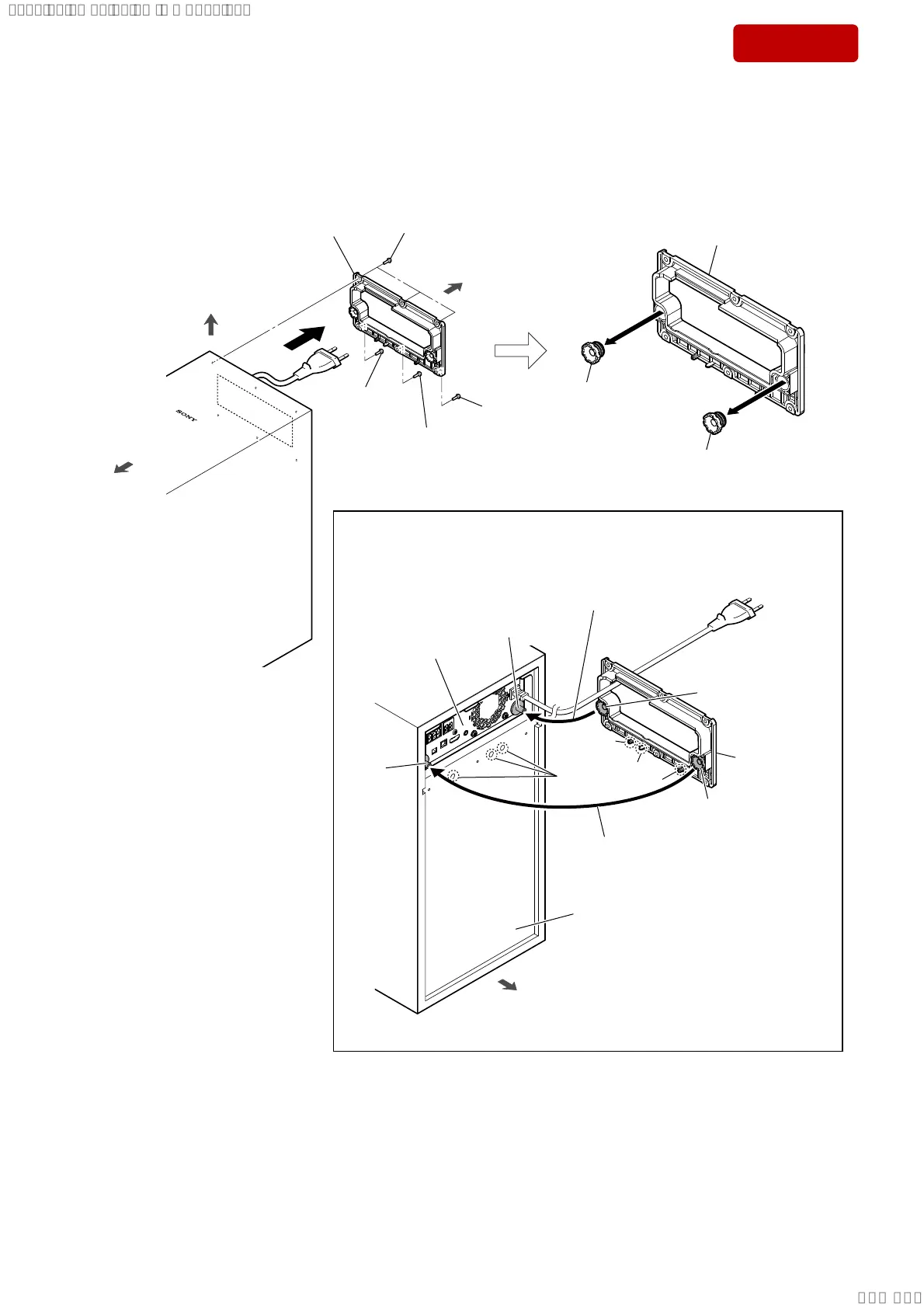

2-2. CATCHER RUBBER (REAR SIDE), REAR PANEL
2
1 three screws
(BVTP3.5)
rear side
1 screw
(BVTP3.5)
1 screw
(BVTP3.5)
1 screw
(BVTP3.5)
3 rear panel block
(See Fig. A)
5 rear panel
4 catcher
rubber
4 catcher
rubber
front side
top side
+RZWRLQVWDOOWKHUHDUSDQHOEORFN
)LJ$!
Note 1:
When installing the rear panel block, align the three holes and three bosses.
shaft
shaft
catcher rubber
catcher rubber
rear panel block
AMP block
rear side
three
holes
boss
boss
boss
Note 2:
Align the shaft and
catcher rubber.
Note 2:
Align the shaft and
catcher rubber.
speaker cabinet
SYSSET
