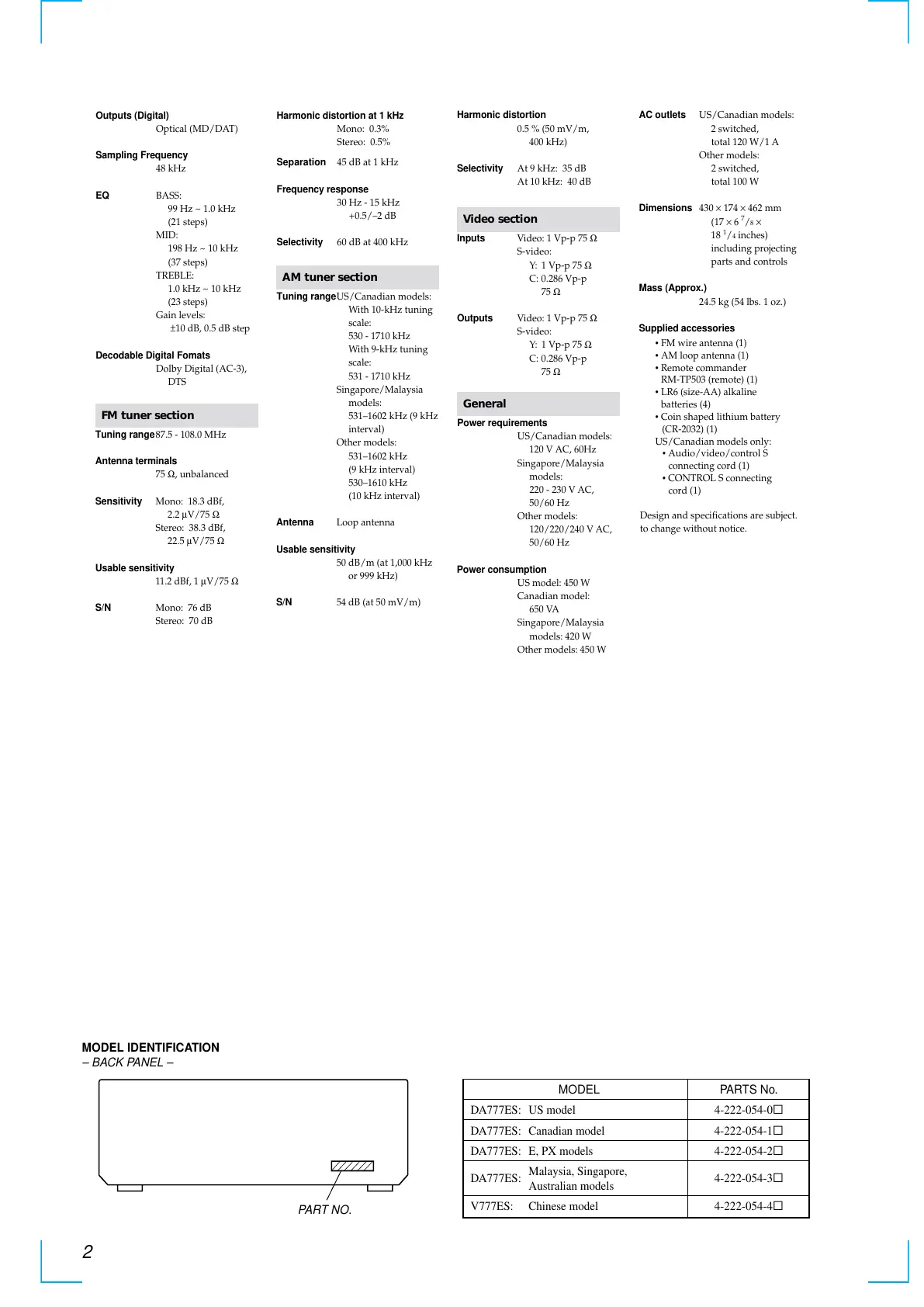

Sony STR-DA777ES - Model Identification

2
MODEL
DA777ES: US model
DA777ES: Canadian model
DA777ES: E, PX models
DA777ES:
Malaysia, Singapore,
Australian models
V777ES: Chinese model
PARTS No.
4-222-054-0s
4-222-054-1s
4-222-054-2s
4-222-054-3s
4-222-054-4s
PART NO.
MODEL IDENTIFICATION
– BACK PANEL –
FM tuner section
Tuning range87.5 - 108.0 MHz
Antenna terminals
75 Ω, unbalanced
Sensitivity Mono: 18.3 dBf,
2.2 µV/75 Ω
Stereo: 38.3 dBf,
22.5 µV/75 Ω
Usable sensitivity
11.2 dBf, 1 µV/75 Ω
S/N Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response
30 Hz - 15 kHz
+0.5/–2 dB
Selectivity 60 dB at 400 kHz
AM tuner section
Tuning rangeUS/Canadian models:
With 10-kHz tuning
scale:
530 - 1710 kHz
With 9-kHz tuning
scale:
531 - 1710 kHz
Singapore/Malaysia
models:
531–1602 kHz (9 kHz
interval)
Other models:
531–1602 kHz
(9 kHz interval)
530–1610 kHz
(10 kHz interval)
Antenna Loop antenna
Usable sensitivity
50 dB/m (at 1,000 kHz
or 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion
0.5 % (50 mV/m,
400 kHz)
Selectivity At 9 kHz: 35 dB
At 10 kHz: 40 dB
Video section
Inputs Video: 1 Vp-p 75 Ω
S-video:
Y: 1 Vp-p 75 Ω
C: 0.286 Vp-p
75 Ω
Outputs Video: 1 Vp-p 75 Ω
S-video:
Y: 1 Vp-p 75 Ω
C: 0.286 Vp-p
75 Ω
General
Power requirements
US/Canadian models:
120 V AC, 60Hz
Singapore/Malaysia
models:
220 - 230 V AC,
50/60 Hz
Other models:
120/220/240 V AC,
50/60 Hz
Power consumption
US model: 450 W
Canadian model:
650 VA
Singapore/Malaysia
models: 420 W
Other models: 450 W
AC outlets US/Canadian models:
2 switched,
total 120 W/1 A
Other models:
2 switched,
total 100 W
Dimensions 430 × 174 × 462 mm
(17 × 6
7
/8 ×
18
1
/4 inches)
including projecting
parts and controls
Mass (Approx.)
24.5 kg (54 lbs. 1 oz.)
Supplied accessories
Design and specifications are subject.
to change without notice.
• FM wire antenna (1)
• AM loop antenna (1)
• Remote commander
RM-TP503 (remote) (1)
• LR6 (size-AA) alkaline
batteries (4)
• Coin shaped lithium battery
(CR-2032) (1)
US/Canadian models only:
• Audio/video/control S
connecting cord (1)
• CONTROL S connecting
cord (1)
Outputs (Digital)
Optical (MD/DAT)
Sampling Frequency
48 kHz
EQ BASS:
99 Hz ~ 1.0 kHz
(21 steps)
MID:
198 Hz ~ 10 kHz
(37 steps)
TREBLE:
1.0 kHz ~ 10 kHz
(23 steps)
Gain levels:
±10 dB, 0.5 dB step
Decodable Digital Fomats
Dolby Digital (AC-3),
DTS
