Sony STR-DA777ES - Chassis Section

53
not supplied
not supplied
T901
not supplied
Back panel section
not supplied
supplied with RV310
RV310
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#2
#6
#2
#3
#1
a
a
b
c
e
b
c
e
d
d
51
52
54
57
57
54
53
52
56
62
62
62
62
62
62
62
62
62
62
62
62
62
62
62
62
55
58
63
59
59
60
61

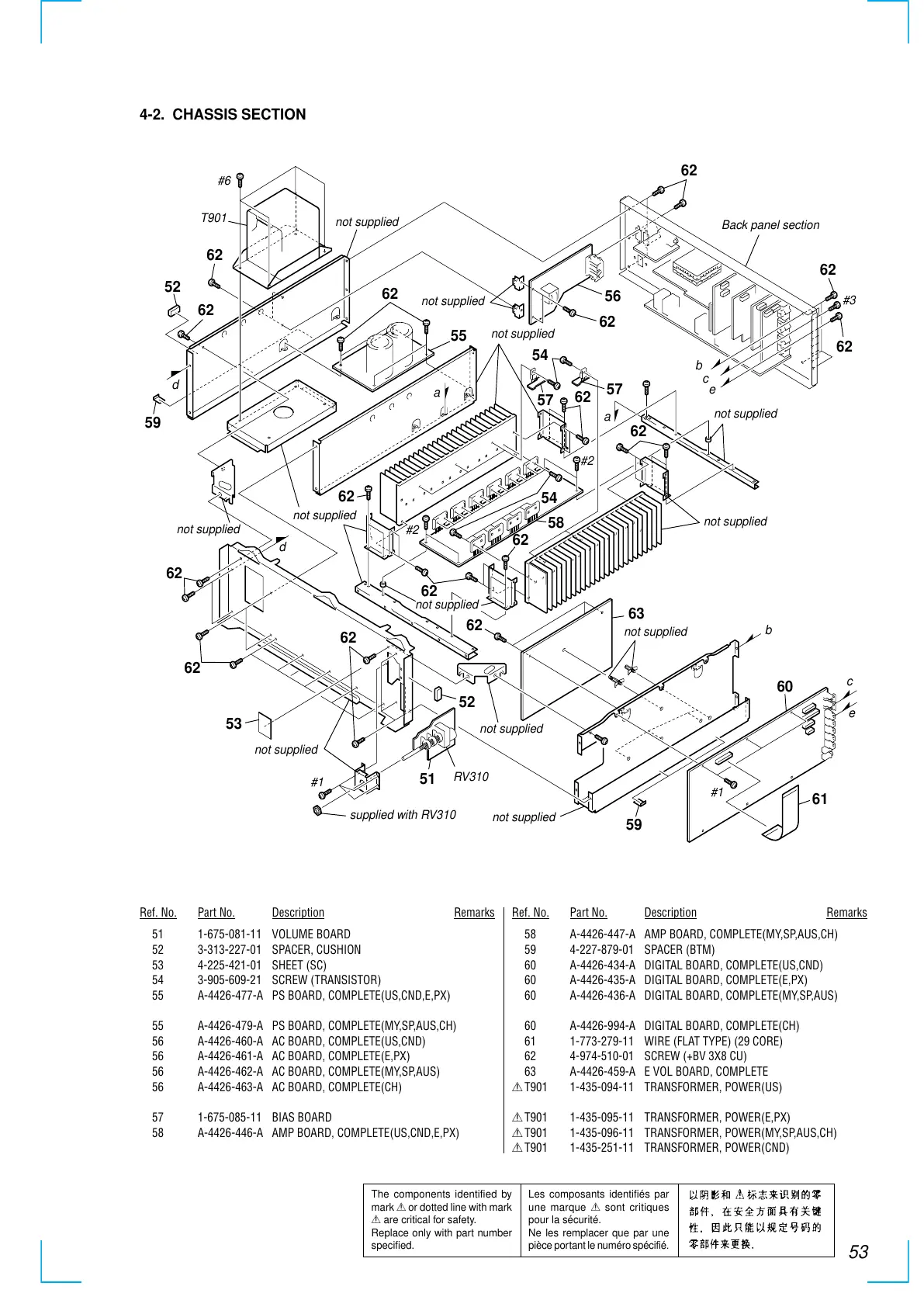

4-2. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
51 1-675-081-11 VOLUME BOARD
52 3-313-227-01 SPACER, CUSHION
53 4-225-421-01 SHEET (SC)
54 3-905-609-21 SCREW (TRANSISTOR)
55 A-4426-477-A PS BOARD, COMPLETE(US,CND,E,PX)
55 A-4426-479-A PS BOARD, COMPLETE(MY,SP,AUS,CH)
56 A-4426-460-A AC BOARD, COMPLETE(US,CND)
56 A-4426-461-A AC BOARD, COMPLETE(E,PX)
56 A-4426-462-A AC BOARD, COMPLETE(MY,SP,AUS)
56 A-4426-463-A AC BOARD, COMPLETE(CH)
57 1-675-085-11 BIAS BOARD
58 A-4426-446-A AMP BOARD, COMPLETE(US,CND,E,PX)
58 A-4426-447-A AMP BOARD, COMPLETE(MY,SP,AUS,CH)
59 4-227-879-01 SPACER (BTM)
60 A-4426-434-A DIGITAL BOARD, COMPLETE(US,CND)
60 A-4426-435-A DIGITAL BOARD, COMPLETE(E,PX)
60 A-4426-436-A DIGITAL BOARD, COMPLETE(MY,SP,AUS)
60 A-4426-994-A DIGITAL BOARD, COMPLETE(CH)
61 1-773-279-11 WIRE (FLAT TYPE) (29 CORE)
62 4-974-510-01 SCREW (+BV 3X8 CU)
63 A-4426-459-A E VOL BOARD, COMPLETE
0T901 1-435-094-11 TRANSFORMER, POWER(US)
0T901 1-435-095-11 TRANSFORMER, POWER(E,PX)
0T901 1-435-096-11 TRANSFORMER, POWER(MY,SP,AUS,CH)
0T901 1-435-251-11 TRANSFORMER, POWER(CND)
