Sony STR-DA777ES - Component Information and Parts List; Exploded Views of Unit Sections

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
AUS : Australian model
MY : Malaysia model
SP : Singapore model
CH : Chinese model
SECTION 4
EXPLODED VIEWS
52
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Front panel section
Chassis section
not supplied
not supplied
not supplied
#7
#10
#7
4
8
5
1
2
3
6
7
2
1
5
8
8
8

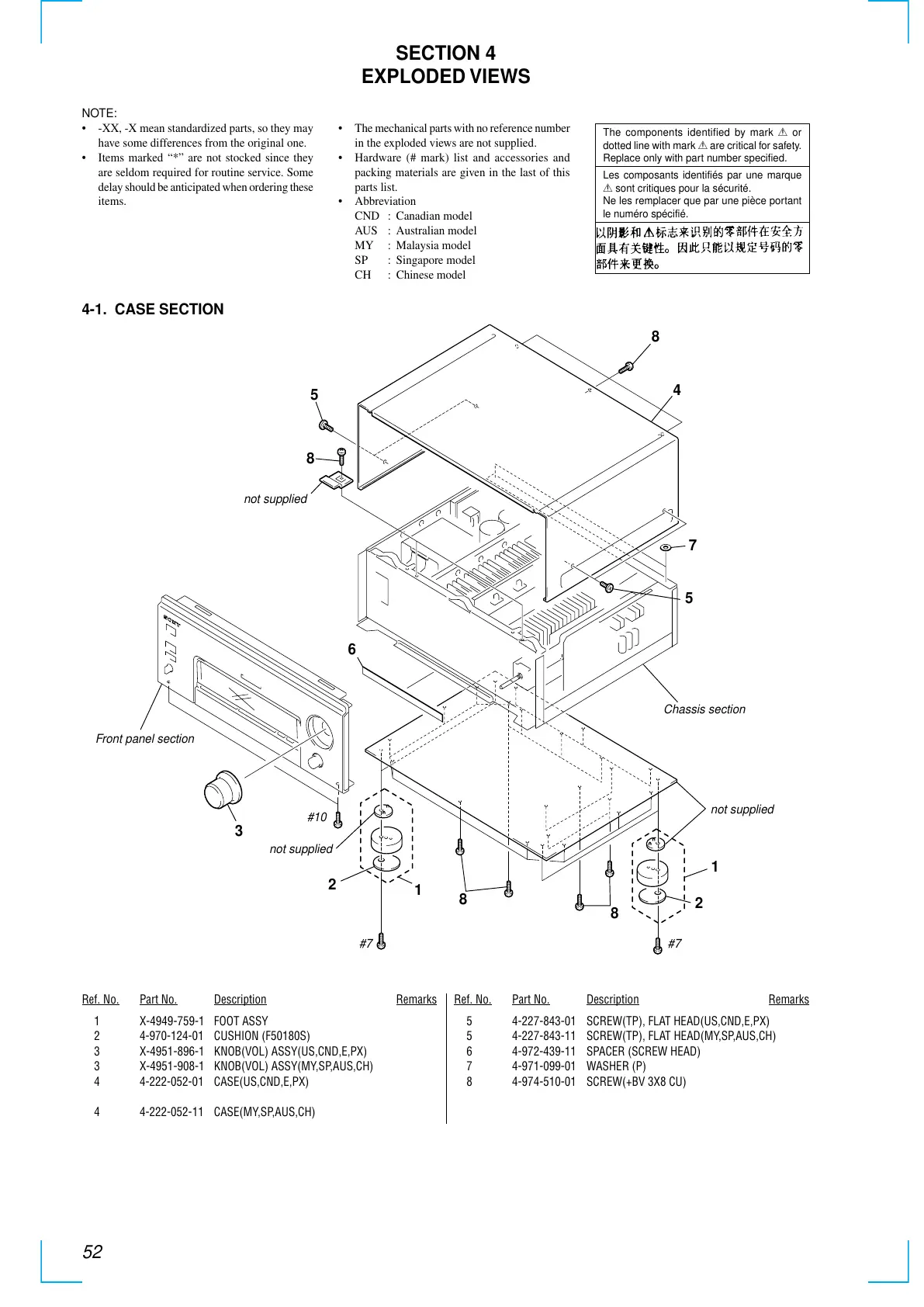

4-1. CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4949-759-1 FOOT ASSY
2 4-970-124-01 CUSHION (F50180S)
3 X-4951-896-1 KNOB(VOL) ASSY(US,CND,E,PX)
3 X-4951-908-1 KNOB(VOL) ASSY(MY,SP,AUS,CH)
4 4-222-052-01 CASE(US,CND,E,PX)
4 4-222-052-11 CASE(MY,SP,AUS,CH)
5 4-227-843-01 SCREW(TP), FLAT HEAD(US,CND,E,PX)
5 4-227-843-11 SCREW(TP), FLAT HEAD(MY,SP,AUS,CH)
6 4-972-439-11 SPACER (SCREW HEAD)
7 4-971-099-01 WASHER (P)
8 4-974-510-01 SCREW(+BV 3X8 CU)
