Sony STR-DA777ES User Manual

STR-DA777ES/V777ES
2929

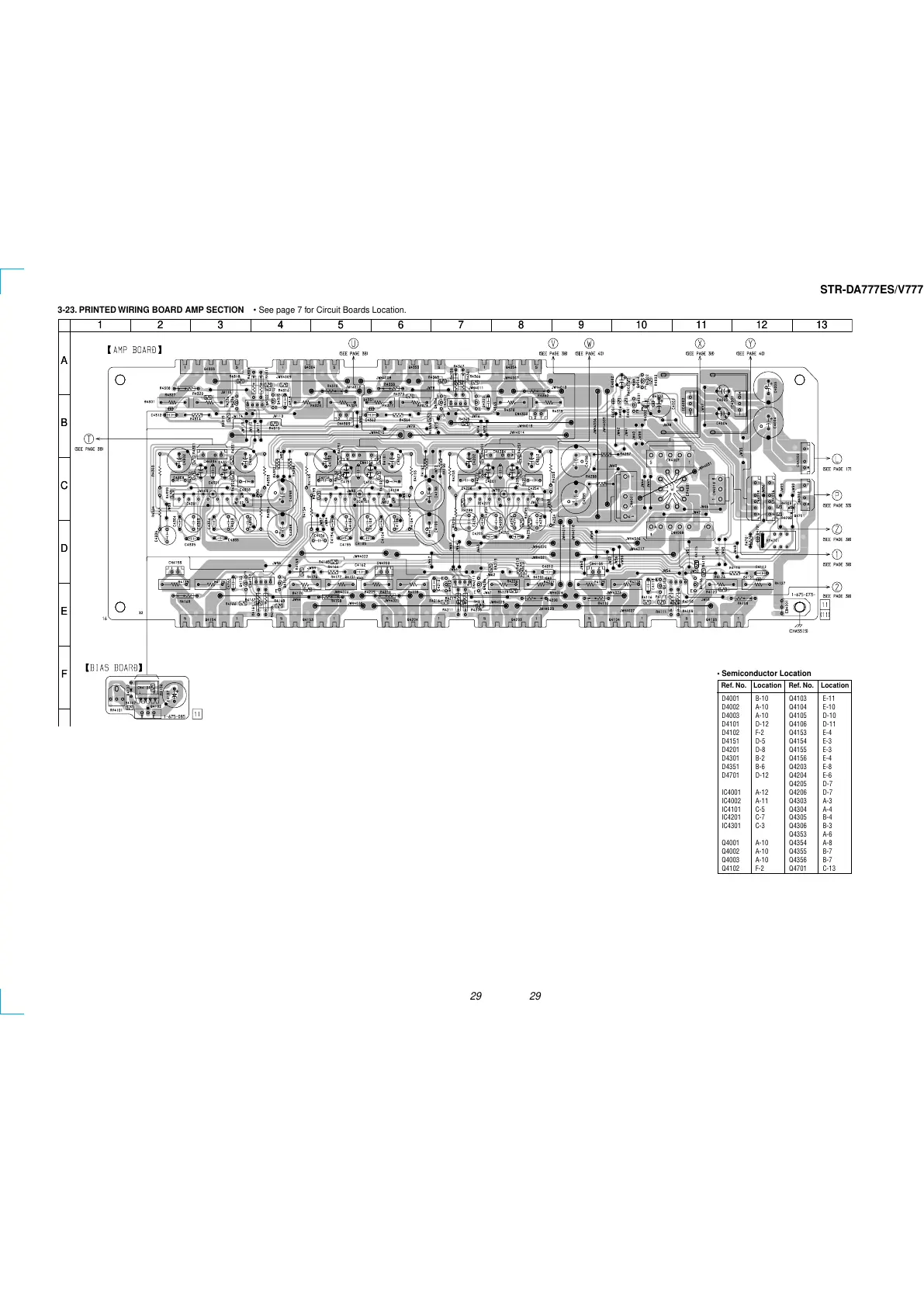

3-23. PRINTED WIRING BOARD AMP SECTION • See page 7 for Circuit Boards Location.
12
A
B
C
D
E
F
34567891011121312
A
B
C
D
E
F
345678910111213
• Semiconductor Location
Ref. No. Location
D4001 B-10
D4002 A-10
D4003 A-10
D4101 D-12
D4102 F-2
D4151 D-5
D4201 D-8
D4301 B-2
D4351 B-6
D4701 D-12
IC4001 A-12
IC4002 A-11
IC4101 C-5
IC4201 C-7
IC4301 C-3
Q4001 A-10
Q4002 A-10
Q4003 A-10
Q4102 F-2
Q4103 E-11
Q4104 E-10
Q4105 D-10
Q4106 D-11
Q4153 E-4
Q4154 E-3
Q4155 E-3
Q4156 E-4
Q4203 E-8
Q4204 E-6
Q4205 D-7
Q4206 D-7
Q4303 A-3
Q4304 A-4
Q4305 B-4
Q4306 B-3
Q4353 A-6
Q4354 A-8
Q4355 B-7
Q4356 B-7
Q4701 C-13
Ref. No. Location
