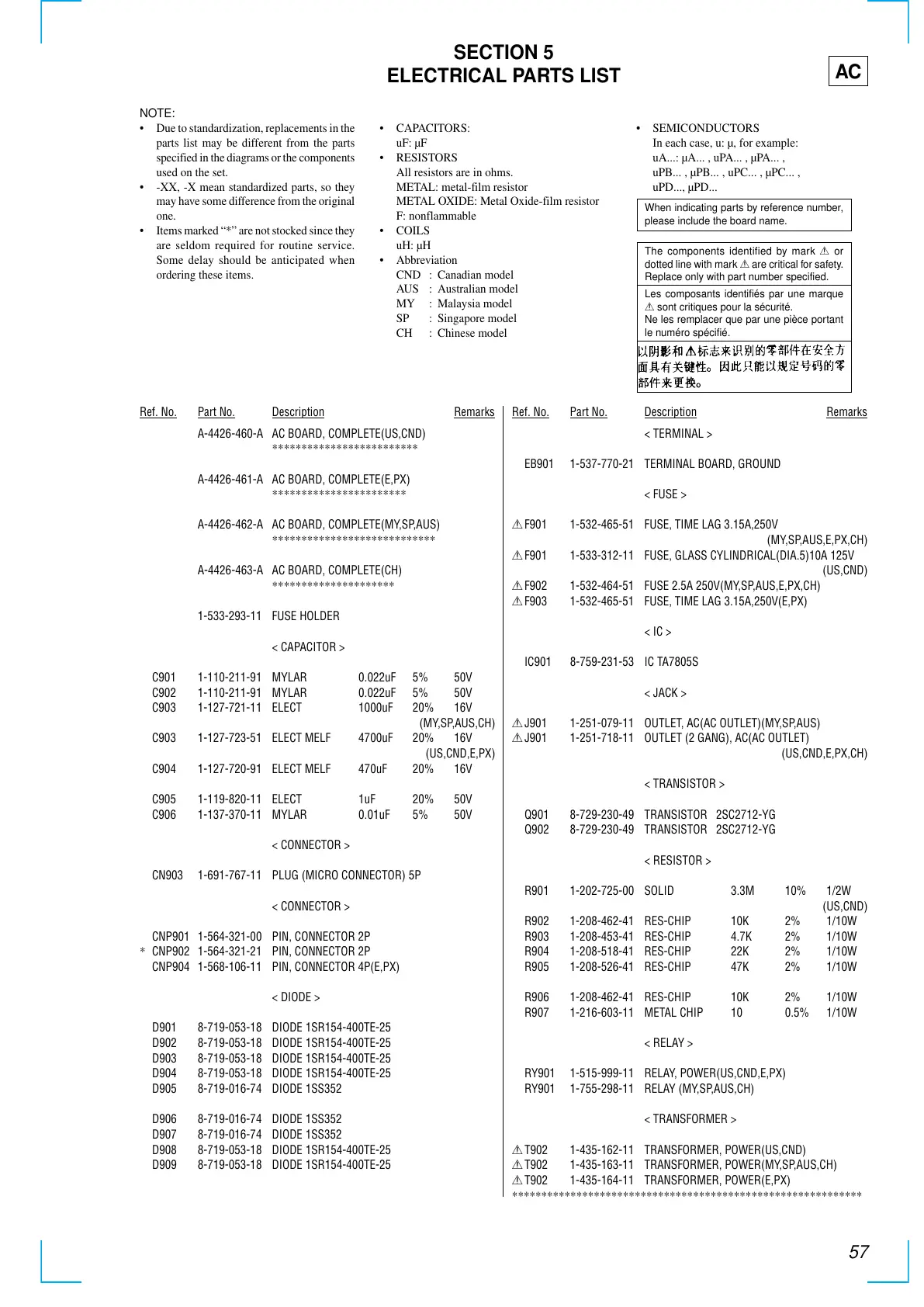

SECTION 5
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS:
uF: µF
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• Abbreviation
CND : Canadian model
AUS : Australian model
MY : Malaysia model
SP : Singapore model
CH : Chinese model
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
A-4426-460-A AC BOARD, COMPLETE(US,CND)
*************************
A-4426-461-A AC BOARD, COMPLETE(E,PX)
***********************
A-4426-462-A AC BOARD, COMPLETE(MY,SP,AUS)
****************************
A-4426-463-A AC BOARD, COMPLETE(CH)
*********************
1-533-293-11 FUSE HOLDER
< CAPACITOR >
C901 1-110-211-91 MYLAR 0.022uF 5% 50V
C902 1-110-211-91 MYLAR 0.022uF 5% 50V
C903 1-127-721-11 ELECT 1000uF 20% 16V
(MY,SP,AUS,CH)
C903 1-127-723-51 ELECT MELF 4700uF 20% 16V
(US,CND,E,PX)
C904 1-127-720-91 ELECT MELF 470uF 20% 16V
C905 1-119-820-11 ELECT 1uF 20% 50V
C906 1-137-370-11 MYLAR 0.01uF 5% 50V
< CONNECTOR >
CN903 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
< CONNECTOR >
CNP901 1-564-321-00 PIN, CONNECTOR 2P
* CNP902 1-564-321-21 PIN, CONNECTOR 2P
CNP904 1-568-106-11 PIN, CONNECTOR 4P(E,PX)
< DIODE >
D901 8-719-053-18 DIODE 1SR154-400TE-25
D902 8-719-053-18 DIODE 1SR154-400TE-25
D903 8-719-053-18 DIODE 1SR154-400TE-25
D904 8-719-053-18 DIODE 1SR154-400TE-25
D905 8-719-016-74 DIODE 1SS352
D906 8-719-016-74 DIODE 1SS352
D907 8-719-016-74 DIODE 1SS352
D908 8-719-053-18 DIODE 1SR154-400TE-25
D909 8-719-053-18 DIODE 1SR154-400TE-25
< TERMINAL >
EB901 1-537-770-21 TERMINAL BOARD, GROUND
< FUSE >
0F901 1-532-465-51 FUSE, TIME LAG 3.15A,250V
(MY,SP,AUS,E,PX,CH)
0F901 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A 125V
(US,CND)
0F902 1-532-464-51 FUSE 2.5A 250V(MY,SP,AUS,E,PX,CH)
0F903 1-532-465-51 FUSE, TIME LAG 3.15A,250V(E,PX)
< IC >
IC901 8-759-231-53 IC TA7805S
< JACK >
0J901 1-251-079-11 OUTLET, AC(AC OUTLET)(MY,SP,AUS)
0J901 1-251-718-11 OUTLET (2 GANG), AC(AC OUTLET)
(US,CND,E,PX,CH)
< TRANSISTOR >
Q901 8-729-230-49 TRANSISTOR 2SC2712-YG
Q902 8-729-230-49 TRANSISTOR 2SC2712-YG
< RESISTOR >
R901 1-202-725-00 SOLID 3.3M 10% 1/2W
(US,CND)
R902 1-208-462-41 RES-CHIP 10K 2% 1/10W
R903 1-208-453-41 RES-CHIP 4.7K 2% 1/10W
R904 1-208-518-41 RES-CHIP 22K 2% 1/10W
R905 1-208-526-41 RES-CHIP 47K 2% 1/10W
R906 1-208-462-41 RES-CHIP 10K 2% 1/10W
R907 1-216-603-11 METAL CHIP 10 0.5% 1/10W
< RELAY >
RY901 1-515-999-11 RELAY, POWER(US,CND,E,PX)
RY901 1-755-298-11 RELAY (MY,SP,AUS,CH)
< TRANSFORMER >
0T902 1-435-162-11 TRANSFORMER, POWER(US,CND)
0T902 1-435-163-11 TRANSFORMER, POWER(MY,SP,AUS,CH)
0T902 1-435-164-11 TRANSFORMER, POWER(E,PX)
************************************************************
