STR-DA777ES/V777ES
4040

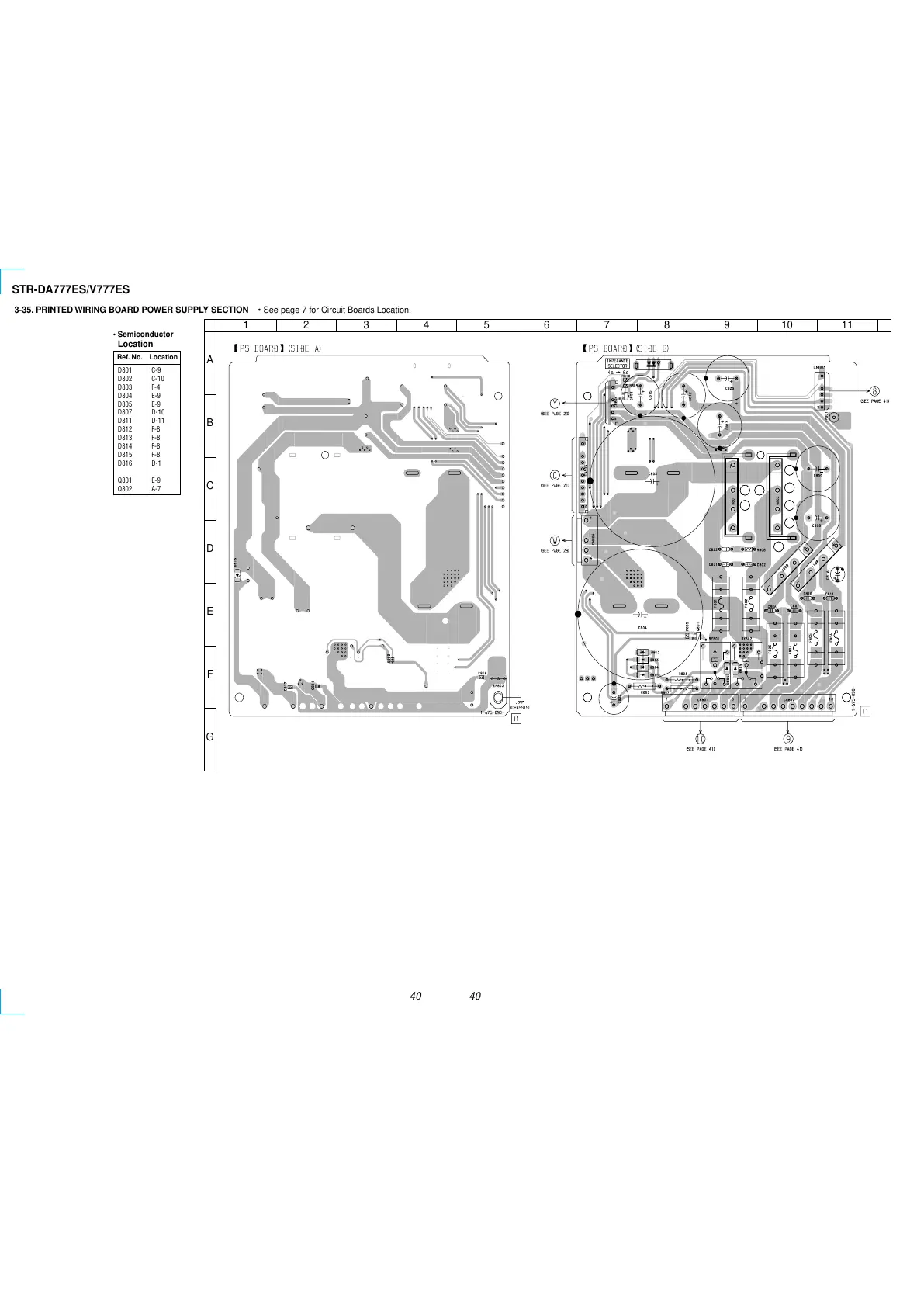

3-35. PRINTED WIRING BOARD POWER SUPPLY SECTION • See page 7 for Circuit Boards Location.
12
A
B
C
D
E
F
G
34567891011
Ref. No. Location
D801 C-9
D802 C-10
D803 F-4
D804 E-9
D805 E-9
D807 D-10
D811 D-11
D812 F-8
D813 F-8
D814 F-8
D815 F-8
D816 D-1
Q801 E-9
Q802 A-7
• Semiconductor
Location
