Sony STR-DA777ES - Electrical Adjustment Procedures

6
SECTION 2
ADJUSTMENT
RV4101
BIAS
BIAS BOARD
RV4101
BIAS
BIAS BOARD
RV4101
BIAS
BIAS BOARD
RV4101
BIAS
BIAS BOARD
RV4101
BIAS
BIAS BOARD
AMP BOARD
CN4153 CN4203 CN4103
CN4353CN4303

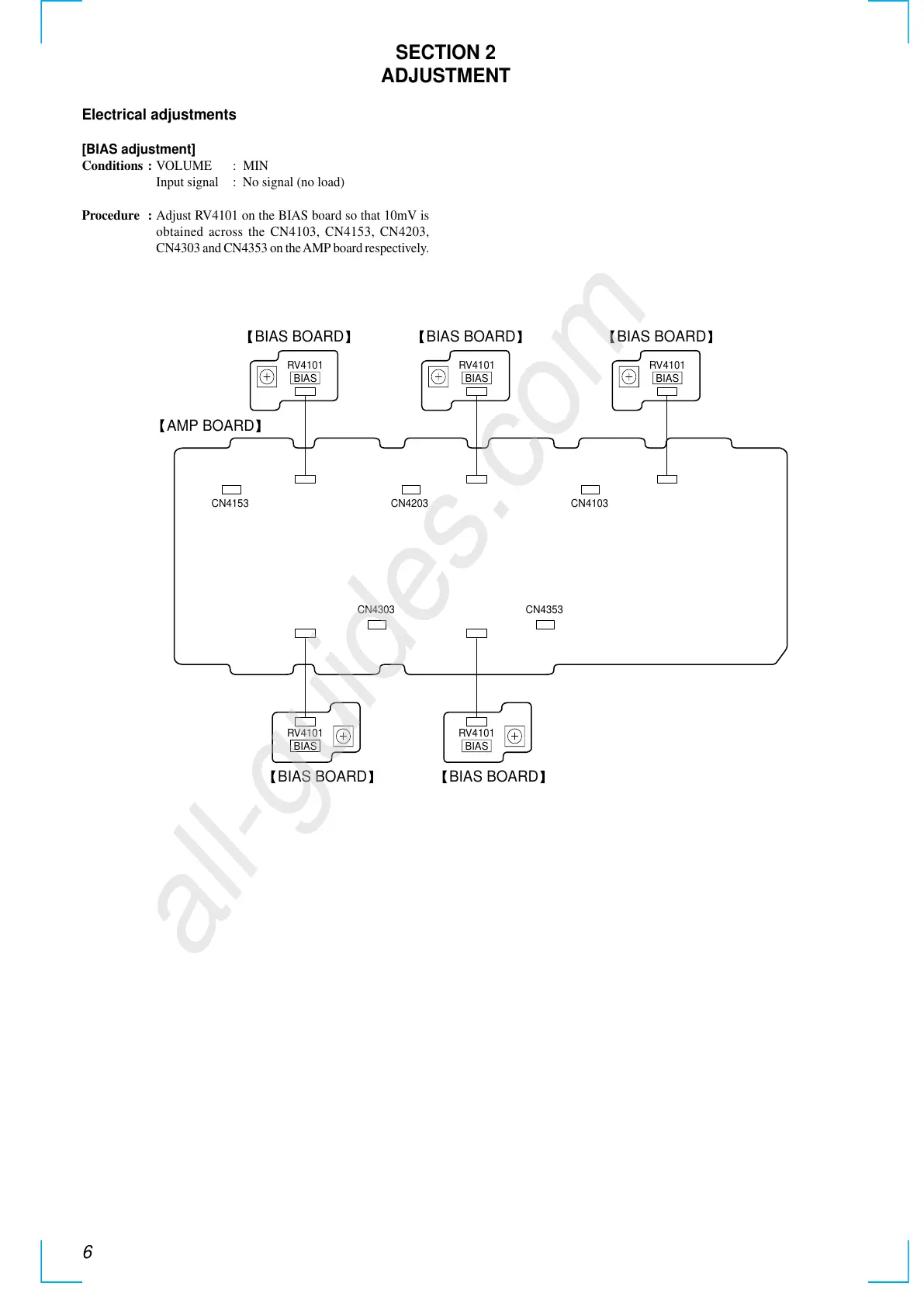

Electrical adjustments
[BIAS adjustment]
Conditions : VOLUME : MIN
Input signal : No signal (no load)
Procedure : Adjust RV4101 on the BIAS board so that 10mV is
obtained across the CN4103, CN4153, CN4203,
CN4303 and CN4353 on the AMP board respectively.
