Sony STR-DA777ES - Back Panel Section

56
a
b
a
b
#3
supplied with J1601
MY, SP, AUS, E, PX MODEL
E, PX
E, PX MODEL
US, CND MODEL
CH MODEL
J1601
#5
164
162
163
161
160
156
158
151
152
153
159
168
TM1401
166
173
167
167
167
169
169
169
157
157
165
170
171
172
154
155
169
not supplied

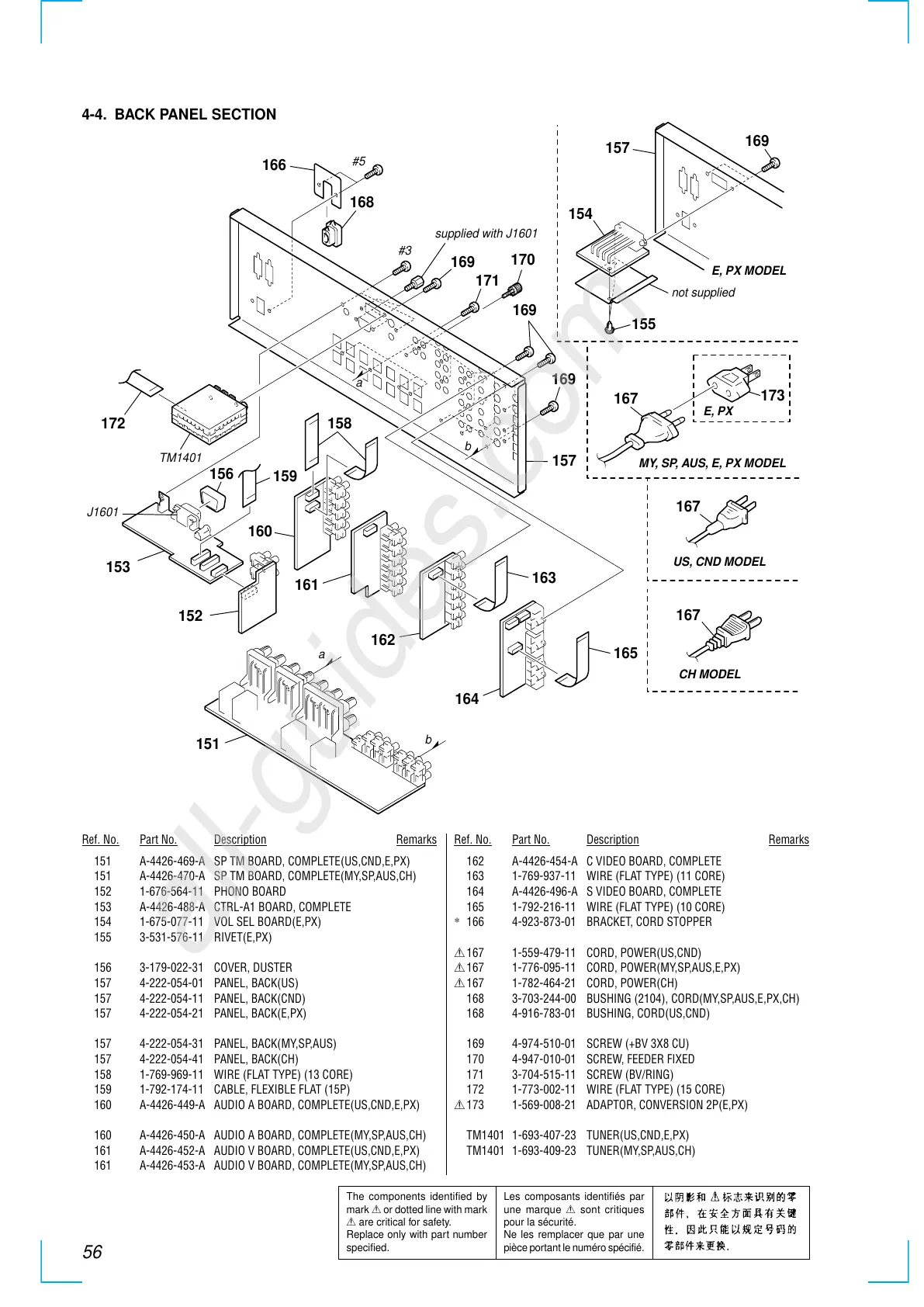

4-4. BACK PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
151 A-4426-469-A SP TM BOARD, COMPLETE(US,CND,E,PX)
151 A-4426-470-A SP TM BOARD, COMPLETE(MY,SP,AUS,CH)
152 1-676-564-11 PHONO BOARD
153 A-4426-488-A CTRL-A1 BOARD, COMPLETE
154 1-675-077-11 VOL SEL BOARD(E,PX)
155 3-531-576-11 RIVET(E,PX)
156 3-179-022-31 COVER, DUSTER
157 4-222-054-01 PANEL, BACK(US)
157 4-222-054-11 PANEL, BACK(CND)
157 4-222-054-21 PANEL, BACK(E,PX)
157 4-222-054-31 PANEL, BACK(MY,SP,AUS)
157 4-222-054-41 PANEL, BACK(CH)
158 1-769-969-11 WIRE (FLAT TYPE) (13 CORE)
159 1-792-174-11 CABLE, FLEXIBLE FLAT (15P)
160 A-4426-449-A AUDIO A BOARD, COMPLETE(US,CND,E,PX)
160 A-4426-450-A AUDIO A BOARD, COMPLETE(MY,SP,AUS,CH)
161 A-4426-452-A AUDIO V BOARD, COMPLETE(US,CND,E,PX)
161 A-4426-453-A AUDIO V BOARD, COMPLETE(MY,SP,AUS,CH)
162 A-4426-454-A C VIDEO BOARD, COMPLETE
163 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
164 A-4426-496-A S VIDEO BOARD, COMPLETE
165 1-792-216-11 WIRE (FLAT TYPE) (10 CORE)
* 166 4-923-873-01 BRACKET, CORD STOPPER
0167 1-559-479-11 CORD, POWER(US,CND)
0167 1-776-095-11 CORD, POWER(MY,SP,AUS,E,PX)
0167 1-782-464-21 CORD, POWER(CH)
168 3-703-244-00 BUSHING (2104), CORD(MY,SP,AUS,E,PX,CH)
168 4-916-783-01 BUSHING, CORD(US,CND)
169 4-974-510-01 SCREW (+BV 3X8 CU)
170 4-947-010-01 SCREW, FEEDER FIXED
171 3-704-515-11 SCREW (BV/RING)
172 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)
0173 1-569-008-21 ADAPTOR, CONVERSION 2P(E,PX)
TM1401 1-693-407-23 TUNER(US,CND,E,PX)
TM1401 1-693-409-23 TUNER(MY,SP,AUS,CH)
