Sony STR-DA777ES - Schematic Diagram Display Section(2;2)

STR-DA777ES/V777ES
3535

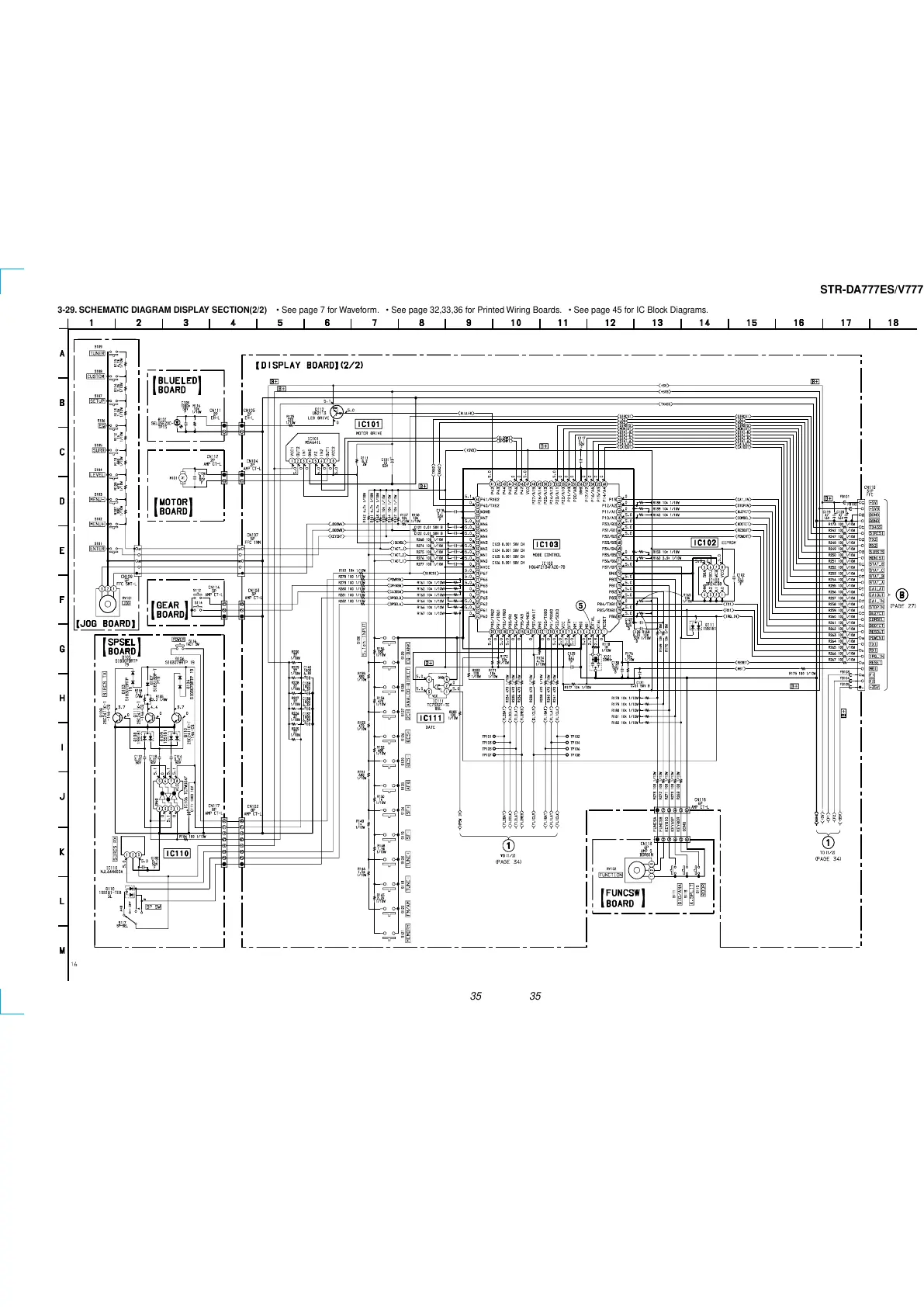

3-29. SCHEMATIC DIAGRAM DISPLAY SECTION(2/2) • See page 7 for Waveform. • See page 32,33,36 for Printed Wiring Boards. • See page 45 for IC Block Diagrams.
