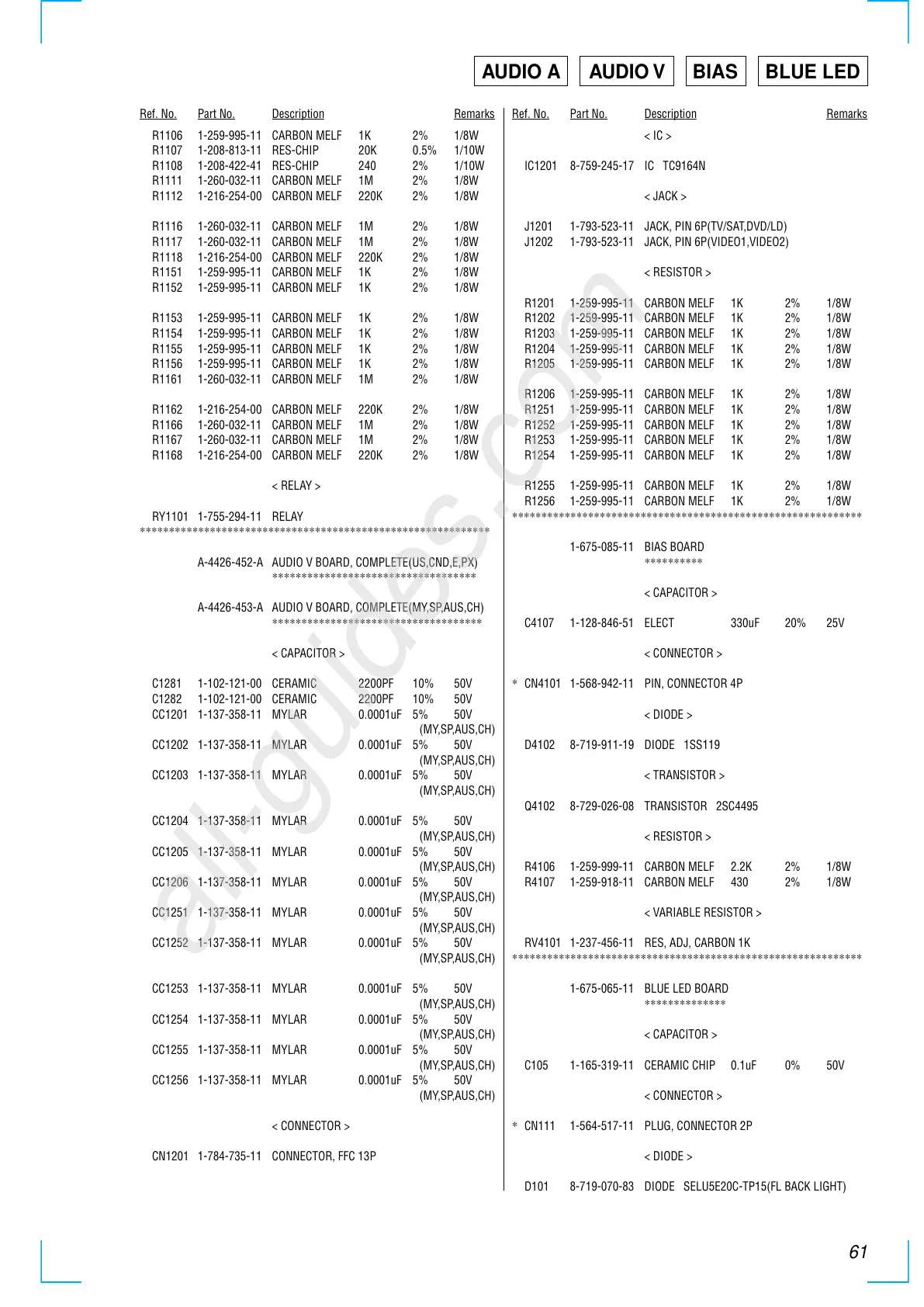

Sony STR-DA777ES - Page 61

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
61
R1106 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1107 1-208-813-11 RES-CHIP 20K 0.5% 1/10W
R1108 1-208-422-41 RES-CHIP 240 2% 1/10W
R1111 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1112 1-216-254-00 CARBON MELF 220K 2% 1/8W
R1116 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1117 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1118 1-216-254-00 CARBON MELF 220K 2% 1/8W
R1151 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1152 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1153 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1154 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1155 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1156 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1161 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1162 1-216-254-00 CARBON MELF 220K 2% 1/8W
R1166 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1167 1-260-032-11 CARBON MELF 1M 2% 1/8W
R1168 1-216-254-00 CARBON MELF 220K 2% 1/8W
< RELAY >
RY1101 1-755-294-11 RELAY
************************************************************
A-4426-452-A AUDIO V BOARD, COMPLETE(US,CND,E,PX)
***********************************
A-4426-453-A AUDIO V BOARD, COMPLETE(MY,SP,AUS,CH)
************************************
< CAPACITOR >
C1281 1-102-121-00 CERAMIC 2200PF 10% 50V
C1282 1-102-121-00 CERAMIC 2200PF 10% 50V
CC1201 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1202 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1203 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1204 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1205 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1206 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1251 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1252 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1253 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1254 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1255 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
CC1256 1-137-358-11 MYLAR 0.0001uF 5% 50V
(MY,SP,AUS,CH)
< CONNECTOR >
CN1201 1-784-735-11 CONNECTOR, FFC 13P
< IC >
IC1201 8-759-245-17 IC TC9164N
< JACK >
J1201 1-793-523-11 JACK, PIN 6P(TV/SAT,DVD/LD)
J1202 1-793-523-11 JACK, PIN 6P(VIDEO1,VIDEO2)
< RESISTOR >
R1201 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1202 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1203 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1204 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1205 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1206 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1251 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1252 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1253 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1254 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1255 1-259-995-11 CARBON MELF 1K 2% 1/8W
R1256 1-259-995-11 CARBON MELF 1K 2% 1/8W
************************************************************
1-675-085-11 BIAS BOARD
**********
< CAPACITOR >
C4107 1-128-846-51 ELECT 330uF 20% 25V
< CONNECTOR >
* CN4101 1-568-942-11 PIN, CONNECTOR 4P
< DIODE >
D4102 8-719-911-19 DIODE 1SS119
< TRANSISTOR >
Q4102 8-729-026-08 TRANSISTOR 2SC4495
< RESISTOR >
R4106 1-259-999-11 CARBON MELF 2.2K 2% 1/8W
R4107 1-259-918-11 CARBON MELF 430 2% 1/8W
< VARIABLE RESISTOR >
RV4101 1-237-456-11 RES, ADJ, CARBON 1K
************************************************************
1-675-065-11 BLUE LED BOARD
**************
< CAPACITOR >
C105 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V
< CONNECTOR >
* CN111 1-564-517-11 PLUG, CONNECTOR 2P
< DIODE >
D101 8-719-070-83 DIODE SELU5E20C-TP15(FL BACK LIGHT)
AUDIO V BIASAUDIO A BLUE LED
