Sony STR-DA7ES - Section 4 Disassembly; 4-1. Case

12
STR-DA4ES/DA7ES/VA333ES
Note: Follow the disassembly procedure in the numerical order given.
4-1. CASE
SECTION 4
DISASSEMBLY

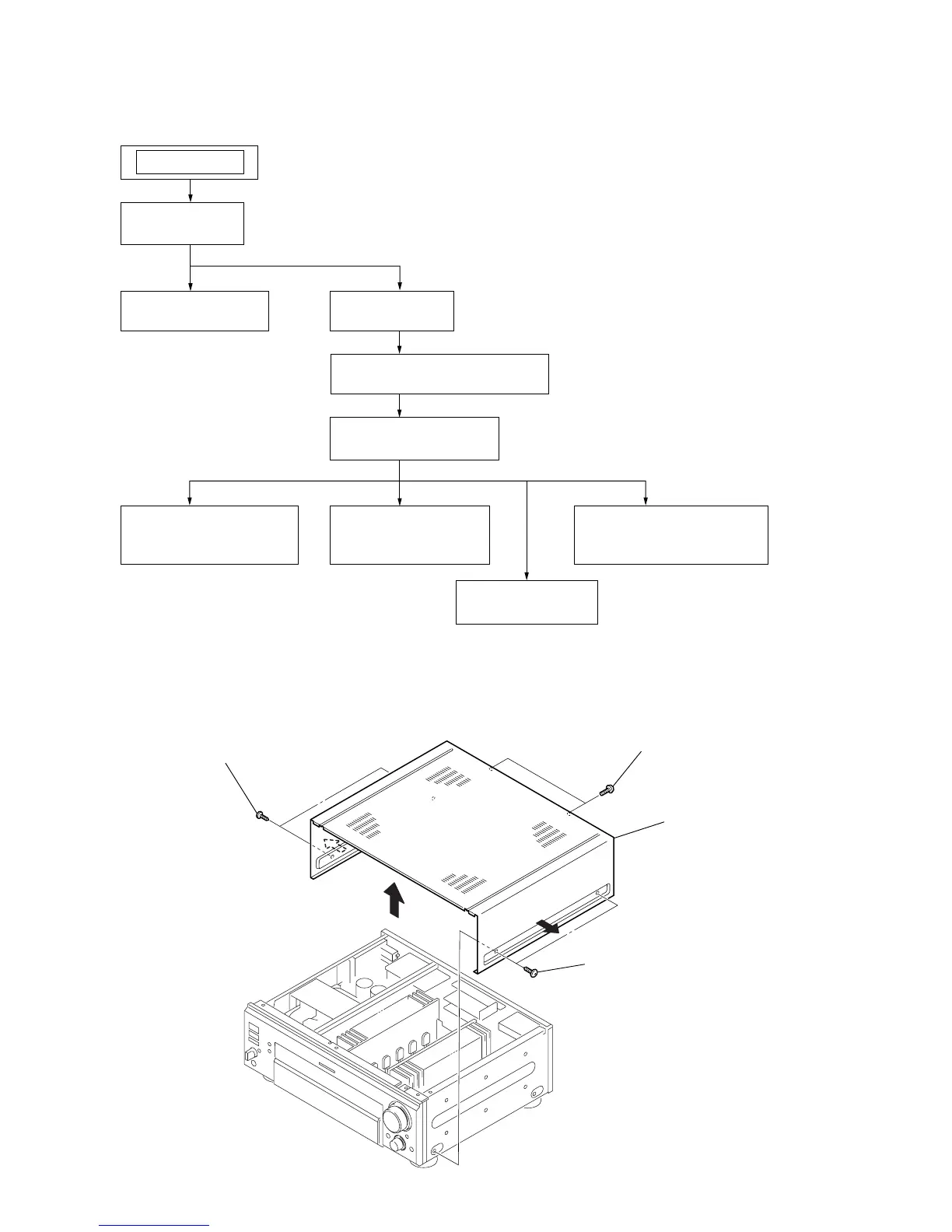

Note: This set can be disassemble according to the following sequence.
4-1. CASE
(Page 12)
4-2. PANEL ASSY
(Page 13)
SET
4-3. BRACKET
(Page 13)
4-4. BACK PANEL SECTION
(Page 14)
4-5. DIGITAL BOARD
(Page 14)
4-6. INPUT BOARD,
E-VOL BOARD
(Page 15)
4-7. A-CLASS BOARD,
AMP BOARD
(Page 15)
4-8. AC BOARD,
CIS POWER BOARD
(Page 16)
4-9. DC BOARD
(Page 16)
1 two screws
(TP), flat head
2 two screws
(TP), flat hea
d
3 two screws
(TP), flat head
4 case
