Sony STR-DA7ES - 7-6. Chassis Section (2)

77
STR-DA4ES/DA7ES/VA333ES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

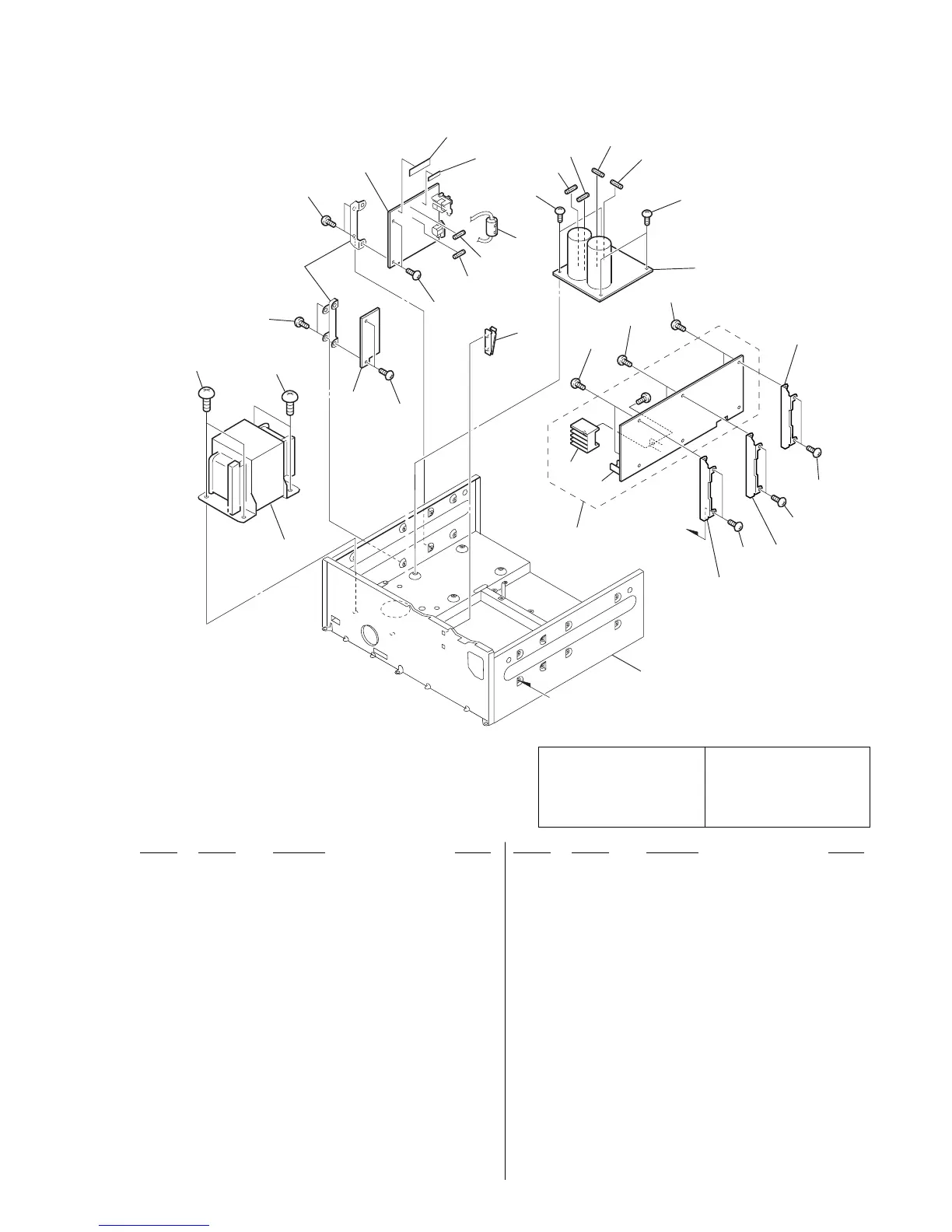

7-6. CHASSIS SECTION (2)
T901
F801
F802
F806
F901
F902
F805
not supplied
not supplied
not
supplied
not
supplied
not supplied
#5
251
251
253
253
256
257
253
253
253
253
253
253
253
253
253
253
252
254
262
255
258
259
260
261
A
A
251 4-394-596-01 SCREW (M5), TERMINAL
252 A-4729-692-A CIS POWER BOARD, COMPLETE (DA4ES/DA7ES)
253 4-974-510-11 SCREW (+BV 3X8 CU)
* 254 3-703-044-26 LABEL, CAUTION (DA4ES/DA7ES)
255 A-4728-908-A AC BOARD, COMPLETE (AEP)
255 A-4728-949-A AC BOARD, COMPLETE (DA4ES/DA7ES)
255 A-4728-966-A AC BOARD, COMPLETE (KR)
255 A-4728-985-A AC BOARD, COMPLETE (TW)
256 1-469-241-11 CORE, FERRITE (RFC-8 BK)
257 A-4728-899-A DC BOARD, COMPLETE (VA333ES)
257 A-4728-927-A DC BOARD, COMPLETE (DA4ES/DA7ES)
258 A-4728-884-A DIGITAL BOARD, COMPLETE (DA4ES)
258 A-4728-897-A DIGITAL BOARD, COMPLETE (AEP)
258 A-4728-923-A DIGITAL BOARD, COMPLETE (DA7ES)
258 A-4728-962-A DIGITAL BOARD, COMPLETE (TW,KR)
* 259 3-309-144-21 HEAT SINK
260 4-242-610-11 HEAT SINK (10) (DA4ES/DA7ES)
261 4-308-119-02 HOLDER, WIRE
262 3-701-946-31 LABEL, FUSE RATING (KR,TW)
0 F801 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V)
0 F802 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V)
0 F805 1-532-464-51 FUSE, TIME-LAG (T2.5AL/250V) (VA333ES)
0 F805 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(4A/125V) (DA4ES/DA7ES)
0 F806 1-532-464-51 FUSE, TIME-LAG (T2.5AL/250V) (VA333ES)
0 F806 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(4A/125V) (DA4ES/DA7ES)
0 F901 1-532-325-00 FUSE, TIME-LAG (T6.3AL/250V) (AEP,KR)
0 F901 1-576-379-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(15A/250V) (US,CND,TW)
0 F902 1-532-464-51 FUSE, TIME-LAG (T2.5AL/250V) (AEP)
0 T901 1-437-270-11 TRANSFORMER, POWER (US)
0 T901 1-437-271-11 TRANSFORMER, POWER (DA4ES:CND)
0 T901 1-437-272-11 TRANSFORMER, POWER (TW)
0 T901 1-437-274-11 TRANSFORMER, POWER (AEP,KR)
0 T901 1-437-872-11 TRANSFORMER, POWER (DA7ES:CND)
#5 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
