Sony STR-DA7ES - 7-3. Front Panel Section (2)

74
STR-DA4ES/DA7ES/VA333ES

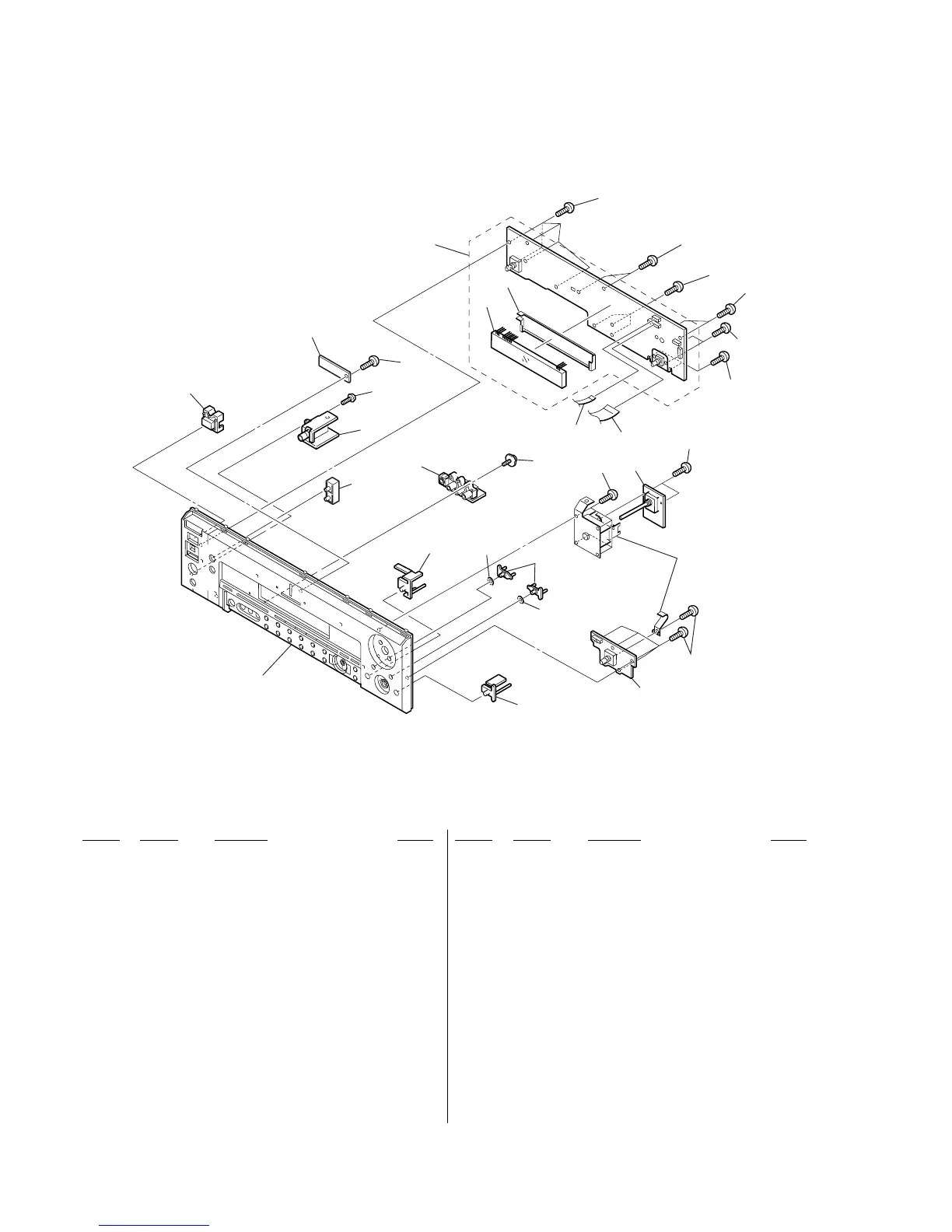

7-3. FRONT PANEL SECTION (2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
109
111
110
112
112
112
112
112
112
112
112
112
112
112
108
106
105
107
117
104
103
118
102
103
not
supplied
FL101
113
114
115
116
101 X-4954-795-1 BASE (B) ASSY, PANEL (BLACK)...(BLACK)
(DA7ES)
101 X-4954-796-1 BASE (B) ASSY, PANEL (BLACK)...(BLACK)
(DA4ES)
101 X-4954-797-1 BASE (N) ASSY, PANEL (GOLD)...(GOLD)
(AEP:GOLD)
101 X-4954-799-1 BASE (B) ASSY, PANEL (BLACK)...(BLACK)
(AEP:BLACK)
101 X-4954-800-1 BASE (N) ASSY, PANEL (GOLD)...(GOLD)
(TW,KR)
102 4-228-849-01 BUTTON (E) (BLACK)...(BLACK)
102 4-228-849-11 BUTTON (E) (GOLD)...(GOLD)
103 4-228-856-01 PLATE (BUTTON F), SHADING
104 4-228-850-01 BUTTON (F)
105 4-228-848-01 BUTTON (D) (BLACK)...(BLACK)
105 4-228-848-11 BUTTON (D) (GOLD)...(GOLD)
106 1-685-490-11 VIDEO3 BOARD
107 4-933-134-11 SCREW (+PTPWH M2.6X8)
108 X-4953-779-1 BUTTON (G) (B) ASSY (BLACK)...(BLACK)
108 X-4953-780-1 BUTTON (G) (N) ASSY (GOLD)...(GOLD)
109 4-998-592-01 BUTTON (POWER) (BLACK)...(BLACK)
109 4-998-592-12 BUTTON (POWER) (GOLD)...(GOLD)
110 1-685-488-11 HP BOARD
111 1-685-491-11 LED BOARD
112 4-951-620-01 SCREW (2.6X8), +BVTP
113 A-4728-901-A DISPLAY BOARD, COMPLETE (VA333ES)
113 A-4728-931-A DISPLAY BOARD, COMPLETE (DA4ES/DA7ES)
114 4-228-836-01 HOLDER, FL TUBE
115 1-773-162-11 WIRE (FLAT TYPE) (21 CORE)
116 1-773-021-11 WIRE (FLAT TYPE) (15 CORE)
117 1-685-489-11 VOLUME BOARD
118 1-685-487-11 FUNCTION BOARD
FL101 1-518-747-11 INDICATOR TUBE, FLUORESCENT
