Sony STR-DA7ES - 7-5. Chassis Section (1)

76
STR-DA4ES/DA7ES/VA333ES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

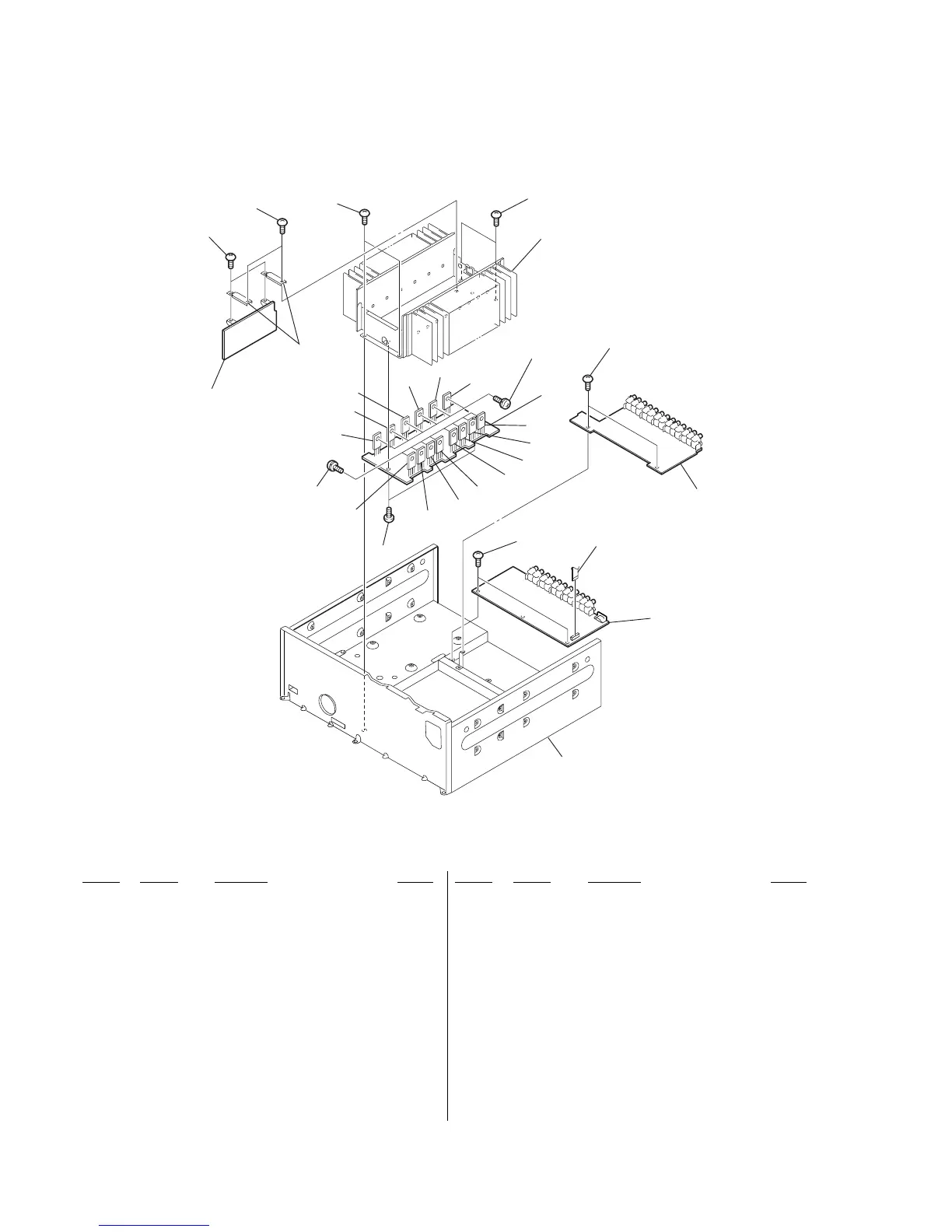

7-5. CHASSIS SECTION (1)
not supplied
IC502
IC503
IC654
IC655
IC552
IC553
IC703
IC702
IC653
IC652
IC603
IC602
IC753
IC752
not supplied
not supplied
204
206
204
203
203
203
203
203
203
203
207
205
202
201
201 1-769-971-11 WIRE (FLAT TYPE) (13 CORE)
202 A-4728-878-A E-VOL BOARD, COMPLETE (DA4ES)
202 A-4728-891-A E-VOL BOARD, COMPLETE (VA333ES)
202 A-4728-911-A E-VOL BOARD, COMPLETE (DA7ES)
203 4-974-510-11 SCREW (+BV 3X8 CU)
204 3-905-609-11 SCREW (TRANSISTOR)
205 A-4728-907-A AMP BOARD, COMPLETE (VA333ES)
205 A-4728-947-A AMP BOARD, COMPLETE (DA4ES/DA7ES)
206 A-4729-679-A A-CLASS BOARD, COMPLETE (DA4ES/DA7ES)
206 A-4729-681-A A-CLASS BOARD, COMPLETE (VA333ES)
207 A-4728-880-A INPUT BOARD, COMPLETE (DA4ES)
207 A-4728-893-A INPUT BOARD, COMPLETE (VA333ES)
207 A-4728-915-A INPUT BOARD, COMPLETE (DA7ES)
IC502 8-749-014-72 IC SAP15N
IC503 8-749-014-73 IC SAP15P
IC552 8-749-014-72 IC SAP15N
IC553 8-749-014-73 IC SAP15P
IC602 8-749-014-72 IC SAP15N
IC603 8-749-014-73 IC SAP15P
IC652 8-749-014-72 IC SAP15N
IC653 8-749-014-73 IC SAP15P
IC654 8-749-014-72 IC SAP15N
IC655 8-749-014-73 IC SAP15P
IC702 8-749-014-72 IC SAP15N
IC703 8-749-014-73 IC SAP15P
IC752 8-749-014-72 IC SAP15N
IC753 8-749-014-73 IC SAP15P
